High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250
Specifications
video outgoing-inspection :
Provided
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Center Bore Diameter(mm) :
90H7
Precision :
15~20Second
Condition :
New
MOQ :
1
Hole Diameter(mm) :
90
repeat positioning accuracy :
4second
Place of Origin :
Guangdong, China
Through-Hole Diameter(mm) :
50
material :
steel
Rotary Table Diameter :
250
Allowable workpiece Diameter(mm) :
420
Applicable Industries :
hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
warranty :
3 Years
usage :
milling or drilling machine
Brand Name :
Juzhuo
Brand :
JUZHUO
Name :
4th Axis Rotary Table
machinery test report :
Provided
weight (kg) :
150
Core Components :
PLC, Engine, Bearing, Gearbox, motor, Pressure vessel, Gear, Pump
Description
Hot Sale High Accuracy 4th Axis Rotary Table/Tilting Rotary Table NCT-250
Product Overview

The NCT-250 High Accuracy 4th Axis Rotary Table/Tilting Rotary Table delivers exceptional precision and durability for demanding industrial applications. Engineered with advanced features to ensure reliable performance in heavy-duty machining operations.

Key Features
  • High Precision Roller Cam Unit for superior accuracy
  • Heavy Duty Oil Hydraulic Lock System for secure positioning
  • YRT Radial Bearings providing excellent cutting resistance
  • Large Aperture design for versatile applications
  • High Rigidity construction for stable performance
  • CNC Indexable Rotary Table for automated operations

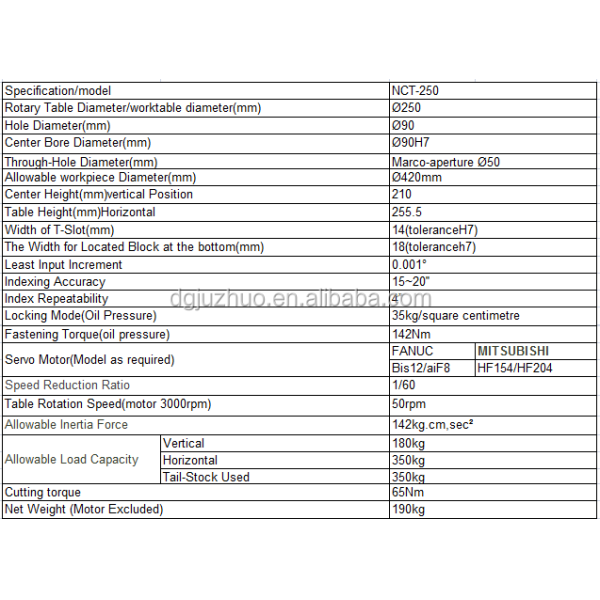

Technical Documentation

Detailed technical specifications and performance data are available in the following documentation:

High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250 High Accuracy 4th Axis Rotary Table , Precision CNC Tilting Rotary Table NCT-250

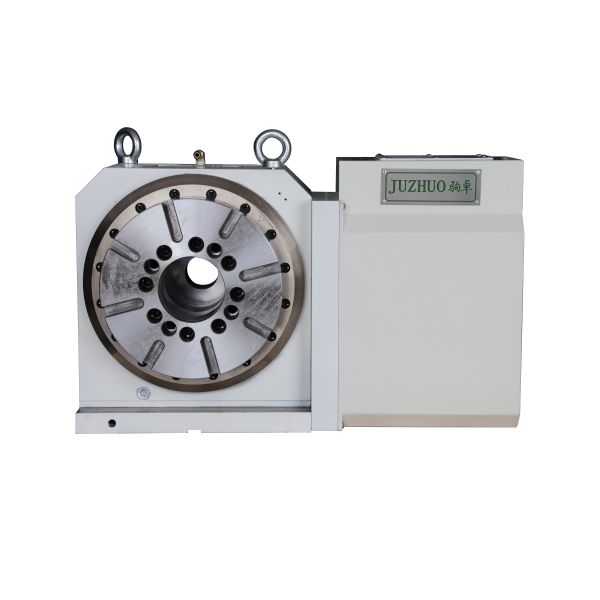

Note: All images show the NCT-250 High Accuracy 4th Axis Rotary Table from various angles and applications.
