Specifications
division precision :
+/-10
Structure :
Worm gear
Place of Origin :
Guangdong, China
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine
Horizontal loading capacity :
350kg
usage :
milling or drilling machine
MOQ :
1
Brand Name :
Juzhuo
Rotary Table Diameter :
320
weight (kg) :
100
Center through hole :
90H7
video outgoing-inspection :
Provided
Center height(mm) :
210
machinery test report :
Provided
vertical loading capacity :
150Kg
warranty :
3 Years
material :
steel
Description

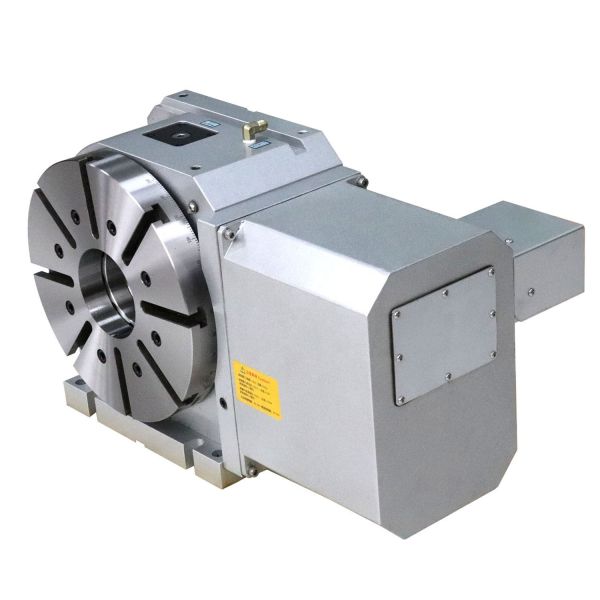

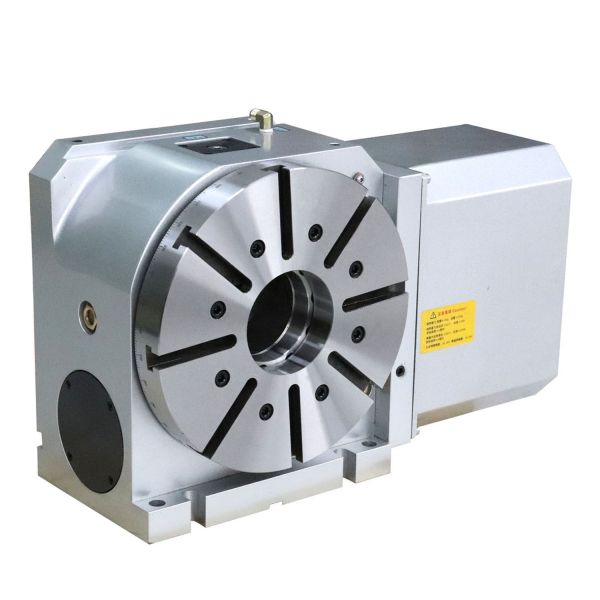

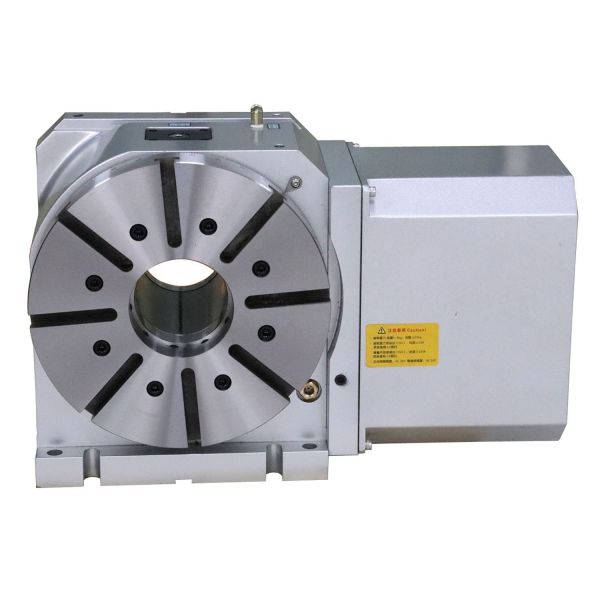

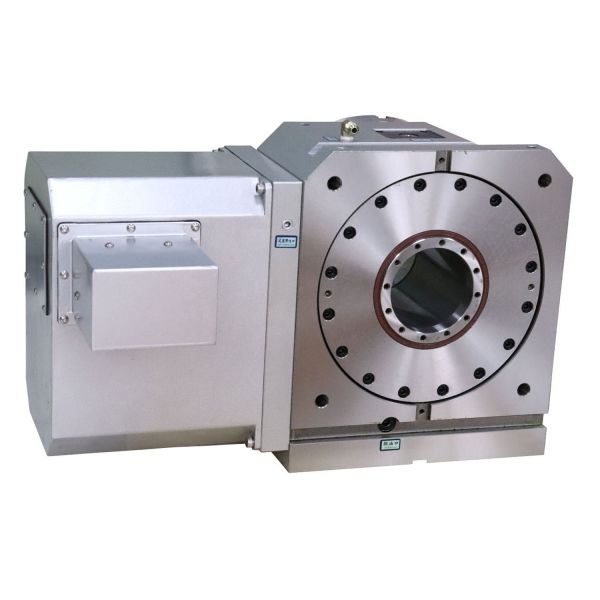

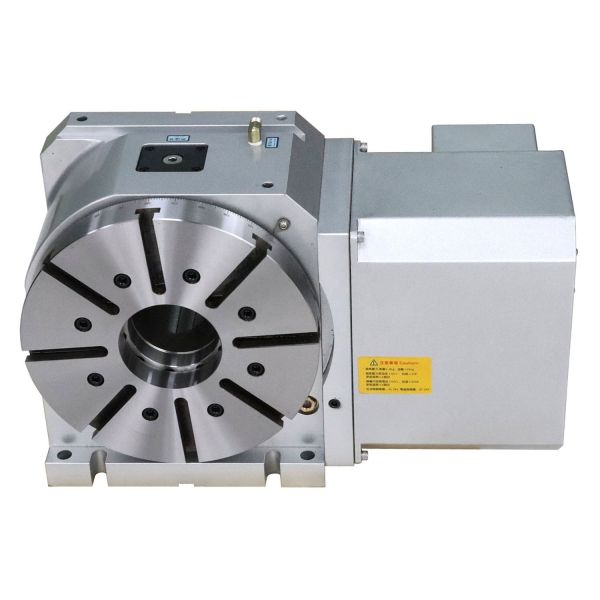

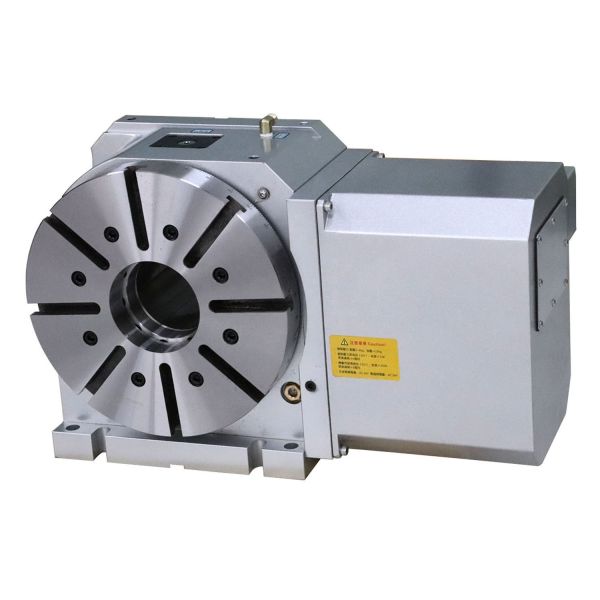

4th/5th Axis CNC Rotary Table D-320
Product Overview

The D-320 4th/5th Axis CNC Rotary Table delivers high-precision rotational positioning for advanced machining applications, supporting both 4-axis and 5-axis configurations.

Key Features
  • Utilizes imported precision dual-lead worm gear system for exceptional transmission accuracy
  • Turbine assembly manufactured from aluminum bronze alloy for superior performance and durability
  • Oversized turbine design (nearly matching disc dimensions) provides 30-50% better steel rigidity compared to similar products
  • Cross roller bearing construction enhances rotation accuracy and structural rigidity
  • Maintains long-term processing stability and minimizes workpiece defects
Technical Specifications

Detailed technical parameters and performance specifications:

4th 5th Axis Cnc Rotary Table Rotary Table Cnc Rotary Table 4 Axis 5 Axis D-320 4th 5th Axis Cnc Rotary Table Rotary Table Cnc Rotary Table 4 Axis 5 Axis D-320 4th 5th Axis Cnc Rotary Table Rotary Table Cnc Rotary Table 4 Axis 5 Axis D-320 4th 5th Axis Cnc Rotary Table Rotary Table Cnc Rotary Table 4 Axis 5 Axis D-320 4th 5th Axis Cnc Rotary Table Rotary Table Cnc Rotary Table 4 Axis 5 Axis D-320
