Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Powdered Online Conveyor Weighing Packer Machine System Equipment JZ-W1200g
Specifications
waterproof :
IP66
HBM load cell :
(original from Germany)
Power Supply :
220V
display type :
10" color touch screen
MOQ :
1
machine material :
SUS 304
Model Number :
JZ-W1200g
accuracy :
+/-0.5grams
conveyor belt size :
400mmL*220mm W
conveyor speed :
13~96m/minutes
Certification :
CE,ISO9001
Brand Name :
juzhuo
warranty :
1year
customized support :
OEM, ODM, OBM
Place of Origin :
Guangdong, China
Description
Online Powder Conveyor Weighing Racker Machine JZ-W1200g

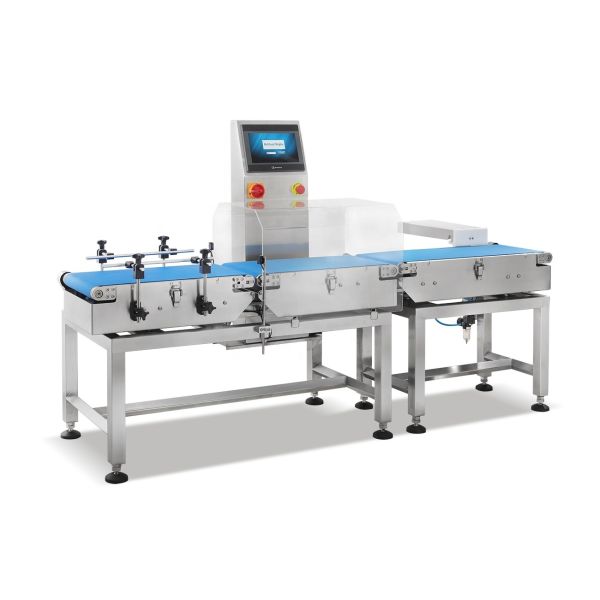

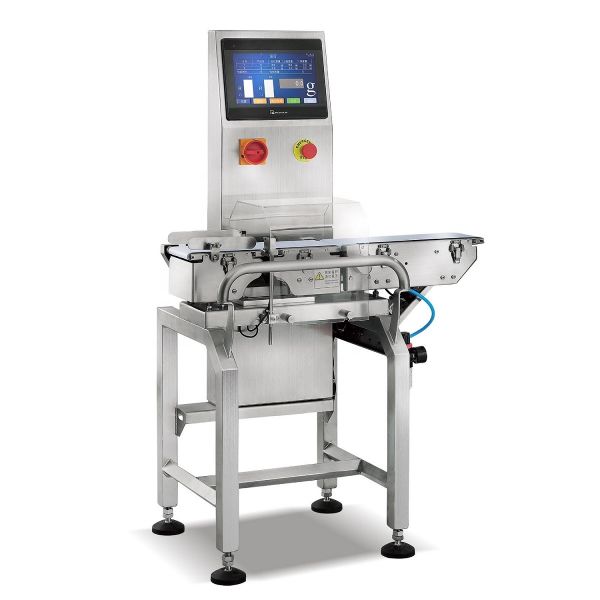

Powder online conveyor weighing racker machine JZ-W1200g is designed for automated weight verification and quality control in industrial packaging operations.
Application

The Automatic Check Weigher JZ-W1200g is primarily used to verify whether individual package weights conform to preset specifications. The system automatically removes overweight and underweight products using various rejection devices, while qualified bags proceed to the next equipment in the production line.

Features
  • PLC and 10" color touch screen with intelligent compact design
  • Automatic program setting adjustment for enhanced stability and ease of operation
  • HBM load cell technology (original from Germany) ensures high accuracy and stability
  • Solid SUS304 stainless steel construction for stable performance and precise weighing
  • Multiple rejection options: reject arm, air blast, or pneumatic pusher
  • Tool-free belt disassembly for easy cleaning and maintenance
  • Emergency switch installation for user-friendly operation
  • Arm device display for clear production status monitoring (optional)
  • Capability to record up to 10 different product parameters
Specifications
Model JZ-W1200g
Control System 10" color touch screen
Weighing Range 10-1200 grams
Conveyor Speed 13-96 meters/min
Maximum Throughput Capacity 210 bags/min
Accuracy ±0.5 grams
Product Size 60<L<300mm; 30<W<220mm; 10<H<200mm
Minimum Scale 0.1 grams
Weigh Belt 400L*220W mm
Conveyor Height 750mm±50mm
Reject System Reject Arm/Air Blast/Pneumatic Pusher/Divided-flow Style
Waterproof Rating IP66
Power Supply 220V/50HZ or 60HZ Single Phase
Machine Material 304 stainless steel
Interface Weight transmission to ink-jet printer (requires customer protocol)
Packing Dimension 1600L*400W*1510H mm
Gross Weight 200KG
Optional Components
  • Network data management software
  • Front feeding FBC feedback control software
  • Printer
  • Lamp
