Specifications
waterproof :
IP66
accuracy :
+/-5grams
conveyor speed :
13~78m/minutes
HBM load cell :
(original from Germany)
MOQ :
1
machine material :
SUS304
Power Supply :
220V
Model Number :
JZ-W25kg
Place of Origin :
Guangdong, China
weighing belt size :
600mmL*400Wmm
display type :
10" color touch screen
Description

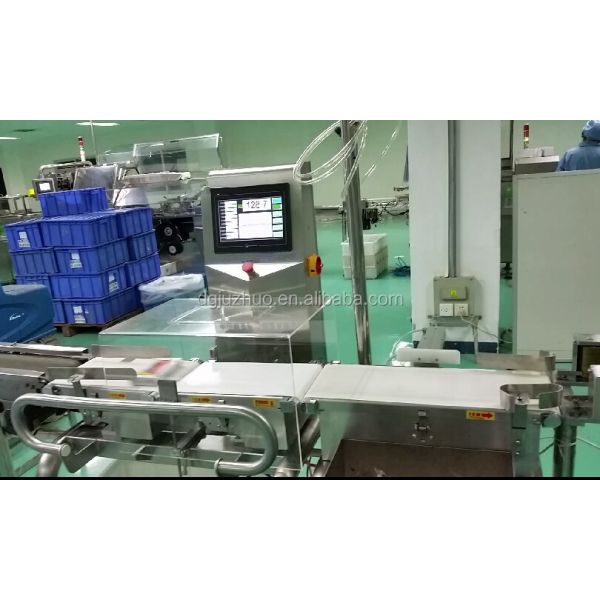

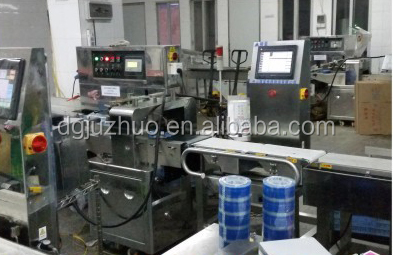

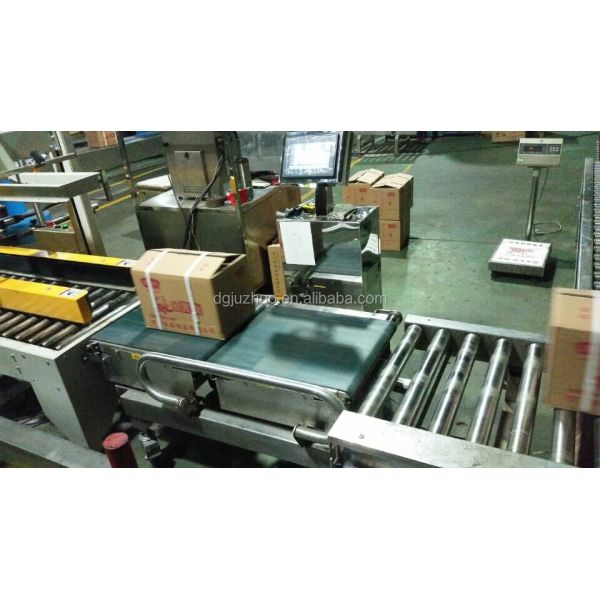

Manufacturer Checkweigher With Rejection JZ-W25kg

The Checkweigher with rejection JZ-W25kg is designed to verify whether individual package weights conform to preset specifications, automatically removing overweight and underweight products through various rejection mechanisms. Qualified packages proceed to subsequent equipment.

Application

This weighing machine checks single pack weight compliance with preset standards and automatically removes non-conforming products using multiple rejection methods.

Features
  • PLC and 10" color touch screen with intelligent compact design
  • Auto program setting adjustment for enhanced stability and ease of operation
  • HBM load cell (original from Germany) ensures high accuracy and stability
  • Solid SUS304 structure provides stable performance and precise weighing
  • Multiple rejection options: reject arm, air blast, or pneumatic pusher
  • Tool-free belt disassembly for easy cleaning
  • Emergency switch installation for user-friendly operation
  • Optional arm device for clear production status display
  • Capability to record up to 10 different product parameters
Specifications
Model JZ-W25kg
Control System 10" color touch screen
Weighing Range 50-25000 grams
Conveyor Speed 13-78 meter/min
Maximum Throughput Capacity 500 bags/min
Accuracy ±5 grams
Product Size 60<L<420mm; 30<W<380mm; 10<H<430mm
Minimum Scale 0.5 grams
Weigh Belt 600mm L * 400mm W
Conveyor Height 750mm ±50mm
Auto Rejector System Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating IP66
Power Supply 220V/50HZ or 60HZ Single Phase
Machine Material 304 Stainless Steel
Interface Weight transmission to ink-jet printer (customer provides protocol)
Packing Dimension 1900mm L * 550mm W * 1600mm H
Gross Weight 300 KG
Optional Components
  • Network data management software
  • Front feeding FBC feedback control software
  • Printer
  • Lamp
Product Gallery
Socketed Checkweigher Machine Rejection System Weighing Equipment JZ-W25kg Socketed Checkweigher Machine Rejection System Weighing Equipment JZ-W25kg Socketed Checkweigher Machine Rejection System Weighing Equipment JZ-W25kg Socketed Checkweigher Machine Rejection System Weighing Equipment JZ-W25kg Socketed Checkweigher Machine Rejection System Weighing Equipment JZ-W25kg Socketed Checkweigher Machine Rejection System Weighing Equipment JZ-W25kg Socketed Checkweigher Machine Rejection System Weighing Equipment JZ-W25kg Socketed Checkweigher Machine Rejection System Weighing Equipment JZ-W25kg
