Specifications
Machine material :
SUS304
Power Supply :
220V
accuracy :
+/-0.1 grams
Model Number :
JZ-W100g
sorting speed :
20bag/minutes
belt material :
PU
HBM load cell :
(original from Germany)
belt standard :
FDA
waterproof :
IP66
MOQ :
1
display type :
10" color touch screen
Place of Origin :
Guangdong, China
Description

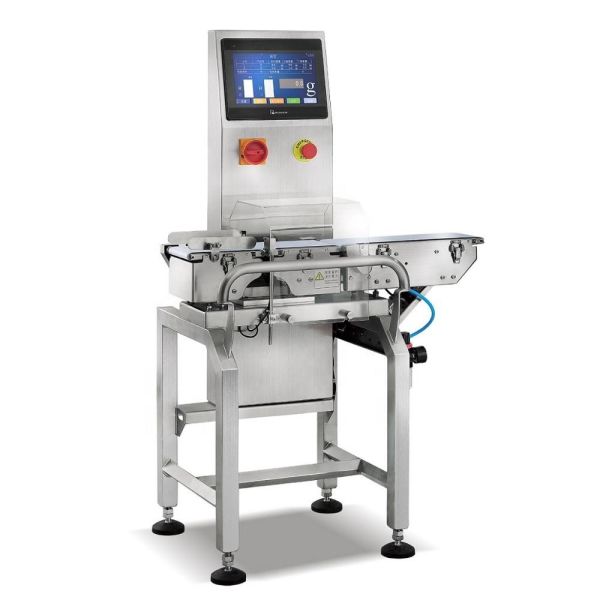

Auto Weight Sorting Machine JZ-W100g - Food Industry Online Conveyor Weighing Scale
Product Overview

The JZ-W100g Auto Weight Sorting Machine is designed for the food industry to automatically check whether single-pack weights conform to preset specifications. This advanced checkweigher system automatically removes overweight and underweight products while qualified bags proceed to the next equipment in your production line.

Key Features
  • PLC with 10" color touch screen interface
  • Intelligent compact design construction
  • Automatic program setting adjustment for enhanced stability and ease of operation
  • HBM load cell technology (original from Germany) ensures high accuracy and stability
  • Solid SUS304 stainless steel structure for stable performance and precise weighing
  • Multiple reject options: reject arm, air blast, or pneumatic pusher
  • Tool-free belt disassembly for easy cleaning and maintenance
  • Emergency switch installation for user-friendly operation
  • Optional arm device for clear production situation display
  • Capable of recording up to 10 different product parameters
Technical Specifications
Specification Details
Model JZ-W100g
Control System 10" color touch screen
Weighing Range 3-100 grams
Sorting Speed 60-80 bags/minute
Conveyor Speed 40 m/minute
Accuracy ±0.1 grams
Minimum Scale 0.01 grams
Weigh Belt 300L/400L * 130W mm
Conveyor Height 750 mm ±50 mm
Auto Reject System Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating IP66
Power Supply 220V/50HZ or 60HZ Single Phase
Machine Material 304 Stainless Steel
Interface Weight transmission to ink-jet printer (customer protocol required)
Packing Dimension 1450L * 400W * 1510H mm
Gross Weight 150 kg
Optional Accessories
  • Network data management software
  • Front feeding FBC feedback control software
  • Printer
  • Lamp
Product Images
