Advanced Performance Automated Conveyor Checkweigher Belt Weight Inspection System JZ-W Series

Specifications

display type :

10" color touch screen

accuracy :

+/-10grams

machine material :

SUS304

Model Number :

JZ-W100800

waterproof :

IP66

weighing belt size :

1000L*800W mm

HBM load cell :

(original from Germany)

Brand Name :

JZHUO

Place of Origin :

Guangdong, China

conveyor speed :

3-~15m/minutes

Power Supply :

220V

warranty :

customized support :

OEM

MOQ :

Description

OEM Industrial Check Weigher JZ-W100800

Product Overview

Industrial check weigher with online metal detection and conveyor belt system, model JZ-W100800. This advanced weighing system ensures product quality control through precise weight verification and automated rejection of non-conforming items.

Application

The 100 kg wireless electronic industrial check weigher is designed to verify whether individual package weights conform to preset specifications. The system automatically removes overweight and underweight products using various rejection devices, while qualified packages proceed to the next equipment in the production line.

Key Features

PLC and 10" color touch screen with intelligent compact design
Automatic program setting adjustment for enhanced stability and ease of operation
HBM load cell technology (original from Germany) ensuring high accuracy and stability
Solid SUS304 structure providing stable performance and precise weighing
Multiple rejection options: reject arm, air blast, or pneumatic pusher
Tool-free belt disassembly for easy cleaning and maintenance
Emergency switch installation for user-friendly operation
Optional arm device for clear production status visualization
Capacity to record up to 10 different product parameters

Technical Specifications

Model	JZ-W100800
Control System	10" color touch screen
Weighing Range	1000-100000 grams
Conveyor Speed	3-15 meters/min
Maximum Throughput Capacity	20 bags/min
Accuracy	±10 grams
Minimum Scale	1 gram
Weigh Belt	1000L * 800W mm
Conveyor Height	750mm ±50mm
Auto Rejector System	Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating	IP66
Power Supply	220V/50HZ or 60HZ Single Phase
Machine Material	304 Stainless Steel
Interface	Weight transmission to ink-jet printer (customer provides protocol)
Packing Dimension	2000L * 850W * 1600H mm
Gross Weight	400 KG

Optional Components

Network data management software
Front feeding FBC feedback control software
Printer
Lamp

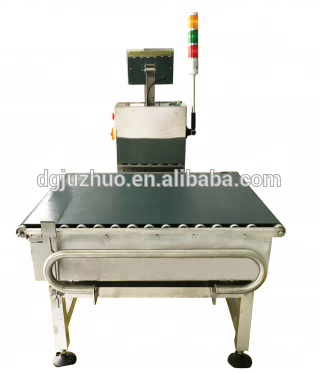

Product Images
