Specifications
display type :
10" color touch screen
Brand Name :
JUZHUO
waterproof :
IP66
accuracy :
+/-5grams
machine material :
SUS304
Model Number :
JZ-W25kg
Place of Origin :
Guangdong, China
MOQ :
1
weighing belt size :
600mmL*400Wmm
HBM load cell :
(original from Germany)
conveyor speed :
13~78m/minutes
Power Supply :
220V
warranty :
1
customized support :
OEM
Description

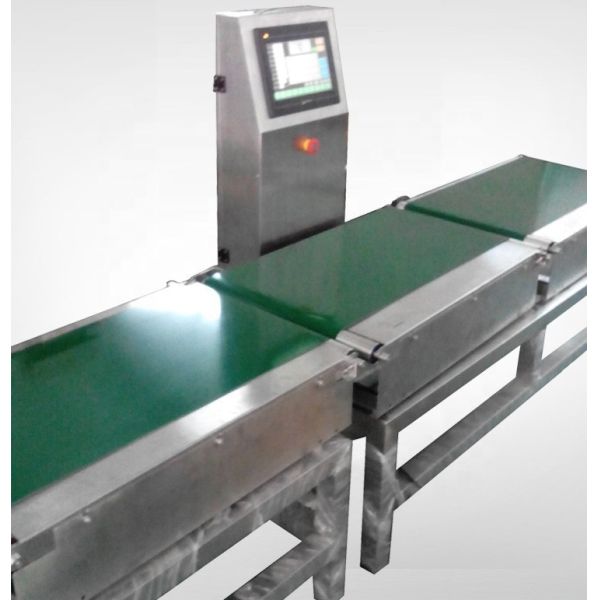

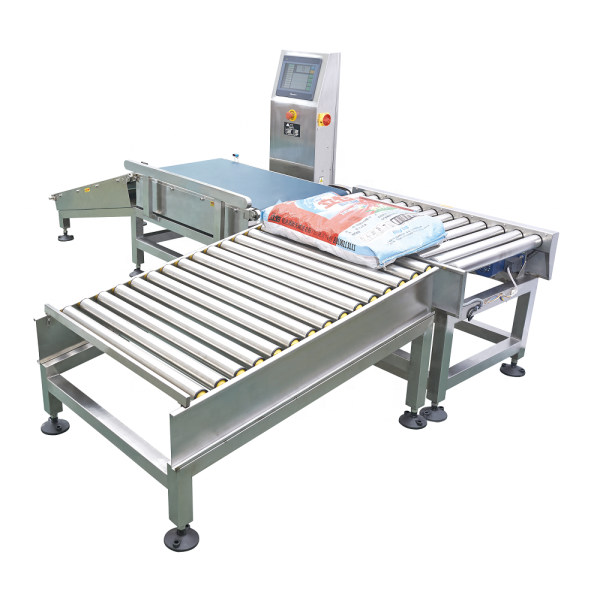

Online System Instant Frozen Fish Check Weigher JZ-W25kg Online
Product Overview

The JZ-W25kg Check Weigher is designed for instant frozen fish processing, automatically verifying whether individual package weights conform to preset standards and removing non-compliant products through various rejection mechanisms.

Applications

This weighing machine checks single pack weight compliance with preset standards and automatically removes overweight and underweight products using various rejection devices. Qualified bags proceed to the next equipment in the production line.

Key Features
  • PLC and 10" color touch screen with intelligent compact design
  • Auto program setting adjustment for enhanced stability and ease of operation
  • HBM load cell (original from Germany) ensures high accuracy and stability
  • Solid SUS304 structure provides stable performance and precise weighing
  • Multiple rejection options: reject arm, air blast, or pneumatic pusher
  • Tool-free belt disassembly for easier cleaning
  • Emergency switch installation for user-friendly operation
  • Optional arm device for clear production status display
  • Capacity to record up to 10 different product parameters
Technical Specifications
Model JZ-W25kg
Control System 10" color touch screen
Weighing Range 50-25000 grams
Conveyor Speed 13-78 meter/min
Maximum Throughput Capacity 500 bags/min
Accuracy ±5 grams
Product Size 60<L<420mm; 30<W<380mm; 10<H<430mm
Minimum Scale 0.5 grams
Weigh Belt 600mmL * 400mmW
Conveyor Height 750mm ±50mm
Auto Rejector System Reject Arm/Air Blast/Pneumatic Pusher/Divided-flow Style
Waterproof Rating IP66
Power Supply 220V/50HZ or 60HZ Single Phase
Machine Material 304 stainless steel
Interface Transmits weight to ink-jet printer (requires customer protocol)
Packing Dimension 1900mmL * 550mmW * 1600mmH
Gross Weight 300 KG
Optional Components
  • Network data management software
  • Front feeding FBC feedback control software
  • Printer
  • Lamp
