Specifications
display type :
10" color touch screen
waterproof :
IP66
accuracy :
+/-1grams
Machine material :
SUS304
Model Number :
JZ-W3kg
MOQ :
1
conveyor speed :
13-96meter/minutes
HBM load cell :
(original from Germany)
Brand Name :
JUZHUO
conveyor belt size :
1800L*500W*1600H mm
Place of Origin :
Guangdong, China
Power Supply :
220V
warranty :
1year
customized support :
OEM, ODM, OBM
Description
Factory Price Weighing Machine/Weight Checker JZ-W3kg
Product Overview
The Weighing Machine/Weight Checker JZ-W3kg is designed to verify whether individual package weights conform to preset specifications. The system automatically removes overweight and underweight products using various rejection devices, while qualified bags proceed to the next equipment in the production line.
Key Features
  • PLC and 10" color touch screen with intelligent compact design construction
  • Auto program setting adjustment for enhanced stability and easier operation
  • HBM load cell (original from Germany) ensures high accuracy and stability
  • Solid SUS304 structure provides stable performance and precise weighing
  • Multiple rejection options: reject arm, air blast, or pneumatic pusher
  • Tool-free belt disassembly for easier cleaning and maintenance
  • Emergency switch installation for user-friendly operation
  • Optional arm device for clear production status visualization
  • Capable of recording up to 10 different product parameters
Technical Specifications
Model JZ-W3kg
Control System 10" color touch screen
Weighing Range 30-3000 grams
Conveyor Speed 13-96 meters/min
Maximum Throughput Capacity 180 bags/min
Accuracy ±1 gram
Product Size 60<L<420mm; 30<W<250mm; 10<H<330mm
Minimum Scale 0.1 grams
Weigh Belt 500L * 300W mm
Conveyor Height 750mm ±50mm
Auto Rejector System Reject Arm / Air Blast / Pneumatic Pusher / Divided-flow Style
Waterproof Rating IP66
Power Supply 220V/50HZ or 60HZ Single Phase
Machine Material 304 Stainless Steel
Interface Transmits weight to Ink-jet printer (customer must provide protocol)
Packing Dimension 1800L * 500W * 1600H mm
Gross Weight 150 KG
Optional Accessories
  • Software for network data management
  • Front feeding FBC feedback control software
  • Printer
  • Lamp

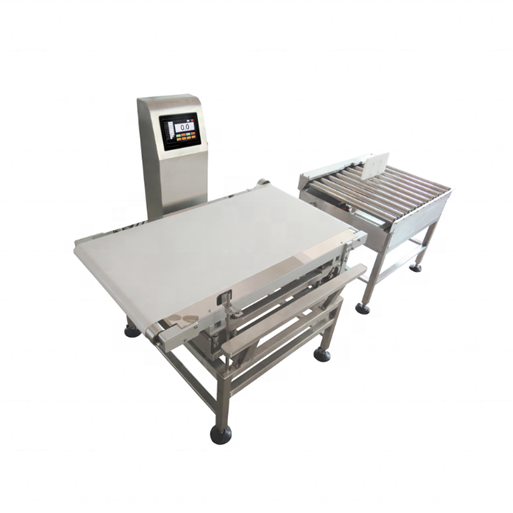

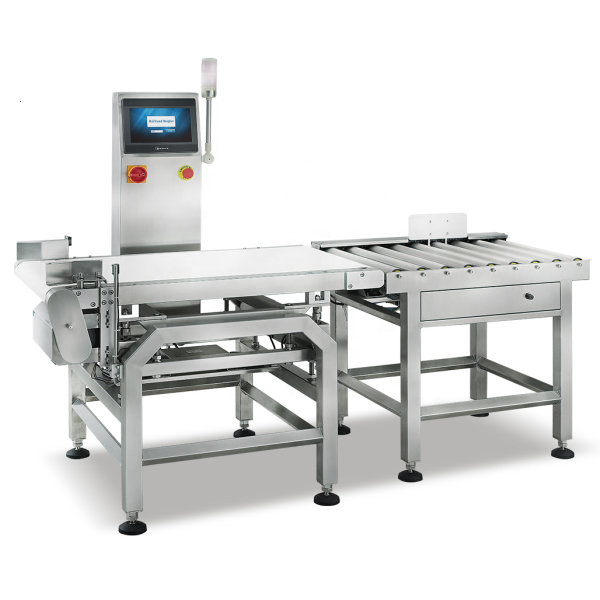

Product Images
Reliable Industrial Weighing Machine Weight Checker Equipment Checkweigher System JZ-W3kg
Reliable Industrial Weighing Machine Weight Checker Equipment Checkweigher System JZ-W3kg
Reliable Industrial Weighing Machine Weight Checker Equipment Checkweigher System JZ-W3kg
Reliable Industrial Weighing Machine Weight Checker Equipment Checkweigher System JZ-W3kg
Reliable Industrial Weighing Machine Weight Checker Equipment Checkweigher System JZ-W3kg
Reliable Industrial Weighing Machine Weight Checker Equipment Checkweigher System JZ-W3kg
Reliable Industrial Weighing Machine Weight Checker Equipment Checkweigher System JZ-W3kg
Reliable Industrial Weighing Machine Weight Checker Equipment Checkweigher System JZ-W3kg
