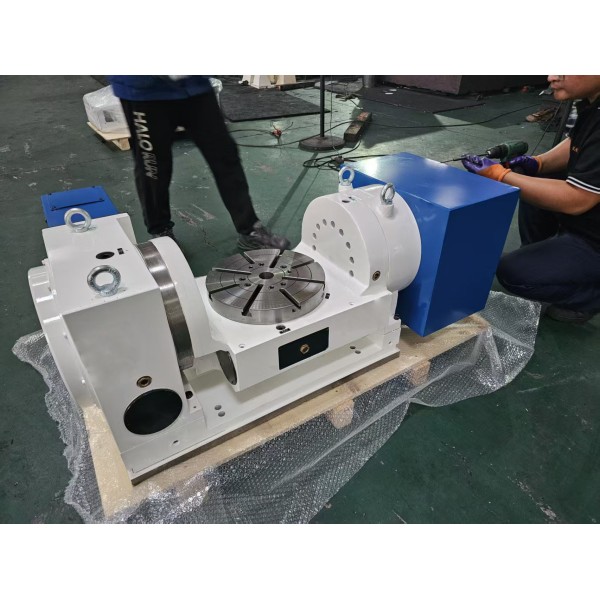

Tilting Angle Adjustable Worm Gear Rotary Table Hardened Steel Servo Motor Industrial
Tilting Angle Adjustable Worm Gear Rotary Table Hardened Steel Servo Motor Industrial
Tilting Angle Adjustable Worm Gear Rotary Table Hardened Steel Servo Motor Industrial
Tilting Angle Adjustable Worm Gear Rotary Table Hardened Steel Servo Motor Industrial
Tilting Angle Adjustable Worm Gear Rotary Table Hardened Steel Servo Motor Industrial
Tilting Angle Adjustable Worm Gear Rotary Table Hardened Steel Servo Motor Industrial
Specifications
Model Number :
5th SKT Series
Table Height :
290 ~ 760 Mm
Material :
Hardened Steel
Locating Key Width :
18 / 22 Mm
MOQ :
1set
Transmission :
High-efficiency & High-tooth-depth Double-lead Worm Gear Set
Supply Ability :
1000set/month
Tilting Axis Height to Base :
198 ~ 554 Mm
Drive Type :
Servo Motor Drive
Payment Terms :
T/T
Delivery Time :
According To Customer Needs
Minimum Indexing Unit :
0.001°
Place Of Origin :
Dongguan,China
Packaging Details :
Wooden Box
Brand Name :
JuZhuo
Max Rotary Speed :
5.5 ~ 33 R/min
Price :
Negotiable
Certification :
ISO9001,CE
Description
Hardened Steel Worm Gear Indexing Table
The 5th Worm Gear Rotary Table is engineered for precision machining and positioning tasks. This high-quality Worm Gear Rotary Positioner features robust construction, versatile capabilities, and superior performance for industrial applications including milling, drilling, grinding, and assembly operations.
Key Features
  • Product Name: 5th Worm Gear Rotary Table
  • Tilting Axis Height to Base: 198 ~ 554 mm
  • Max Rotary Speed: 5.5 ~ 33 R/min
  • Center Bore Diameter (H7 tolerance): Ø35 ~ Ø230 mm
  • Total Transmission Ratio: 1:90 ~ 1:180
  • Precise 5-Axis Worm Gear Rotary mechanism
  • Reliable Worm Gear Positioning Table for accurate positioning
  • CNC Worm Gear Rotary Table for seamless CNC system integration
Technical Specifications
Material Hardened Steel
Rotary Worm Gear Ratio 1:80 ~ 1:120
Matched Servo Power ≥1.0 ~ ≥3.8 KW
Max Rotary Speed 5.5 ~ 33 R/min
Table Diameter Ø170 ~ Ø1000 mm
Type Worm Gear Rotary Table
Locating Key Width 18 / 22 mm
Rotation Angle 360 Degrees
Drive Type Servo Motor Drive
Axis Of Rotation 5th Axis
Tilting Angle Adjustable Worm Gear Rotary Table Hardened Steel Servo Motor Industrial
Applications
The JuZhuo 5th SKT Series is ideal for CNC machining centers, aerospace, automotive, mold making, and precision engineering industries. It's also widely used in robotic arms, automated assembly lines, and inspection equipment, providing reliable and repeatable positioning in demanding industrial environments.
Customization & Support
This high precision worm gear table supports customization with servo motor torque range of 3 to 30 N*m and center bore diameters from Ø35 to Ø230 mm. Comprehensive technical support, maintenance guidelines, and repair services are available to ensure optimal performance throughout the product's service life.
Frequently Asked Questions
What is the brand and model number of this worm gear rotary table?
The brand is JuZhuo and the model number is 5th SKT Series.
Where is the 5th Worm Gear Rotary Table manufactured?
It is manufactured in Dongguan, China.
What certifications does the 5th SKT Series have?
The product is certified with ISO9001 and CE.
What is the minimum order quantity for this product?
The minimum order quantity is 1 set.
How is the product packaged and what are the delivery terms?
The product is packaged in a wooden box, and delivery time is according to customer needs.
What are the payment terms and supply ability?
Payment terms are T/T and the supply ability is 1000 sets per month.
Is the price fixed or negotiable?
The price is negotiable depending on order quantity and other factors.
