170mm-630mm Roller Cam Rotary Table Hardened Steel / Aluminum Alloy Material
170mm-630mm Roller Cam Rotary Table Hardened Steel / Aluminum Alloy Material
170mm-630mm Roller Cam Rotary Table Hardened Steel / Aluminum Alloy Material
170mm-630mm Roller Cam Rotary Table Hardened Steel / Aluminum Alloy Material
Specifications
MOQ :
1set
Packaging Details :
Wooden Box
Motor Type :
Stepper Or Servo Motor Compatible
Model Number :
NCT
Material :
Hardened Steel And Aluminum Alloy
Standard T-slot :
12H7
Price :
Negotiable
Center Distance Tolerance of Holes :
±0.015 Mm
Brand Name :
JuZhuo
Vertical Mount Perpendicularity :
0.02 Mm
Delivery Time :
According To Customer Needs
Compatible Servo Brands :
Fanuc, Syntec, Huazhong
Place Of Origin :
Dongguan,China
Payment Terms :
T/T
Standard Locating Key :
18H7
Certification :
ISO9001,CE
Radial Runout :
0.01 Mm
Supply Ability :
1000set/month
Description

4th Axis Roller Cam Rotary Table With 360 Degrees Continuous Rotation, 0.02 Mm Vertical Mount Perpendicularity, And 170mm To 630mm Table Diameter

4th Axis Roller Cam Rotary Table
Product Overview

The 4th Axis Roller Cam Rotary Table is a precision-engineered device designed to enhance CNC machine capabilities by providing accurate and continuous rotational movement. This essential accessory enables complex multi-faceted workpieces to be produced with ease and precision, featuring 360-degree continuous rotation for seamless machining operations.

Key Features
  • High precision Fourth Axis Precision Rotary Table with table flatness of 0.02 mm
  • Reliable Roller Cam drive mechanism for smooth and accurate rotation
  • Standard T-slot: 12H7 for secure and precise workpiece mounting
  • Vertical Mount Perpendicularity: 0.02 mm ensuring exact alignment
  • Ideal for CNC Machining, Automation, and Precision Positioning applications
  • Enhanced accuracy and durability for demanding industrial applications
Technical Specifications
Table Diameter Varies (commonly 170mm to 630mm)
Compatible Servo Brands Fanuc,Syntec, Huazhong
Rotation Angle 360 Degrees Continuous Rotation
Axis Type 4th Axis
Application CNC Machining, Automation, Precision Positioning
Radial Runout 0.01 mm
Drive Mechanism Roller Cam
Material Hardened Steel and Aluminum Alloy
Horizontal Mount Parallelism 0.02 mm
Standard Accessories Oil Sight Glass, Lifting Eye, Oil Filling Port, Main & Tailstock Brake Port
Model Specifications
Model Table Dia Center Bore Reduction Ratio Load (Without Tailstock) Load (With Tailstock) Indexing Accuracy Repeat Accuracy
NCT170 Φ170mm Φ50H7 1:40 75kg 150kg <30 arc.sec <8 arc.sec
NCT200 Φ200mm Φ50H7 1:40 - - - -
NCT250 Φ250mm Φ50H7 1:60 100kg - ±20 arc.sec 33 arc.sec
NCT320 Φ320mm Φ90H7 1:60 180kg 350kg ±20 arc.sec 35 arc.sec
NCT400 Φ400mm - 1:60 260kg 550kg ±20 arc.sec 4 arc.sec
NCT500 Φ500mm - - - - - -
NCT630 Φ630mm - 1:60 500kg 1200kg ±10 arc.sec -

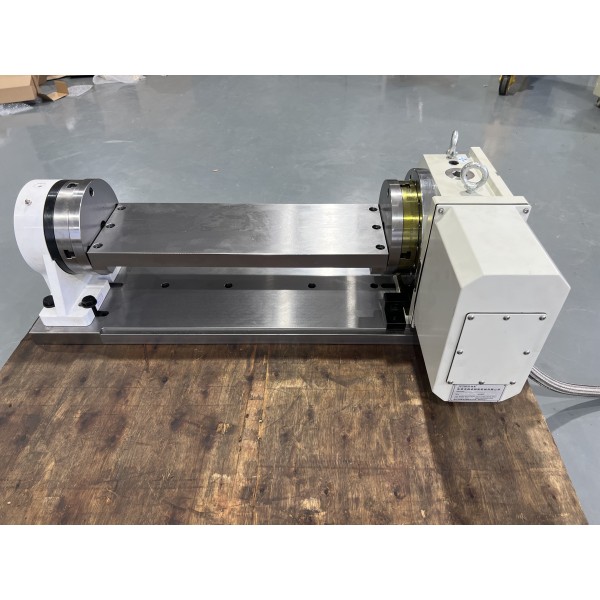

Product Image
170mm-630mm Roller Cam Rotary Table Hardened Steel / Aluminum Alloy Material
Applications

The JuZhuo 4th Axis Roller Cam Rotary Table is ideal for applications requiring exceptional accuracy and repeatability in multi-axis machining processes. Typical applications include CNC machining centers, milling machines, and drilling machines in aerospace, automotive, electronics, and precision engineering industries.

Customization Services

JuZhuo offers professional customization services for the 4th Axis Roller Cam Rotary Table with a minimum order quantity of 1 set. Customization options include specific size requirements, motor compatibility (stepper or servo), and integration with existing CNC systems.

Support and Services

We provide comprehensive technical support including installation guidance, troubleshooting, maintenance tips, and software updates. Additional services include repair and refurbishment, replacement parts supply, and extended warranty options to ensure optimal performance.

Packing and Shipping

Each unit is securely packaged with high-quality foam in sturdy custom-fitted cardboard boxes with anti-moisture materials. We use reliable carriers with full tracking capabilities and provide all necessary documentation for customs clearance.

Frequently Asked Questions
What is the brand and model number of the 4th Axis Roller Cam Rotary Table?
The product is branded JuZhuo with model number NCT.
Where is the 4th Axis Roller Cam Rotary Table manufactured?
It is manufactured in Dongguan, China.
What certifications does this product have?
The product is certified with ISO9001 and CE certifications.
What is the minimum order quantity and price?
Minimum order quantity is 1 set with negotiable pricing.
How is the product packaged and delivered?
Packaged in wooden boxes with delivery times according to customer needs.
What are the payment terms and supply capacity?
Payment terms are T/T (Telegraphic Transfer) with supply capacity of 1000 sets per month.
