Model ADM2532 Angle Steel Tower Industry CNC Angle Line Machine 1000KN Marking Force

Product Usage:

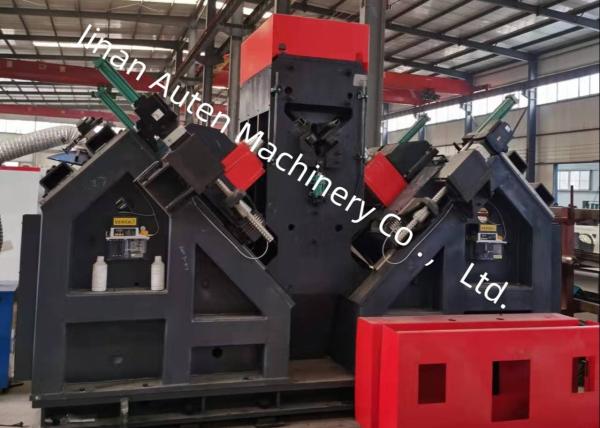

It is primarily designed for drilling and stamping operations on large-size, high-strength angle steel utilized in transmission line towers. All required holes on the angle steel can be processed on this production line, which delivers superior hole quality, high positional accuracy, as well as exceptional production efficiency and automation capabilities.

40mm Max Drilling Diameter Angle Steel Tower Industry CNC Angle Line Machine 1000KN Marking Force

High Automation Level:

The production line is equipped with an automatic loading device (comprising a transverse feeding channel and a rotating loading frame), an automatic discharging device, and an automatic feeding device. All holes and steel mark markings on the angle steel can be processed in a single pass through the production line, with no manual intervention required during processing—significantly reducing workers' labor intensity.
40mm Max Drilling Diameter Angle Steel Tower Industry CNC Angle Line Machine 1000KN Marking Force
Typing Unit:

The typing unit features a closed-frame structure with high strength and stable performance. The printing unit includes a bed support fixed to the machine base, a movable bed, and a hydraulic-driven press head character box. Printing operations are executed at the positions specified in the drawings in accordance with computer instructions. To expand the machine's processing range, a manual adjustment mechanism has been integrated, enabling adjustment of the movable bed's downward position (i.e., the character head position) to accommodate typing requirements for angle steel of varying specifications.
40mm Max Drilling Diameter Angle Steel Tower Industry CNC Angle Line Machine 1000KN Marking Force
Product Parameter Configuration
Model ADM2532
Angle size(mm) 140*140*10~250*250*32
Max. length of raw material (m) 14
Marking force(kN) 1000
No. of character group 1
No. of character 18
Character size (mm) 14*10*19
Range of accurate distance(mm) 50~220(Stepless)
No. of drill on each side 3(2 groups, 6 in total)
No. of blade on each side 3

Taper of drilling spindle

 BT40
Max. drilling diameter (mm) Φ40
Max. Spindle rotation speed(r/min) 6000
Drill cooling unit MQL 360-2(Dry cooling)
Cooling unit oil storage capacity 2L
Cutting oil Vegetable oil-based micro cutting oils(2000-25)
fuel consumption 5~50ml/h
CNC trolley drive type AC servo motor,rack and pinion driving
Max. feeding speed of angle(m/min) 40
AB-axis alignment movement drive method Linear Motion Guide;AC servo motor;Ball screw Secondary driving
Max. skateboard travel speed of drilling head(m/min) 10
Drilling head drive type Linear Motion Guide;AC servo motor;Ball screw Secondary driving
Max. feeding speed of drilling head(m/min) 14
Feeder trolley arm working method Vertical lifting type
Number of tipping cylinders on discharge side 4
Hydraulic station cooling method Air cooling
No. of CNC axes 9
Air pressure(MPa) 1
Total power About 150KW
Overall dimensions(m) 33*8.5*2.5
