2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column
2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column
2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column
2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column
2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column
2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column
Specifications
Delivery Time :
40 days
Repeatability :
±0.07mm
Certification :
ISO9001
Power supply :
Three-phase five-wire system, 3×380V±10%/50HZ
Supply Ability :
300 sets/year
Load capacity :
12KG
Degrees of freedom :
7 axis
Payment Terms :
L/C, T/T
Near field of view :
461×255mm@300mm
Visual accuracy :
≤0.5mm
Price :
Negotiable
Packaging Details :
Wooden case
Light resistance :
180000Lux
Place of Origin :
China
MOQ :
1 set
Arm span :
2010mm
Brand Name :
Auten
Description

2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column

Product Parameters:

Category Content Main Technical Parameters Remark
Robot performance Arm span 2010mm
Repeatability ±0.07mm
Load capacity 12kg
Visual performance Near field of view 461×255mm@300mm
Far field of view 1150×660mm@800mm
Z-axis single-point repeatability 0.015mm@300mm0.1mm@800mm
Visual accuracy ≤0.5mm
Full frame acquisition time 0.2-0.8s(Full frame rate Max:6FPS)
Light resistance 180000Lux
Overall parameters Power supply Three-phase five-wire system, 3×380V±10%/50HZ
Degrees of freedom 7-axis
Number of robots configured Single unit Dual unit Depends on the design
Total power consumption 35kw 75kw
Floor area (4m + track length) × (3 + rail spacing) × 3.5m

2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column

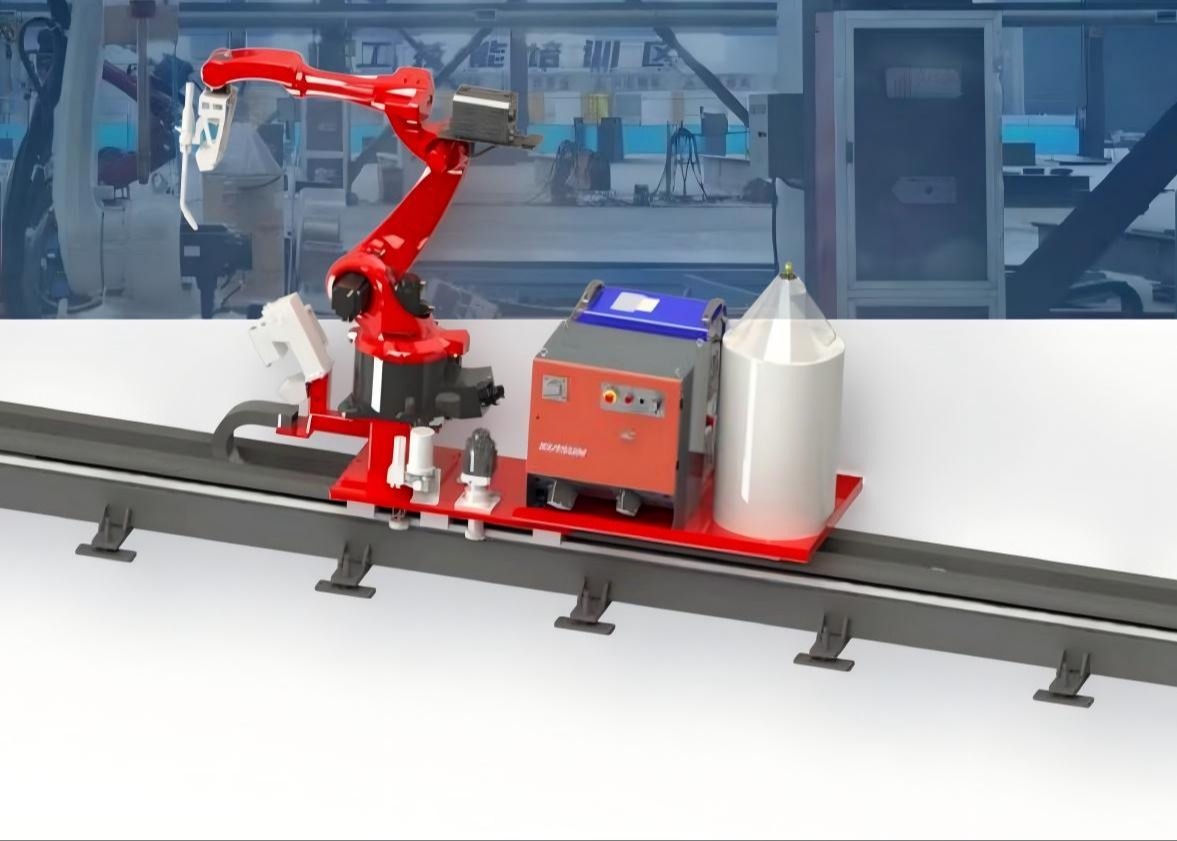

The floor rail system is the foundation of a teach-free welding robot, providing it with flexible movement space and expanding its working range. It is suitable for workpieces with a width ≤ 1.4M and a height ≤ 500mm, such as crane beams, H-shaped steel columns, and roof beams.

2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column

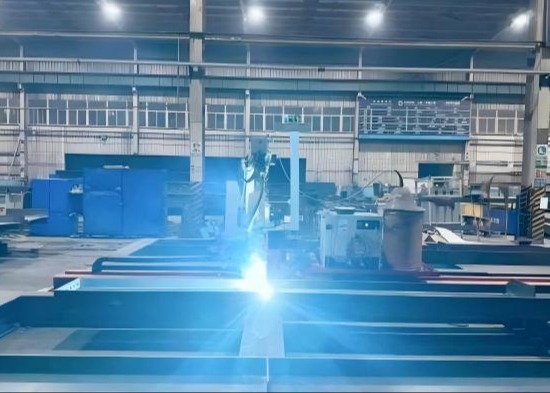

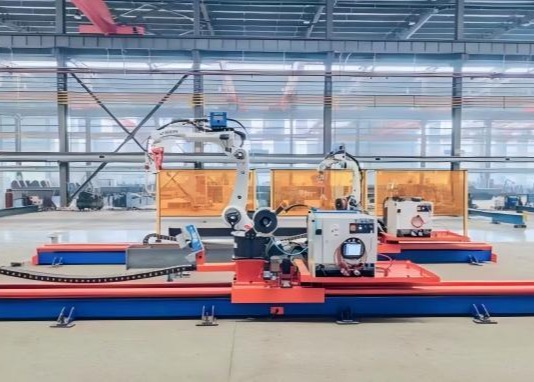

The floor rail uses a high-precision guide rail and drive system to ensure the robot's stability and positioning accuracy during movement. With the help of the floor rail, the robot can quickly switch between different welding positions to complete the welding of longer workpieces, improving production efficiency.

2010mm Arm Span Orthogonal Rail Welding Robot For Crane Beam H-Shaped Steel Column
