Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components
Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components
Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components
Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components
Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components
Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components
Specifications
Delivery Time :
40 days
Repeatability :
±0.07mm
Certification :
ISO9001
Power supply :
Three-phase five-wire system, 3×380V±10%/50HZ
Supply Ability :
300 sets/year
Load capacity :
12KG
Degrees of freedom :
7 axis
Payment Terms :
L/C, T/T
Near field of view :
461×255mm@300mm
Visual accuracy :
≤0.5mm
Price :
Negotiable
Packaging Details :
Wooden case
Light resistance :
180000Lux
Place of Origin :
China
MOQ :
1 set
Arm span :
2010mm
Brand Name :
Auten
Description

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

Product Parameters:

Category Content Main Technical Parameters Remark
Robot performance Arm span 2010mm —
Repeatability ±0.07mm —
Load capacity 12kg —
Visual performance Near field of view 461×255mm@300mm —
Far field of view 1150×660mm@800mm —
Z-axis single-point repeatability 0.015mm@300mm0.1mm@800mm —
Visual accuracy ≤0.5mm —
Full frame acquisition time 0.2-0.8s(Full frame rate Max:6FPS) —
Light resistance 180000Lux —
Overall parameters Power supply Three-phase five-wire system 3×380v±10%/50HZ —
Degrees of freedom Adapt to workpiece conditions —
Number of robots configured single unit single unit two units Four units Depends on the design
Total power consumption 34kw 37kw 68kw 136kw Corresponding to different configuration quantities
Floor area (4m + track length) × (3 + rail spacing) × 3.5m —

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

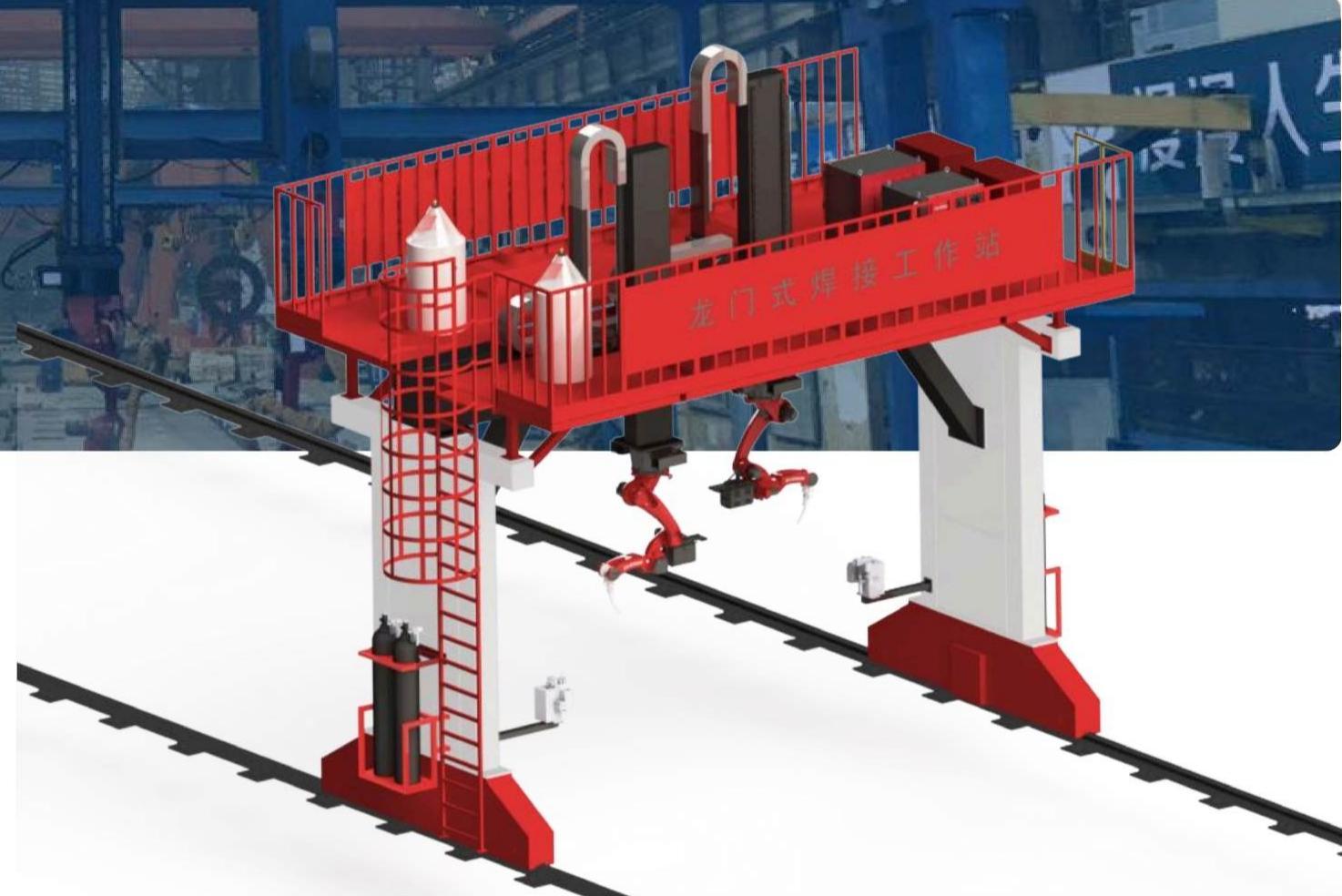

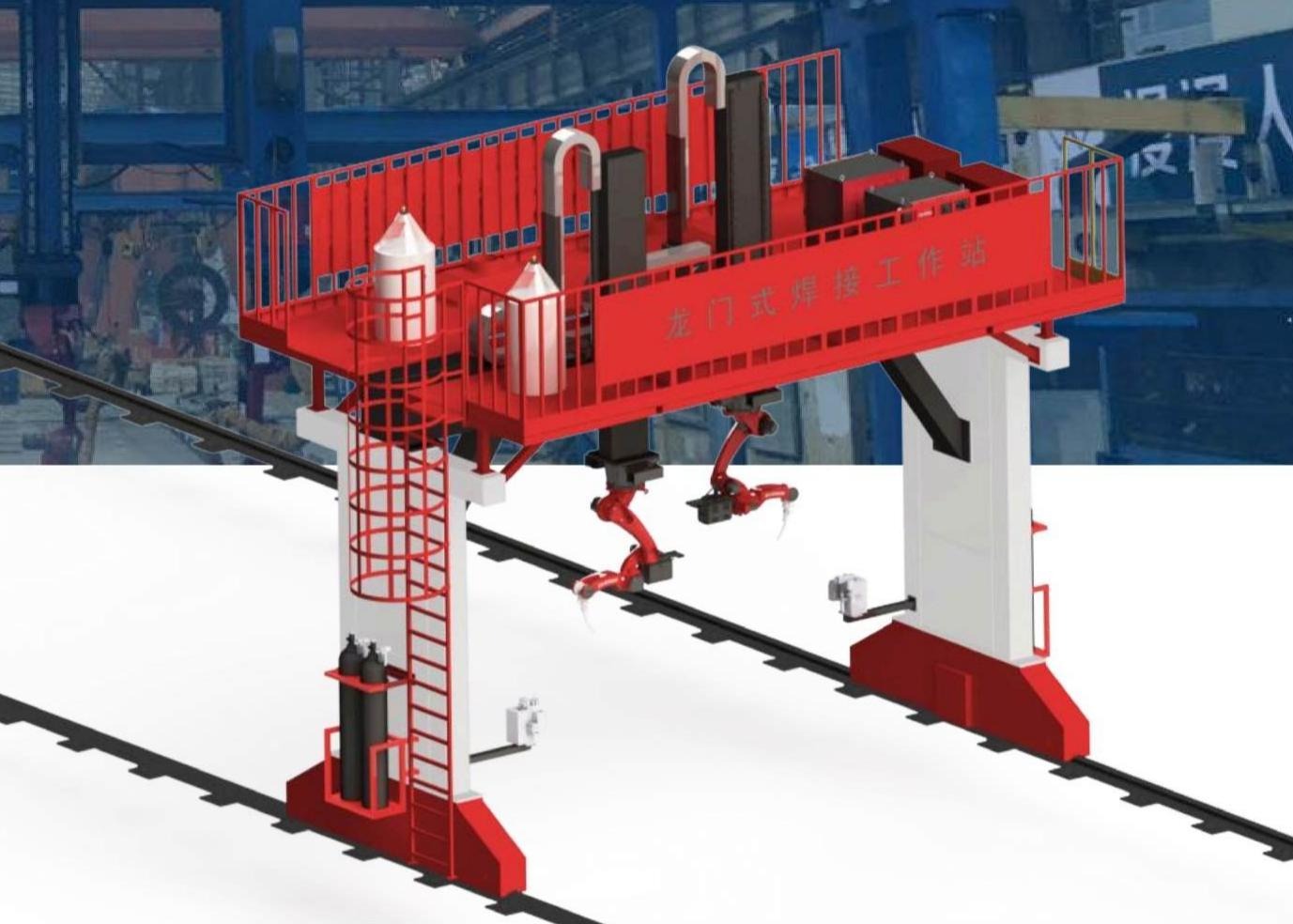

This gantry-type welding robot is installed upside down, allowing multiple units to work collaboratively via the gantry frame beam.

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components

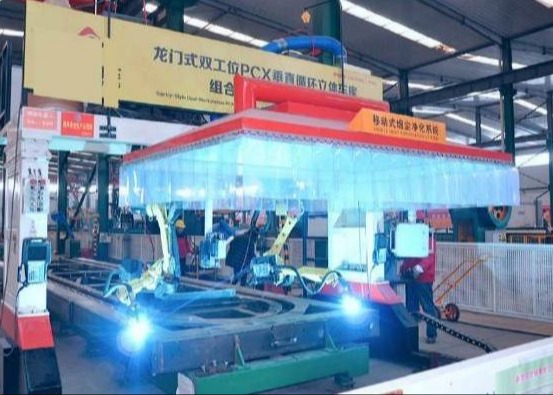

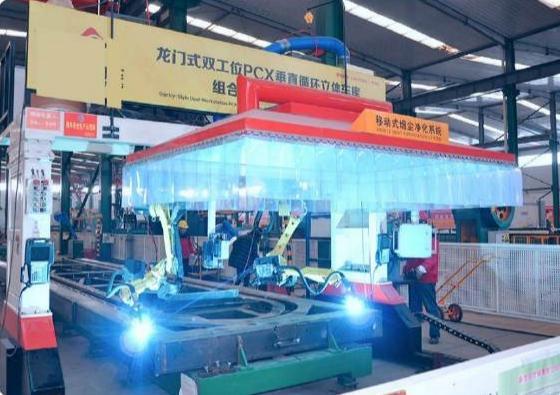

It supports multi-axis linkage (X/Y/Z) and external extension axis configurations, making it suitable for multi-angle welding of large workpieces such as ship assembly components. It can operate as a single machine, in pairs, or in groups of four, significantly improving efficiency. Utilizing a servo-driven backlash-free reducer and a programming-free system, it automatically plans the welding path and tracks the weld seam, ensuring precise welding trajectory.

Servo-Driven CNC Gantry-Type Welding Robot For Hip Assembly Components
