Specifications
Delivery Time :
40 days
Repeatability :
±0.07mm
Certification :
ISO9001
Power supply :
Three-phase five-wire system, 3×380V±10%/50HZ
Price :
Negotiable
Packaging Details :
Wooden case
Light resistance :
180000Lux
Supply Ability :
300 sets/year
Load capacity :
12KG
Degrees of freedom :
7/8/9 axis
Payment Terms :
L/C, T/T
Near field of view :
461×255mm@300mm
Visual accuracy :
≤0.5mm
Place of Origin :
China
Arm span :
2010mm
MOQ :
1 set
Brand Name :
Auten
Description

±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance

Product Parameters:

Category Content Main Technical Parameters Remark
Robot performance Arm span 2010mm —
Repeatability ±0.07mm —
Load capacity 12kg —
Visual performance Near field of view 461×255mm@300mm —
Far field of view 1150×660mm@800mm —
Z-axis single-point repeatability 0.015mm @300mm0.1mm @800mm —
Visual accuracy ≤0.5mm —
Full frame acquisition time 0.2-0.8s(Full frame rate Max:6FPS) —
Light resistance 180000Lux —
Overall parameters Power supply

Three-phase five-wire system

3×380v±10%/50HZ

 —
Degrees of freedom 7-axis 8-axis 9-axis —
Number of robots configured single unit single unit single unit Depends on the design
Total power consumption 34kw 37kw 55kw —
Floor area (4m + track length) × (3 + rail spacing) × 3.5m —

±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance

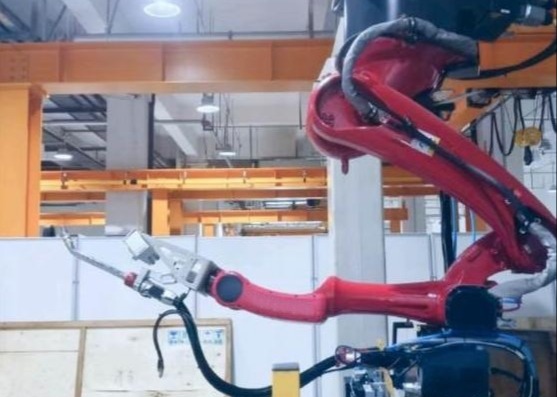

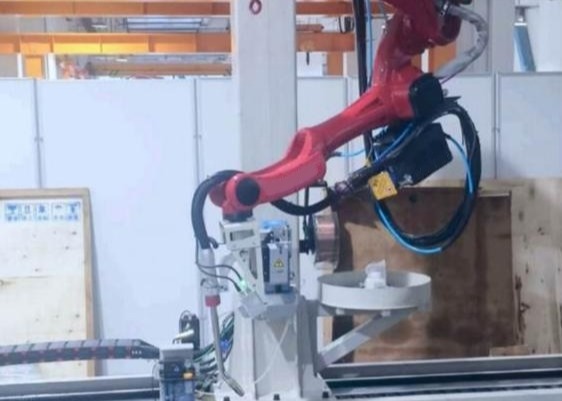

This robot features an inverted track, employing suspension or inverted installation for precise position control and expanded working range. It is suitable for workpieces with a width ≤3M and a height ≤500MM, such as bridge slabs.

±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance

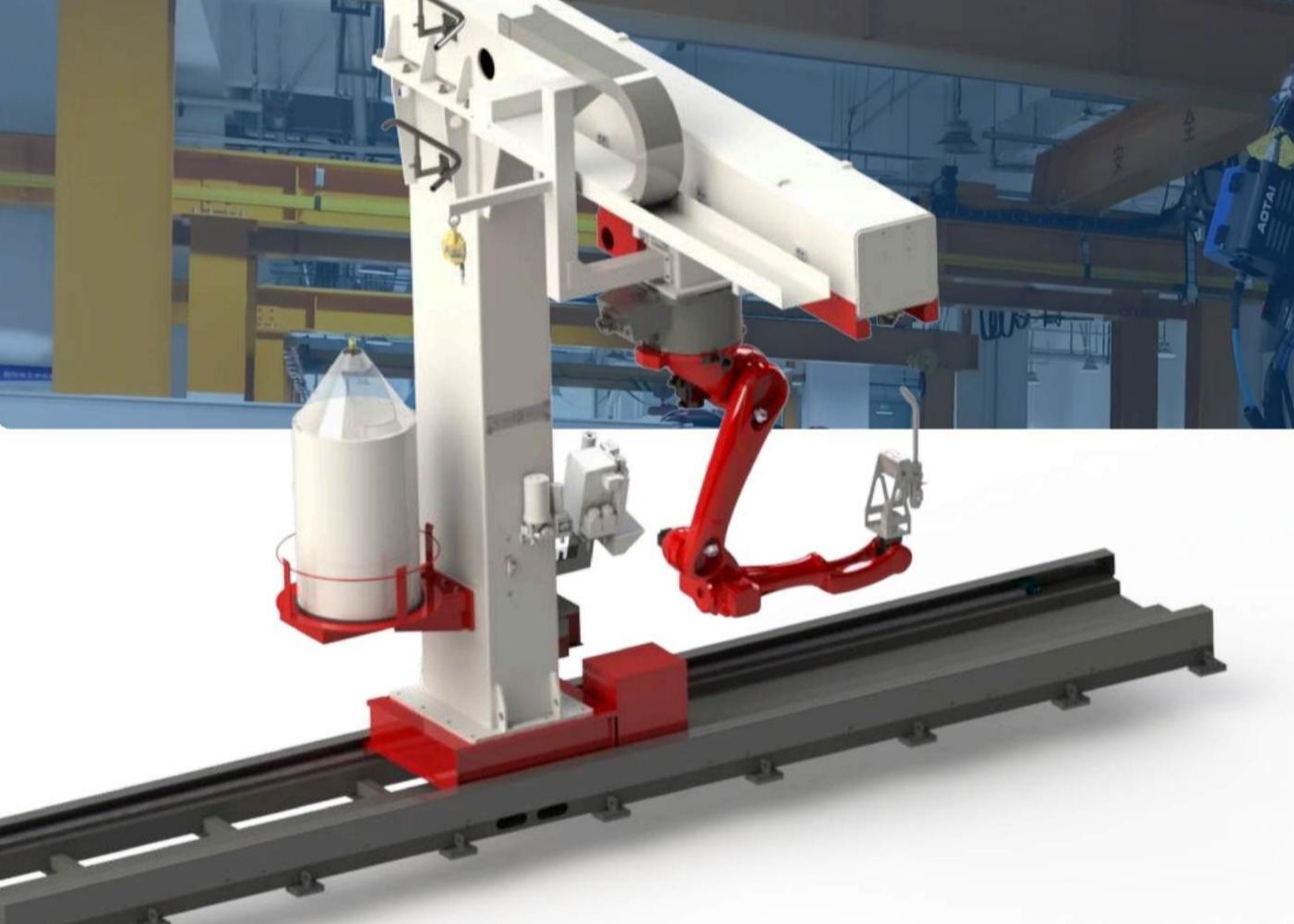

This system can be expanded with Y and Z axes to form a 9-axis cantilever, further increasing the working range. Combined with multiple 3D vision systems, multiple workpieces can be modeled from a single photograph.

±0.07mm Repeatability Inverted Rail Welding Robot Machine 180000Lux Light Resistance
