3000x3000mm CNC Plate Drilling And Milling Machine 80mm Drilling Diameter

Application:

Suitable for drilling, chamfering, tapping, and milling of plate/structural components.

It is primarily designed for high-efficiency drilling of workpieces such as flanges, discs, rings, and plates with thickness within the effective range. Drilling of through holes and blind holes can be achieved on both single-material parts and composite materials. The machining process of the machine tool is digitally controlled, offering highly convenient operation. It enables automation, high precision, multi-variety production, and mass manufacturing.

Specifications:

Machine Structure:

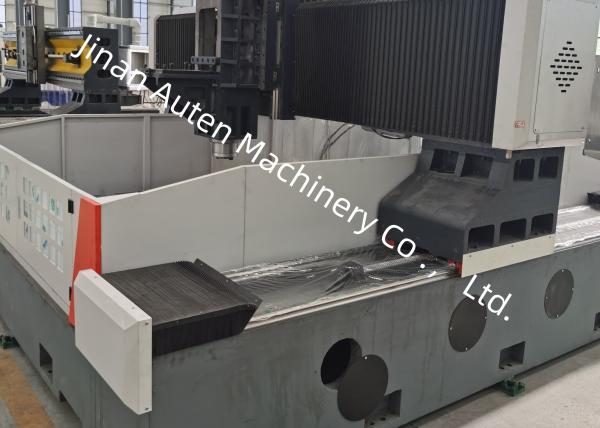

The machine bed is of cast construction, primarily consisting of a worktable, a movable gantry, a movable sliding saddle, a drilling and milling power head, an automatic lubrication device, a protective device, a circulating cooling device, a digital control system, and an electrical system, among other components. It adopts rolling hard rail pairs for support and guidance, and precision lead screw pairs for transmission, ensuring the machine tool achieves high positioning accuracy and repeat positioning accuracy.

1. Workbench:

The workbench is fabricated from gray iron (HT250), undergoing finish machining after secondary tempering and power treatment to ensure sound internal quality and dimensional stability. The work surface features a cast structure.

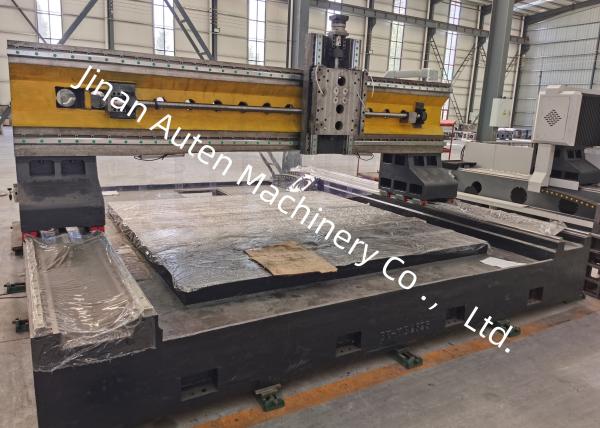

2. Movable Gantry:

The movable gantry is constructed from gray cast iron (HT250). The front side of the gantry is outfitted with two rolling linear guide pairs with ultra-high load-bearing capacity, a set of precision ball screws, and a servo motor, which collectively enable the power head slide to function as the Y-axis. When moving in the same direction, the drilling power head is mounted on the power head slide plate. The movement of the gantry is achieved through the rotation of the ball screw, which is driven by the servo motor via a precision coupling.

It is primarily designed for high-efficiency drilling of workpieces such as flanges, discs, rings, and plates with thickness within the effective range. Drilling of through holes and blind holes can be achieved on both single-material parts and composite materials. The machining process of the machine tool is digitally controlled, offering highly convenient operation, and it enables automation, high precision, multi-variety production, and mass manufacturing.

These samples cover various common specifications and processing scenarios, allowing users to directly inspect the processing quality, dimensional accuracy, and surface finish, thereby providing a tangible reference for evaluating the machine tool’s performance and suitability for specific production needs.
