Specifications
Brand Name :
Auten
Model Number :
BS1000/BS1250
Certification :
ISO9000
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
100 sets/ year
Delivery Time :
60 days
Packaging Details :
wooden case
H beam size :
1250x600mm
Saw blade lineal speed :
20~100 m/min
Rotation angle :
0°～ 45°
Function :
Band sawing
Description

CNC Band Sawing Machine for Cutting H Beam Used in Steel Structure Industry

Applicable industry:

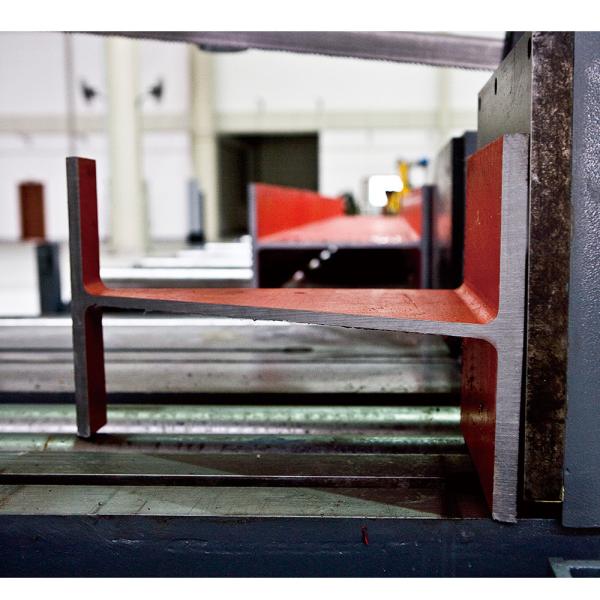

Used for the sawing of H-shape steel, box beams, channel steel, angle steel and round steel of steel structure, bridge, three dimensional garages and petrol platform industries.

Product feature:
■Double column design equipped with strong lathe bed, with fine function of absorbing vibration during high speed sawing.

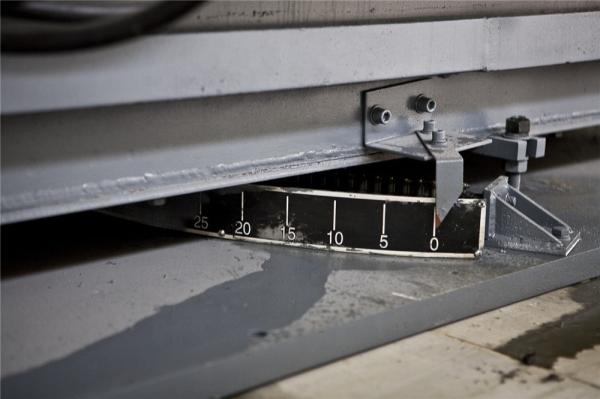

■Can rotate itself and no need to rotate for longer work piece when beveling for 0°~45°, can keep the continuity of production.
■Saw blade driving with greater motor power and good transmission. Used for the specialized processing of various section steel of steel structure industry.
■Saw blade hydraulic automatic tensioning device, keep saw blade stable during high speed rotation and can extend life of saw blade.
■Small aperture, high precision, and greatly reduce material consumption.
■Laser alignment function and advanced and retreated structure slightly adjusted with hand, convenient for cutting accurately.
■Automatic coolant compatible with blade could make blade lubricant and reduce the temperature of blade.
■PLC control, sawing linear velocity can be adjusted by transducer motor and sawing feeding speed also can be adjusted by hydraulic stepless adjustment. This greatly promotes production efficiency.
■Key machine, hydraulic pressure and electric components are chosen famous products domestic and abroad.

Product Basic Parameter

Model BS750 BS1000 BS1250

Sawing force (mm)

 round steel Φ550 φ660 φ660
square steel 480x480 550x550 630x630
H beam 750x450 1000x500 1250x600
Saw blade size (mm) T:1.3;W:41 ;L:6650 T:1.6;W:54 ;L:7600 T:1.6;W:54 ;L:8300
Saw blade lineal speed (m/min) 20~80 (adjustable)
Motor power (kW) 5.5 11 11
Feeding speed stepless feeding
Rotation angle 0°～ 45°
Main clamping hydraulic motor (ml/r) 160
Front clamping hydraulic motor (ml/r) 160
Clamping type Hydraulic clamping
Overall dimension(LxWxH) About 3.5x2.5x2.6 About 3.8x2.6x2.6 About 4.2x2.6x2.7
Machine weight (Kg) About 5500 About 6000 About 6800
