Specifications
Brand Name :
DZ
Model Number :
HZ-360
MOQ :
1set
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
30 Days
Packaging Details :
wood box
Place of Origin :
china
Certification :
CE ISO
Price :
Negotiable
Supply Ability :
30sets/per month
Condition: :
New
Product Name: :
Sand Core Making Machine
Voltage: :
220v/380v/415v
Supply Ability: :
30sets/per month
Highlight: :
shell core shooter machine,cold box core shooter machine
After-sales Service Provided: :
Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Weight: :
2000kg
Warranty: :
1 Year
Description

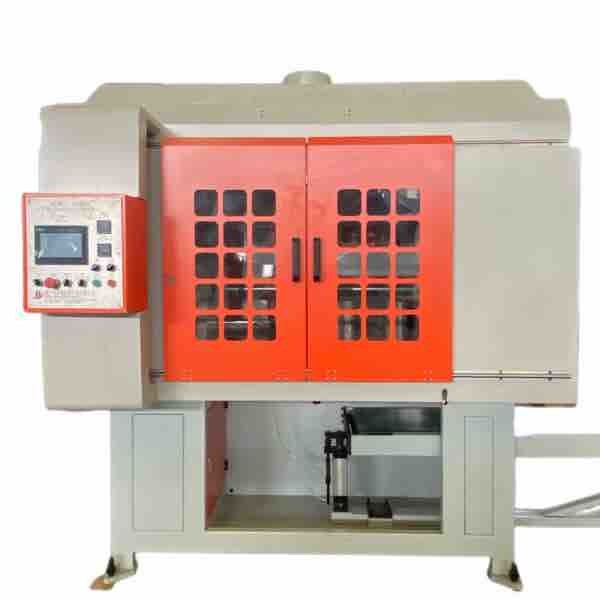

Automatic foundry sand core Making machine features
  1. The core making machine is an advanced semi-automatic system for core box processing, upgraded and optimized from the classic 86 series design.
  2. The whole set of equipment is controlled by Japanese PLC, and the manual semi-automatic control is controlled by the electric disc button device.
  3. The upper blow type device has automatic propulsion, automatic mold clamping, automatic sand injection, automatic sand scraping and automatic reset function.
  4. The machine adopts electric heating and automatic temperature control, which makes it easy to operate, high in productivity, low in labor intensity, stable in operation, low in energy consumption and low in noise.
  5. It is an ideal core making device.
II:Main Technical Specifications
1 BASIC EQUIPMENT Specifications

Max. Sand Core Weight 9kg

Max. Cor Box size(L*W*H) (450*330*220)mm

Heating Plate(L*W) (400*300)mm

Heating Power 9.6kw

Clamping stroke of the injection head ≤30mm

Die-opening Stroke ≤300mm

Max.Core Pulling Stroke 150mm

Conveyor Belt(L*W*H) (2200*450*100)mm

Machine Power 2°~4°

Conveyor Speed 72mm/s

Machine Dimension(L*W*H) (3500*1480*3400)mm

Lifting Speed(single cycle) 35s

Lifting Capacity(Single cycle) 5~10kg

Machine weight 2000kg
