Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Metal Plumbing Fittings Gravity Casting Machine
Specifications
Brand Name :
DZ
Model Number :
HZ-450
Certification :
CE
Place of Origin :
China(Mainland)
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30 Set/Sets per Month
Delivery Time :
2 weeks
Packaging Details :
wood
Description
Detail Information
Condition: New Warranty: 1year
Name: Brass Die Casting Machine Technology: Gravity Die Casting Technology
Usage: Foundry Pieces Production Raw Material: Brass Copper Zinc Aluminum Steel Iron Alloy
High Light:

Plumbing Fittings Gravity Casting Machine,Mechanical Structure Brass Die Casting Machine

,5.5kw Brass Die Casting Machine

Product Description

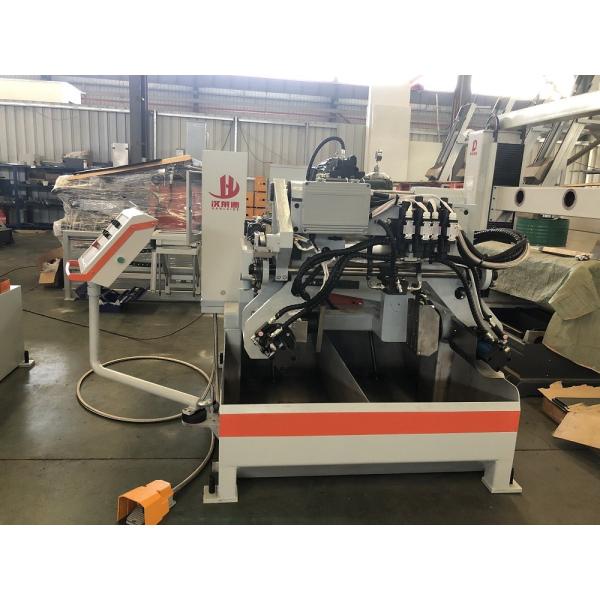

Metal Plumbing Fittings Gravity Pouring Casting Machine

This machine is used for the casting of brass and other coppe ralloys poured by gravity into the die, to obtain medium/large size pieces or small size piecesby using multi-cavity dies.
The machine, being a new generation gravity casting machine, is designed taking into consideration operatorsafety and ergonomics.
The main characteristics of this newconcept machine are as follows:

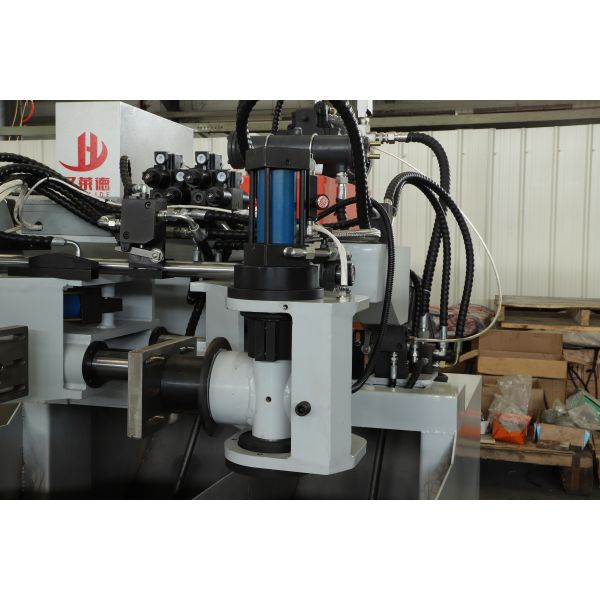

Mechanical structure,which is far morerobust,with all vital parts mounted inaccessible and protected positions.

The dipping tank is an independent unit and can be easily removed ifnecessary. Furthermore during operation they are protected fromsand, grease and oil accidentally falling into them.
The machine is supplied with avariable displacementpump, allowingto extend the life of the pump and tobe much more silent.
Hydraulic and electric components,cylinders, and valves are also standardfor easy replacemen

Main Technical Specifications

# Name Specification
1 Max. Die size Φ450mm
2 Max. Die working distance 450mm
3 Max. Die Weight 130kg
4 Max. Clamping distance ≦250mm
5 Hydraulic Motor 5Hp,6 degree
6 Hydraulic Pressure 4～6Kpa
7 Side Casting Angle 0°～90°
8 Direct Casting Angle 0°～110°
9 Stirring motor 0.75kw,6 degree ×2
10 Cooling tank 850kg
11 Hydraulic oil volume 163L
12 Machine Power 5.5kw
13 Machine Weight 1750kg
14 Dimension(LXWXH) 2250mm×2160mm×1560mm

Metal Plumbing Fittings Gravity Casting MachineMetal Plumbing Fittings Gravity Casting MachineMetal Plumbing Fittings Gravity Casting Machine

Metal Plumbing Fittings Gravity Casting Machine

Metal Plumbing Fittings Gravity Casting Machine
