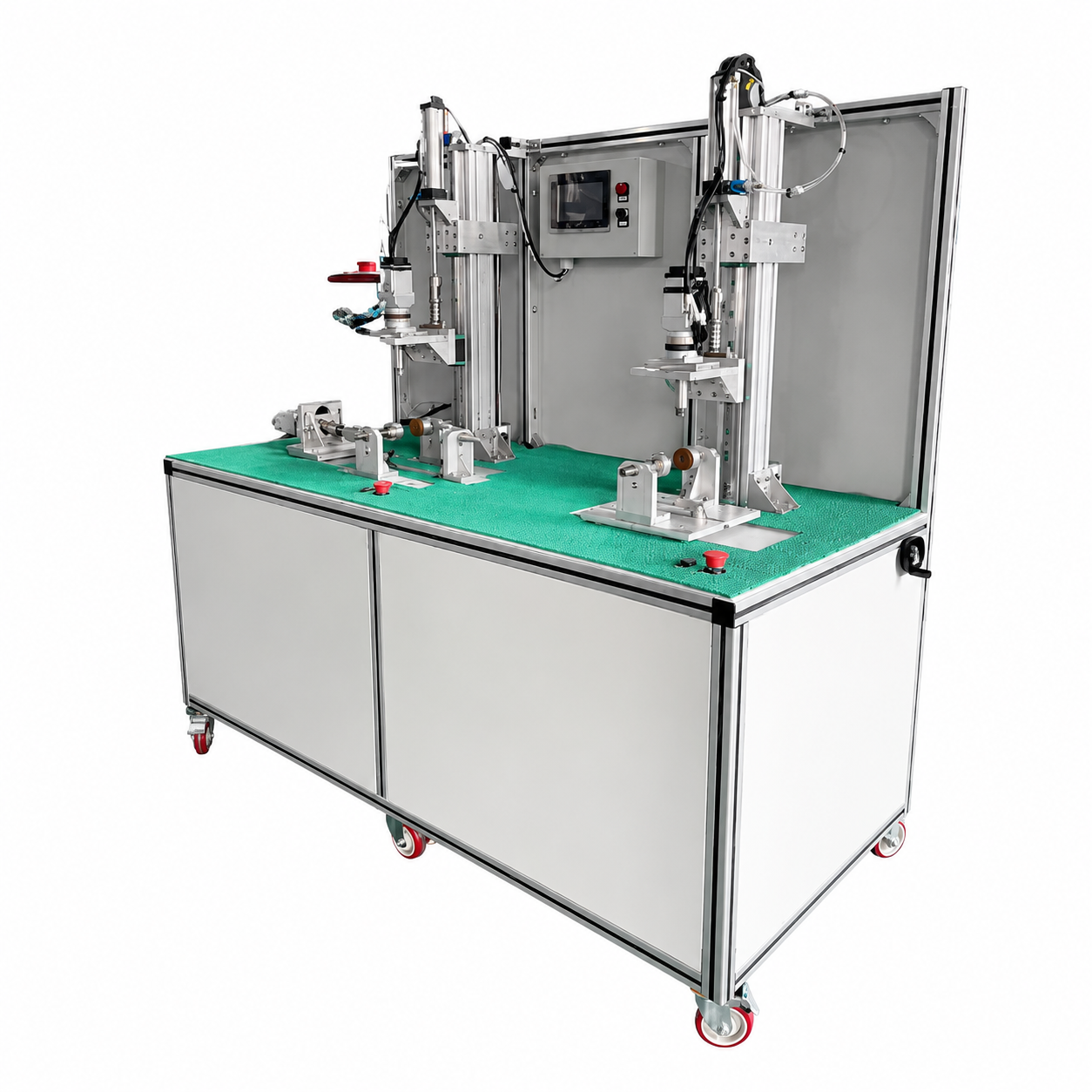

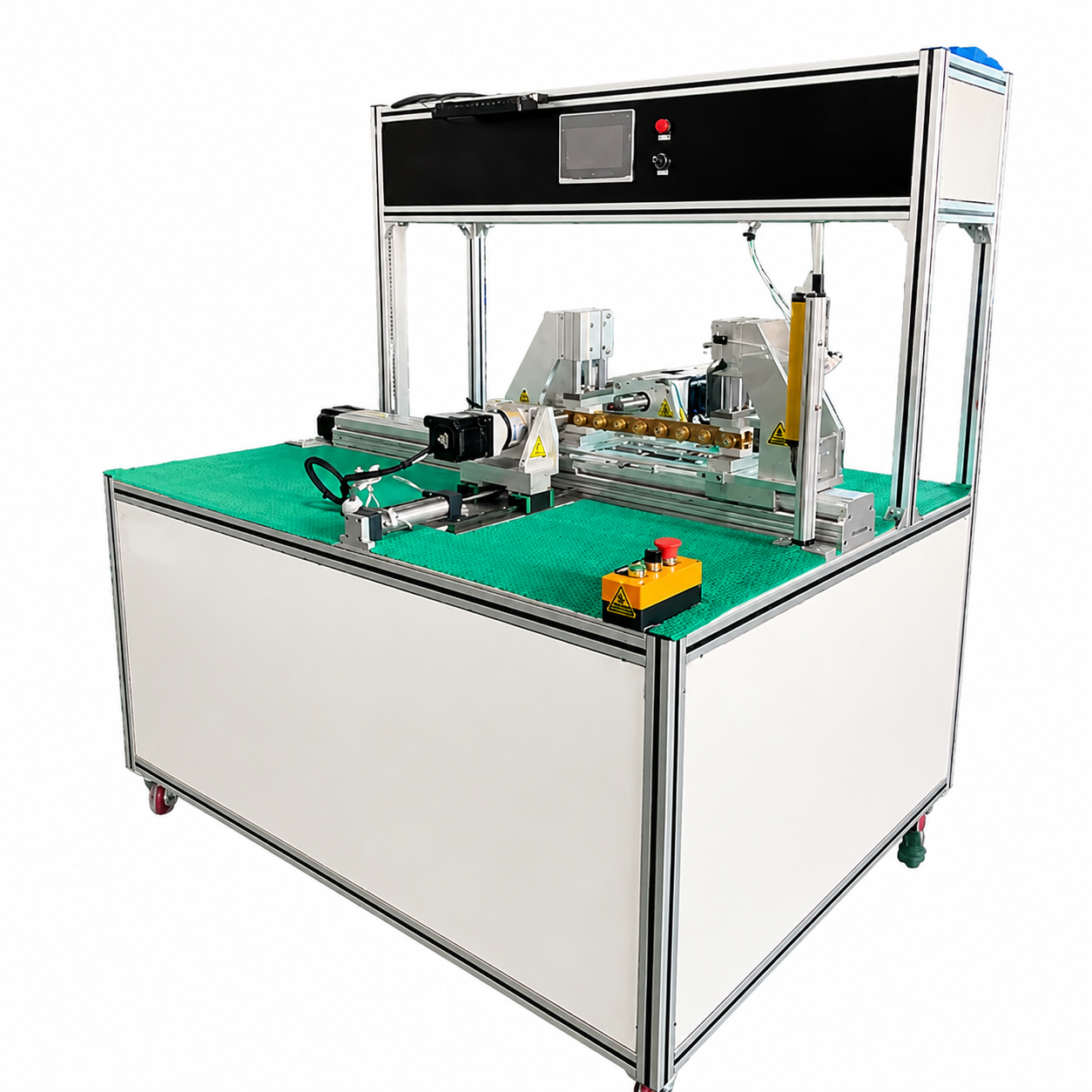

Small Faucet & Angle Valve Automatic Assembly Machine
Small Faucet & Angle Valve Automatic Assembly Machine
Small Faucet & Angle Valve Automatic Assembly Machine
Small Faucet & Angle Valve Automatic Assembly Machine
Small Faucet & Angle Valve Automatic Assembly Machine
Small Faucet & Angle Valve Automatic Assembly Machine
Specifications
Model Number :
XYT-DK540-4
Voltage :
220V,380V
MOQ :
1 set
Delivery Time :
20 work days
Control system :
PLC
Payment Terms :
L/C,T/T,Western Union
Type :
Automatic/Semi-Automatic
Price :
Negotiable
Warranty :
1 Year
Certification :
CE
Dimension(l*w*h) :
2300 x 990 x 1700 mm
Supply Ability :
3 sets per month
Brand Name :
DZ
Whole machine weight(about) :
160
Place of Origin :
CHINA
Function :
Leak Test Faucet Assembly + Angle Valve Assembly + Dry
Packaging Details :
wood
Description

Integrated assembly machine for faucet and angle valve cartridges, featuring dry leak testing, laser marking, and automatic defective product sorting. Equipped with a sliding robotic manipulator to transfer qualified products onto the conveyor line for subsequent processing.

Item Parameter
Model XGZ-3
Dimensions 2300 x 990 x 1700 mm
Frame Material Aluminum Profile + Powder-Coated Panels
Power Supply AC220V, Single Phase, Grounded
Air Supply Pneumatic
Air Pressure External Air Source ≥ 0.6 MPa
Power Consumption ≤ 2.0 kW
Workstations 1 Station
Test Functions Manifold Interface Assembly
Assembly Method Horizontal Pressing + Vertical Pressing
Main Materials Aluminum, POM, Copper & Stainless Steel
Control System PLC + 7" Touch Screen
Operation Mode Manual Loading, Pre-locking, Manual Operation + Automatic Testing Cycle
Accessories Standard Fixtures, Tooling & Maintenance Tools
Net Weight 160 kg
