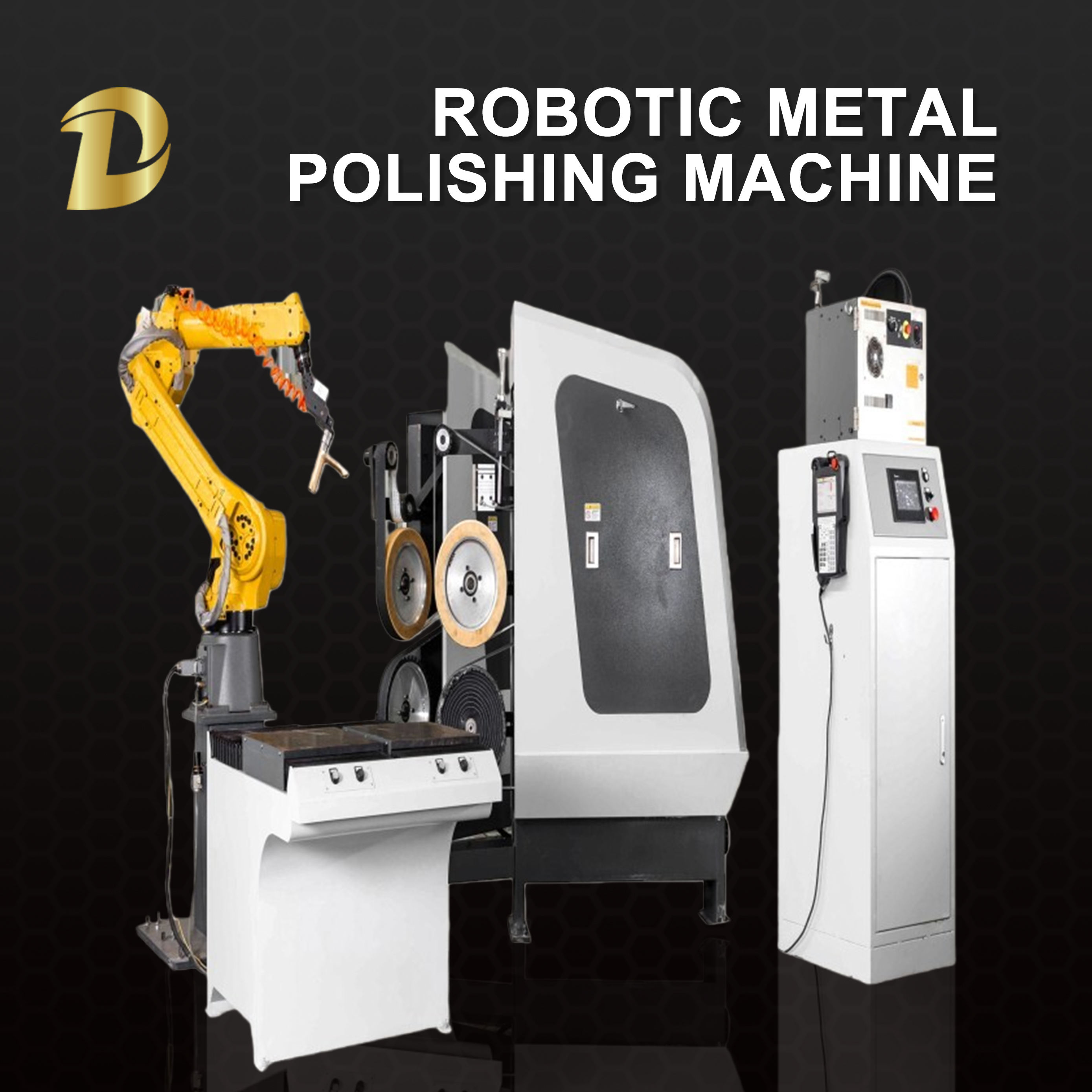

The DZ Robotic Die-Cast Aluminum Automotive Parts Deburring Cell is purpose-engineered for Tier 1 and Tier 2 automotive component suppliers processing aluminum and zinc die-cast engine brackets, transmission housings, steering knuckles, and suspension components. A FANUC M-20iD/35 robot with 35KG payload handles medium-to-large automotive castings, equipped with dual 5.5KW sand belt modules for progressive rough-to-finish deburring. The system removes parting line flash, gate vestiges, die-lubricant residue, and sharp edges from cast components, achieving consistent edge quality that satisfies automotive OEM surface finish and safety specifications for production part approval process submissions.

A 2-axis servo positioner presents the workpiece at optimal angles for complete edge access, including internal bores, deep pockets, and complex boss geometries characteristic of automotive structural castings. The robot executes programmed deburring toolpaths covering all specified edges, with edge radius control producing consistent 0.3-1.0mm edge breaks per customer specifications. An automatic tool change system enables switching between grinding belts for heavy flash removal and abrasive filament brushes for final edge radiusing. The cell includes comprehensive guarding with interlocked access doors and integrated dust extraction meeting automotive industry environmental and safety standards for production environments.

• 35KG Payload Robot: FANUC M-20iD/35 handles medium-to-large automotive die-cast parts including engine brackets, knuckles, and housing components. IP67 wrist protection ensures reliable operation in harsh grinding environments with abrasive dust exposure.
• 2-Axis Servo Positioner: Programmable rotation and tilt axes present castings at optimal angles for complete edge access. 80KG positioner payload accommodates heavy automotive structural castings with rigid hydraulic clamping for stability during grinding.
• Programmable Edge Radius Control: The system achieves consistent edge breaks from 0.3mm to 1.0mm through precise control of tool angle, contact pressure, and feed rate. Edge quality documented through in-process measurement for customer PPAP submissions.
• Automatic Tool Change: 4-station tool changer enables seamless transitions between abrasive belts for flash removal, formed wheels for edge radiusing, and filament brushes for final surface blending in a single production cycle.
• OEM-Compliant Quality: Meets automotive OEM surface finish and edge quality specifications including GM, Ford, Toyota, and Volkswagen standards. Process documentation supports IATF 16949 quality management system requirements.
• High-Volume Production: Cycle times of 45-90 seconds per component achieve throughput of 40-80 parts per hour. Designed for 24/7 operation in automotive tier supplier production environments with minimal unplanned downtime.

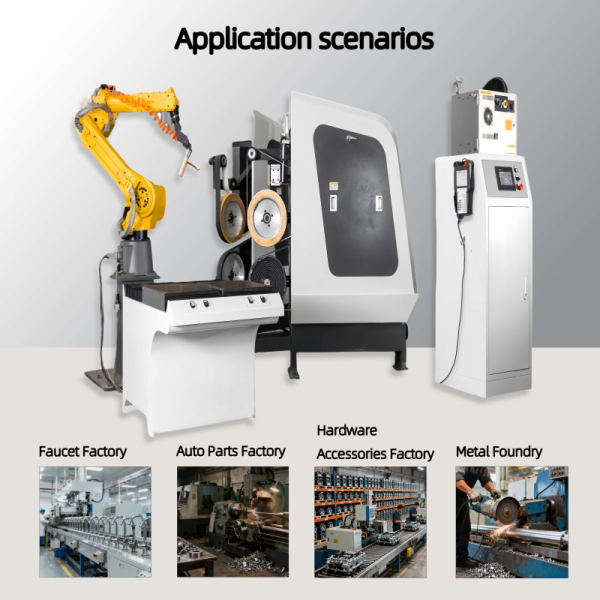

Automotive Tier 1 suppliers producing aluminum die-cast engine mounting brackets, alternator housings, and water pump bodies utilize this cell for high-volume deburring that satisfies OEM PPAP requirements. Transmission component manufacturers processing valve bodies, clutch housings, and gear carrier castings achieve consistent edge quality on complex geometries with internal oil galleries and sealing surfaces. Suspension component producers finishing steering knuckles, control arms, and brake caliper castings benefit from programmable edge radius control for safety-critical components where sharp edges are unacceptable. Chassis component manufacturers processing subframe connectors, cross-members, and reinforcement brackets achieve consistent deburring quality that improves downstream welding fit-up and corrosion protection coating adhesion.

Each cell undergoes factory acceptance testing with edge radius capability studies on customer-supplied casting samples, documented per automotive PPAP requirements including process FMEA, control plan, and measurement system analysis reports. DZ application engineers perform on-site installation, positioner calibration, and process validation runs with the customer quality team. The 12-month warranty covers the robot, positioner, and grinding equipment with optional annual process capability studies and PPAP documentation update services for new part introductions to the production portfolio.
