Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System
Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System
Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System
Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System
Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System
Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System
Specifications
Brand Name :
DZ
Model Number :
NC-64
Certification :
CE ISO
Place of Origin :
China(Mainland)
MOQ :
1unit
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30 units/per month
Delivery Time :
2weeks
Packaging Details :
wood
Dimensions (L*W*H) :
4400*3400*2900
Machine Power :
35KW
Rated Voltage :
380V
Max. Diameter of polishing wheel :
600mm
Min. Diameter of polishing wheel :
400mm
X-Axis travel (mm) :
1200
Y-Axis travel (mm) :
1100
Z-Axis travel (mm :
700
U-Axis travel (mm) :
±90°
V-Axis travel (mm) :
±360°
W-Axis travel (mm) :
±360°
Description
Full Automatic Metal Water Meter Polishing Machine
Advanced brass and zinc faucet buffing equipment integrated with robotic system for precision polishing operations.
Key Advantages
  • Uniform polishing quality without deformation of processed parts
  • High production capacity with simultaneous polishing of two equal parts per cycle
  • Flexible production with quick series changeover (approximately 10 minutes)
  • Rapid replacement of fixtures and polishing mops
  • Reduced fixture costs and lower consumption of mops and polishing compounds
  • Advanced polishing system prevents excessive temperature during operation
  • Quick and easy programming with Interactive Teach System
  • High profitability - single operator can manage multiple synchronized machines
Technical Specifications
Item Specifications
Dimensions (L×W×H) 3000 × 3100 × 2900 mm
Machine Power 17 KW
Rated Voltage 380 V
Max. Polishing Wheel Diameter 600 mm
Min. Polishing Wheel Diameter 400 mm
X-Axis Travel 1100 mm
Y-Axis Travel 900 mm
Z-Axis Travel 700 mm
U-Axis Travel ±60°
V-Axis Travel ±360°
W-Axis Travel ±360°
Max Speed X Axis 20 m/min
Max Speed Y Axis 20 m/min
Max Speed Z Axis 20 m/min
Max Speed U Axis 30°/sec
Max Speed V Axis 30°/sec
Max Speed W Axis 30°/sec

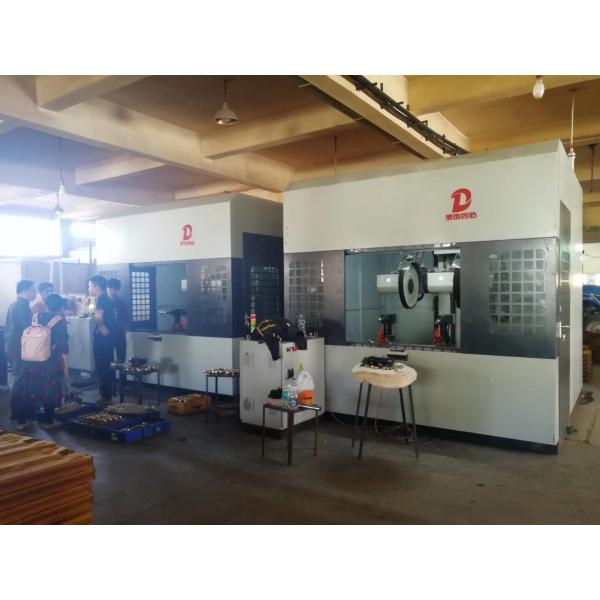

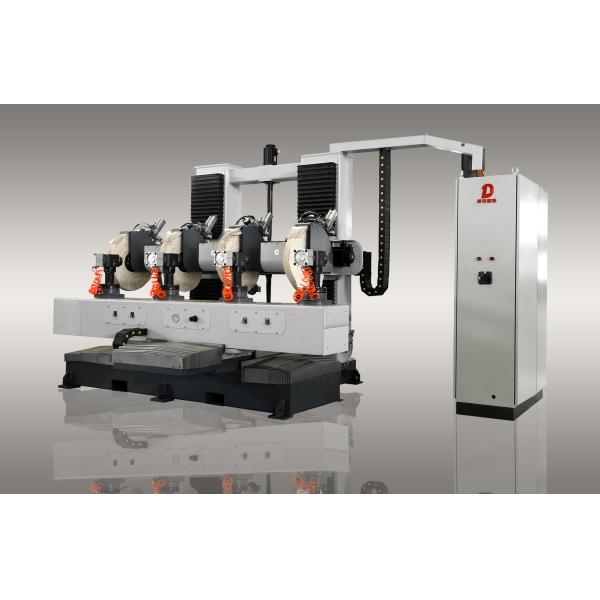

Machine Images
Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System Full Automatic Metal Water Meter Polishing Machine Brass Zinc Faucet Buffing Equipment With Robotic System
