Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Specifications
Brand Name :
DZ
Model Number :
HLD-50E
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30sets / month
Delivery Time :
30 days
Packaging Details :
wood
Price :
Negotiable
Weight :
4000KG
Voltage :
380V/50Hz
Condition :
100%New
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support,Field maintenance and repair service,Field installation
Use :
Machining, Deburring, Grinding, Polishing
Type :
Angle Polisher
Warranty :
1 Year
Name :
Grinding robotic
Function :
Machining, Deburring, Grinding, Polishing
Description
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
High-Quality Robotic Surface Grinding Machine for Water Tap Hardware
Key Features
  • Robotic cell specifically designed for grinding faucets
  • Processes brass casted faucets, zamak levers, zamak faucets, shower heads, and various sanitary ware
  • Compact design with minimal space requirements for installation
  • Customizable layout with integration for various robot brands
  • Multiple applications: machining, deburring, grinding, polishing, and satin finishing
  • Customized HMI for easy adjustment and operation
  • High adaptability for processing multiple part geometries
  • Calibration system ensuring high process repeatability
  • Capable of processing complex geometries
  • Up to 100% surface grinding processing capability
Technical Characteristics
  • FUNAC robotic M-20Ia/35M system
  • Modular programming with self-learning system for easy programming
  • Demonstrator programming method with portable handheld device
  • Manual mode for simulating workmanship grinding and recording tracks
  • Automatic operating mode with pre-set parameter programs
  • Full digital control with program save and recall capability
  • Rotary sand belt machine with multi-grade sandpaper grinding process completion in one operation
  • High precision and high efficiency performance
Technical Specifications
Parameter Specification
Working area 1800×2500mm
Feed height 200mm
Transmission X/Y rack and pinion, Z ball screw
Table structure T slot with clamp
Spindle power 4.5KW×2
Spindle speed 24000r/min
Travelling speed 25m/min
Working speed 20m/min
Working Delicacy 0.005mm
Repositioning Accuracy 0.05mm
Driving Motor Stepper
Control System DSP/Ncstudio Control System
Command Code G Code*.u00*.mmg*.plt
Power (without spindle) 1500W
Voltage AC380/50HZ
Running Environment Temperature: 0°C~45°C
Software Artcam/Type3, other CAD/CAM

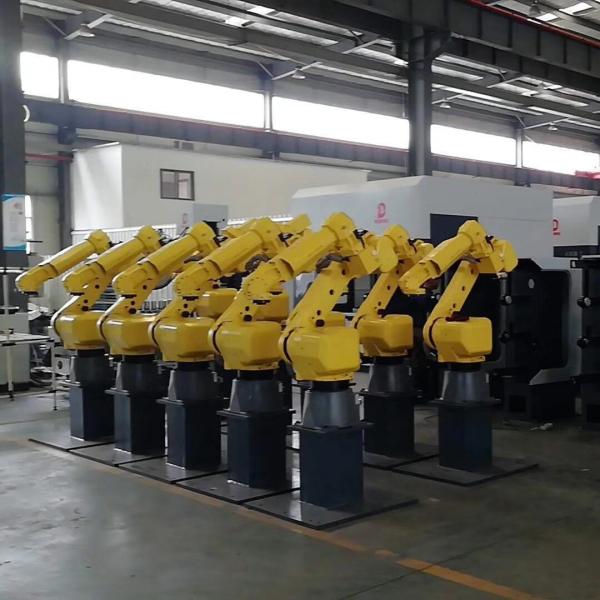

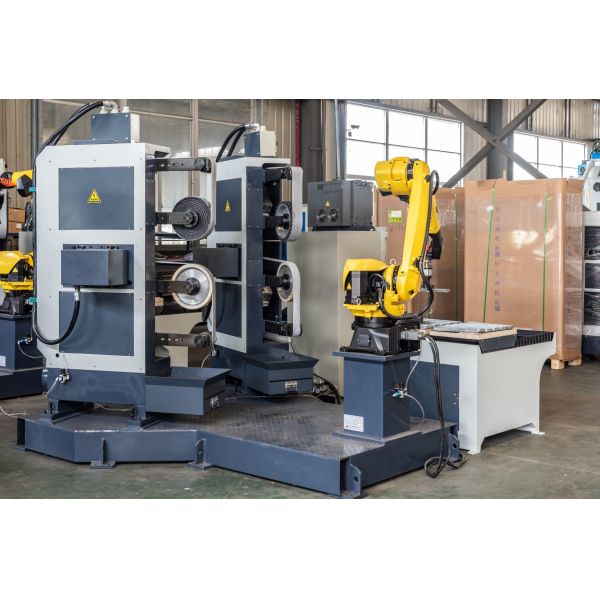

Product Images
Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding Water Tap Hardware Polishing Machine Robotic Surface Arm Automatic Grinding
Frequently Asked Questions
Q1. Where is your factory located? How can I visit it?
A: Our factory is located in Xiamen city, Fujian province, China. You can fly to Xiamen airport, and we will arrange pickup service.
Q2. Do you produce polishing machines with specific parameters according to samples?
A: Yes, we customize machines based on your samples or technical drawings. Our machines typically include different molds and fixtures for various applications like metal polishing and die casting.
Q3. What is your sample service?
A: We provide sample testing services for products that clients want to produce, provided we have the appropriate machine in stock. Customers are responsible for sample shipping costs.
Q4. What is your MOQ for machines?
A: Our minimum order quantity is normally 1 set.
Q5. Do you test all machines before delivery?
A: Yes, we perform 100% testing on all machines before delivery to ensure quality and performance.
Q6. How do you maintain long-term business relationships?
A: We maintain long-term relationships by: 1) Ensuring good quality and competitive pricing to protect customer interests; 2) Treating every customer as a partner and building genuine business relationships based on mutual respect and trust.
