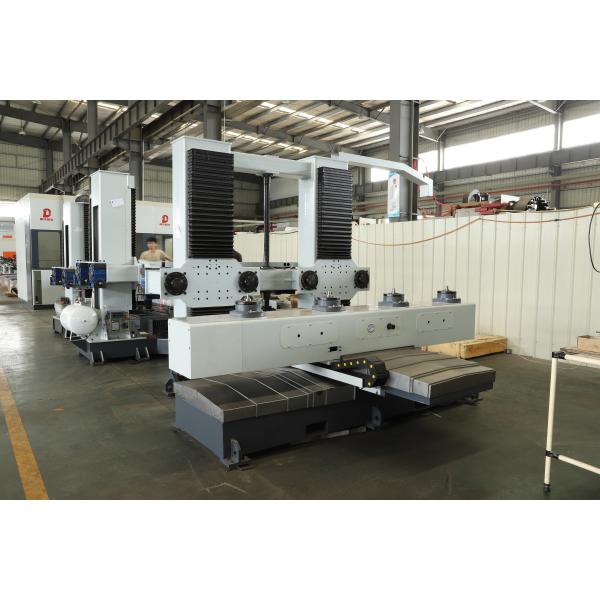

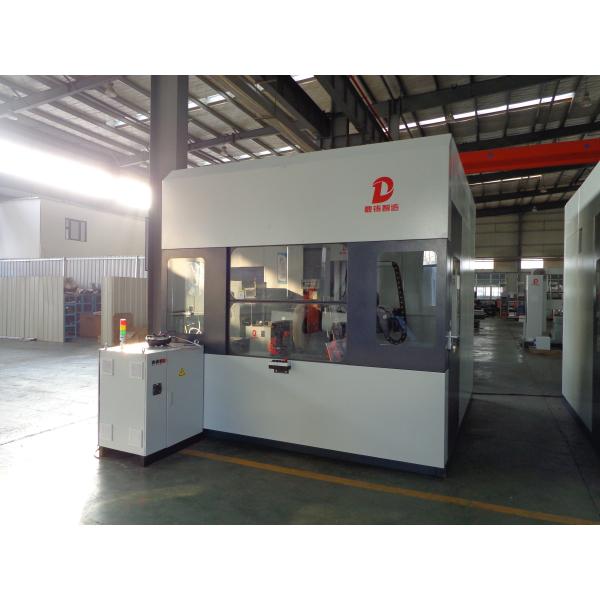

High Flexibility Sanitary Ware Parts Surface Polishing Machine With Multiple Stations Simultaneous Operation
High Flexibility Sanitary Ware Parts Surface Polishing Machine With Multiple Stations Simultaneous Operation
High Flexibility Sanitary Ware Parts Surface Polishing Machine With Multiple Stations Simultaneous Operation
High Flexibility Sanitary Ware Parts Surface Polishing Machine With Multiple Stations Simultaneous Operation
Specifications
Brand Name :
DZ
Model Number :
NC-64
Place of Origin :
China(Mainland)
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100sets/per momth
Delivery Time :
30work days
Packaging Details :
wood
Certification :
CE ISO
Warranty :
1year
After-sales service :
Engineers can be training and installing in overseas
Condition :
New
Application :
Metal
Type :
Bench Polisher
name :
automatic metal polishing machine
Description
High Flexibility Sanitary Ware Parts Surface Polishing Machine With Multiple Stations Simultaneous Operation
This advanced automatic polishing system features multiple manipulators with 6-axis rotary capability, enabling simultaneous operation across multiple stations for enhanced flexibility and production efficiency.
Applications
  • Faucets
  • Auto spare parts
  • Locks and door handles
  • Various metals and jewelry accessories
  • Polishing products size range: Φ 280*280
Photos of Polishing Products
High Flexibility Sanitary Ware Parts Surface Polishing Machine With Multiple Stations Simultaneous Operation High Flexibility Sanitary Ware Parts Surface Polishing Machine With Multiple Stations Simultaneous Operation
Product Features
  • Automatic polishing system with 4 manipulators featuring 6-axis rotary capability
  • Multiple stations simultaneous operation for high flexibility and production efficiency
  • PROMAX motion control technology from Italy for stable performance and high control accuracy
  • Demonstrator programming with portable handheld device
  • Manual mode to simulate workmanship polishing and record tracks
  • Automatic operating mode with pre-set parameters program
  • Polishing pressure and wear compensation control
  • Linear speed compensation for cloth wheel diameter reduction
  • Programmable wax spraying time and frequency settings
  • Choice of solid wax or liquid wax application
  • Full digital control with capacity to store 50 programs
  • CN/EN language display on touch panel for easy operation
  • Fault codes display and alarm pages for quick troubleshooting
High Flexibility Sanitary Ware Parts Surface Polishing Machine With Multiple Stations Simultaneous Operation
Technical Parameters
Code Item Specifications-2station Specifications-4station
1 Dimensions (L*W*H) 3000*3100*2900mm 4400*3400*2900mm
2 Machine Power 16.5KW 35KW
3 Rated Voltage 380V 380V
4 Max. Diameter of polishing wheel 600mm 600mm
5 Min. Diameter of polishing wheel 400mm 400mm
6 X-Axis travel (mm) 1200 1200
7 Y-Axis travel (mm) 1100 1100
8 Z-Axis travel (mm) 700 700
9 U-Axis travel (mm) ±90° ±90°
10 V-Axis travel (mm) ±360° ±360°
11 W-Axis travel (mm) ±360° ±360°
Layout
High Flexibility Sanitary Ware Parts Surface Polishing Machine With Multiple Stations Simultaneous Operation
