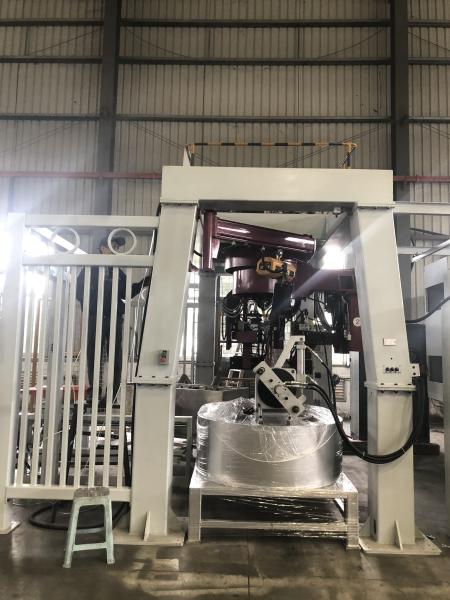

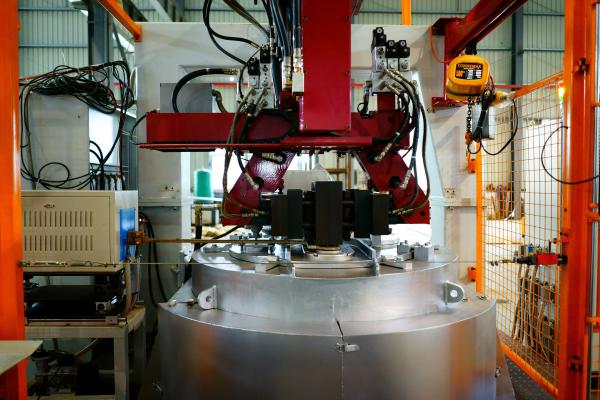

Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine
Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine
Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine
Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine
Specifications
Brand Name :
DZ
Model Number :
LPDC
Certification :
CE ISO
Place of Origin :
China(Mainland)
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 sets/per month
Delivery Time :
30 work days
Packaging Details :
wood
Condition :
New
Warranty :
1 Year
After-sales Service :
metal die casting machine
Air pressure :
6KG
Application :
Metal
Die Bath Angle :
0-90º
Description

Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine

Advantage:

1. Quality assurance, less impact from human factors.

2. Low labor intensity and good production environment.

3. high productivity.

4. Metal burns are 3% less. (Annual copper volume 2000T enterprises can save 60T copper).

5. Suitable for thin wall and complex parts casting.

6. The casting is dense and the quality is stable.

7. Two manipulators can be operated independently, the parameters are independently adjustable, and two can be operated at the same time, or one machine can be changed or maintained.

8. Two receiving vehicles, two stone black slots correspond to different robots, and different products are discharged separately.

9. The melting rate of the electric furnace is 520Kg/H, which can meet the simultaneous production of two robots, saving energy and environmental protection.

10. Rotary servo drive, precision low backlash reducer drive, smooth and efficient.


2- Manipulators Low Pressure Die Casting Machine Technical Parameters


Code


Item


Specifications

1

Dimension ( L*W*H)

7000*7000*3680

2

Machine Power

180KW

3

Rated Voltage

380V

4

Manipulator Quantity

2

5

Maximum Weight of Die

180KG

6

Maximum Dimension of Die

500*400*250

7

Furnace Power

2*80KW

8

Furnace Melting Capacity

520Kg

9

Furnace Quantity

1

10

Die Cleaning Box Quantity

1

11

Feeder Quantity

1

12

Blackwash Tank Quantity

1

13

Hoist Quantity

1

14

Lift Tube Quantity

2

15

Pneumatic Pressure

6KG

16

Water Pressure

3KG

17

Maximum Furnace Temperature

1250℃

18

Cooling Water Temperature

20±2℃

19

Maximum Speed of Manipulator

9R/Min.

20

Maximum Die Clamping Stroke

370mm

21

Die Bath Angle

0-90º

22

Ejector Pin Pressure

540KG

23

Ejector Pin Stroke

40mm

24

Pouring Pressure

50-1200bar

25

Maximum Lift Weight of Hoist

500kg

Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine

Metal Alloy Casting Machine , Low Pressure Gravity Die Casting MachineMetal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine

Metal Alloy Casting Machine , Low Pressure Gravity Die Casting Machine

Click the link to view video:

https://www.youtube.com/watch?v=zmWTnfFq-mM
