Multiple Stations Sanitary Fittings Bathroom Faucets Polishing Machine Stainless Steel Buffing Equipment
Multiple Stations Sanitary Fittings Bathroom Faucets Polishing Machine Stainless Steel Buffing Equipment
Multiple Stations Sanitary Fittings Bathroom Faucets Polishing Machine Stainless Steel Buffing Equipment
Multiple Stations Sanitary Fittings Bathroom Faucets Polishing Machine Stainless Steel Buffing Equipment
Specifications
Brand Name :
DZ
Model Number :
NC-62/64
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30sets/per month
Delivery Time :
20 work days
Packaging Details :
wood
Price :
Negotiable
Weight :
6000kg
Voltage :
380V / 50Hz
Condition :
100%New
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service,Field installation
Dimension(l*w*h) :
4400X3400X2900
Application :
sanitary fittings polishing
Warranty :
1 Year
Description

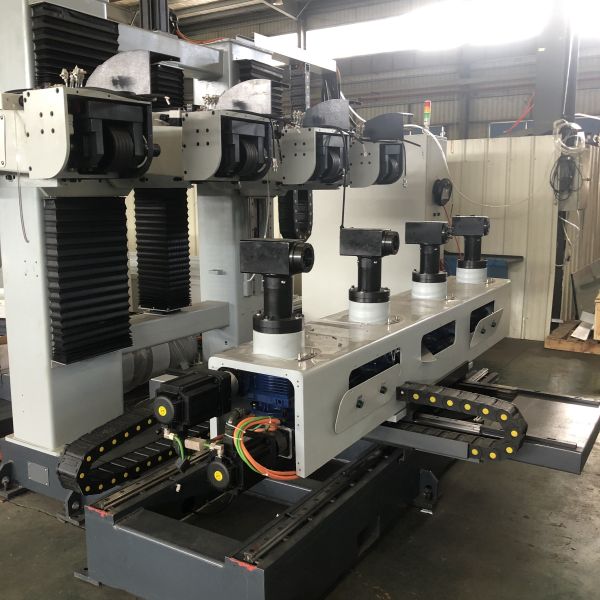

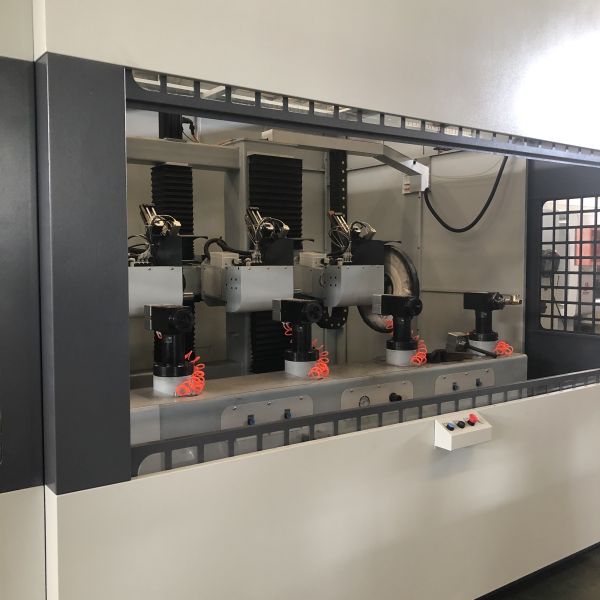

Multiple Stations Sanitary Fittings Polishing Machine
Advanced stainless steel buffing equipment designed for high-efficiency polishing of bathroom faucets and sanitary fittings with precision automation.
Key Advantages
  • Four manipulators with 6-axis rotary system providing high flexibility and productivity
  • Four polishing wheels process four workpieces simultaneously for maximum output
  • Italian PROMAX control system ensures high precision and movement stability
  • Programmable software with portable handheld device for manual simulation and automated operation
Technical Features
  • 6-axes DZ servo CNC system control with digital positioning and speed setting
  • Servo motor-driven worm reducer gear for precise polishing head and workpiece motion
  • Two polishing unit heads processing two workpieces per cycle
  • Production output: 4 pieces per 30-50 seconds (depending on product and process)
  • Suitable for complex shape handles, pipes, and regular shape products
  • Total power: 16.25KW with 5.5KW motors per polishing head
Technical Specifications
Item Parameter Remarks
Size 3000×3160×2772 (L×W×H)
Power 16.25KW
Rated Voltage 380V 50Hz
Max. Polishing Mop Diameter 600mm
Min. Polishing Mop Diameter 400mm
X Axis Travel 1100
Y Axis Travel 900
Z Axis Travel 700
U Axis Travel ±60°
V Axis Travel ±360°
W Axis Travel ±360°
Product Images
Multiple Stations Sanitary Fittings Bathroom Faucets Polishing Machine Stainless Steel Buffing Equipment Multiple Stations Sanitary Fittings Bathroom Faucets Polishing Machine Stainless Steel Buffing Equipment Multiple Stations Sanitary Fittings Bathroom Faucets Polishing Machine Stainless Steel Buffing Equipment Multiple Stations Sanitary Fittings Bathroom Faucets Polishing Machine Stainless Steel Buffing Equipment
