High Efficiency Automatic Metal Polishing Mahicne Easy Operation Buffing Equipment
High Efficiency Automatic Metal Polishing Mahicne Easy Operation Buffing Equipment
High Efficiency Automatic Metal Polishing Mahicne Easy Operation Buffing Equipment
High Efficiency Automatic Metal Polishing Mahicne Easy Operation Buffing Equipment
Specifications
Brand Name :
DZ
Model Number :
NC-62/64
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C T/T Western Union
Supply Ability :
30 sets/per month
Delivery Time :
20 Days
Packaging Details :
Wood Case
Voltage :
380V/50Hz (others are available)
Condition :
New
Weight :
6000KG
Dimension(l*w*h) :
5800x3400x2900
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field installation,commissioning and training
Application :
Deburring Polishing Chamfer Rust Removal
Power(w) :
47KW
Advantage :
Fully Automatic
Warranty :
1 Year
Control system :
PLC
Motor :
servo motor
Machine Type :
Polishing Grinding Machine
core components :
Bearing, Motor, Pressure Vessel
machinery test report :
Provided
warranty :
12 months
video outgoing-inspection :
Provided
power (kw) :
14.5
place of origin :
Fujian, China
After-sales Service Provided :
Online Support
Description
High Efficiency Automatic Metal Polishing Machine
This advanced buffing equipment offers easy operation and high efficiency for various metal polishing applications.
Key Features

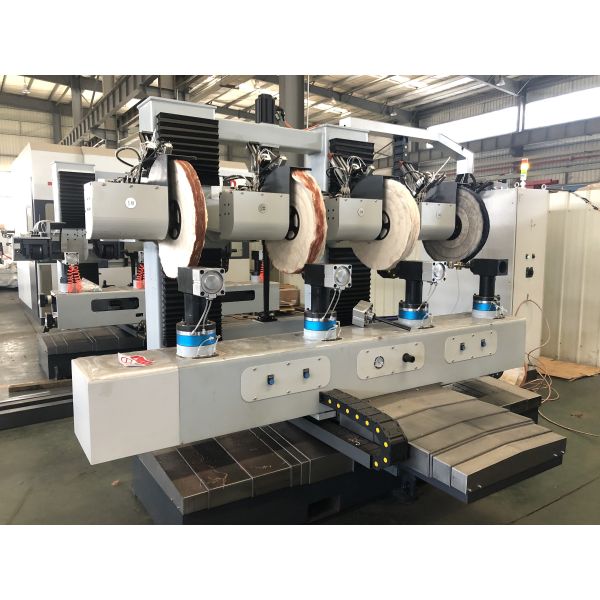

  1. 6-axis four-station polishing robot with six degrees of freedom, enabling four stations to work simultaneously for flexible and efficient operation
  2. Advanced motion control technology ensures stable performance and precise control
  3. Teaching programming method uses manual mode to simulate polishing movements and automatically records the track for consistent automated operation
  4. Automatic polishing wheel compensation detects wear and compensates from all directions
  5. Linear speed compensation automatically increases rotating speed as cloth wheel diameter decreases
  6. Fully digital control with programmable memory for repeated use

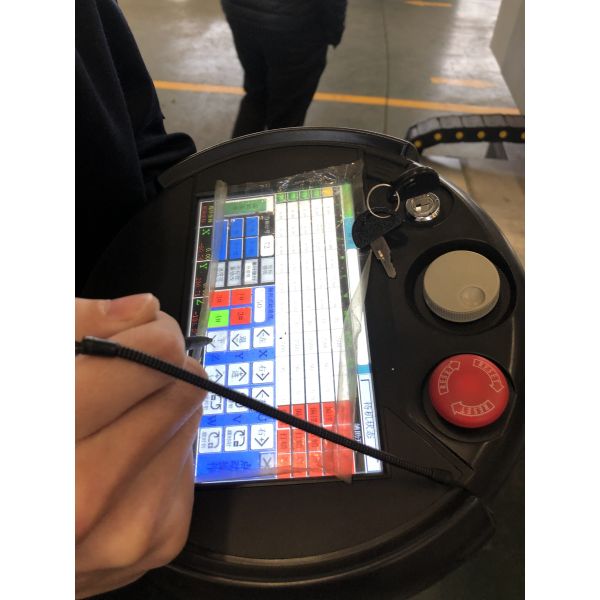

  7. User-friendly touch panel for easy function and parameter setting with defect code display for simplified inspection
Technical Specifications
Item Parameter Remarks
Size (L×W×H) 3000×3160×2772 mm
Power 16.25 KW
Rated Voltage 380V 50Hz
Max. Polishing Mop Diameter 600 mm
Min. Polishing Mop Diameter 400 mm
X Axis Travel 1100 mm
Y Axis Travel 900 mm
Z Axis Travel 700 mm
U Axis Travel ±60°
V Axis Travel ±360°
Operating Voltage 380V
Table Size (LxW) 2740×375 mm
Height from Ground (without fixture) 880 mm
Jig Rotating Speed 20 RPM
Station Size/Working Dia (max) 350 mm
Station Rotational Speed Motor 1500 rpm
Standard Equipment & Components
Item Brand Remark
Motion Control System PROMAX Italy
Servo Motor PROMAX Italy
Variable Frequency Compensation System + Control Card AELTA
Cloth Wheel Motor Spindle German-brand PLC/System
Main Low Voltage Electrical SCHNEIDER
Linear Guide Rail and Screw HIWIN
Reduction Box Rossi Italy
Bearing NSK
Steering Gear of Fixture TAIWAN
Components Clamping Pneumatic
Table Type Movable - table moving by screw rod/ball screw, driven by servo motor
High Efficiency Automatic Metal Polishing Mahicne Easy Operation Buffing Equipment High Efficiency Automatic Metal Polishing Mahicne Easy Operation Buffing Equipment
