CE ISO Brass Faucet Polishing Machine Sanitary Fittings Buffing Equipment For Metal Parts
CE ISO Brass Faucet Polishing Machine Sanitary Fittings Buffing Equipment For Metal Parts
CE ISO Brass Faucet Polishing Machine Sanitary Fittings Buffing Equipment For Metal Parts
CE ISO Brass Faucet Polishing Machine Sanitary Fittings Buffing Equipment For Metal Parts
Specifications
Brand Name :
DZ
Model Number :
NC-62/64
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30sets/per month
Delivery Time :
30days
Packaging Details :
wood
Weight :
6000KG
Voltage :
380V/50Hz
Condition :
100%New
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support,Field maintenance and repair service,Field installation
Dimension(l*w*h) :
4400X3400X2900
Application :
Metal polishing
Control system :
PLC
Warranty :
1 Year
Name :
Fully Automatic Stone Polishing Machine
Function :
polishing granite
Description

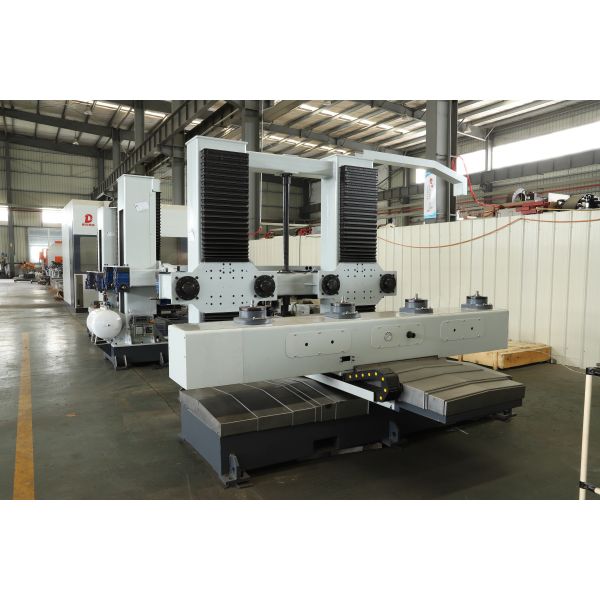

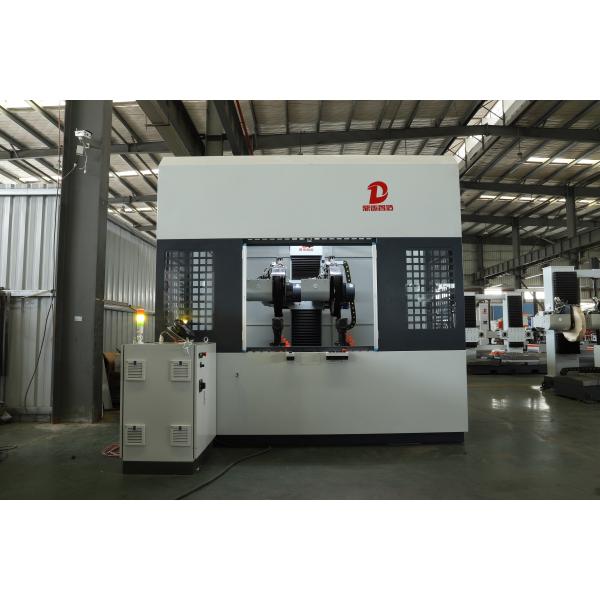

CE ISO Brass Faucet Polishing Machine - Sanitary Fittings Buffing Equipment

Advanced automated polishing system designed for metal parts and sanitary fittings with precision engineering and high-efficiency operation.

Key Advantages
  • Four working stations operate simultaneously with single programming cycle
  • Precision angle polishing program for complex part detailing
  • Nested precise polishing method for comprehensive product coverage
  • All-new design and structural configuration
  • High-density dust removal system with automatic lubrication
  • Ball linear guideway for extended machine lifespan
Technical Specifications
Parameter Value
Machine Size (L×W×H) 3000×3160×2772 mm
Power Rating 16.25 KW
Rated Voltage 380V 50Hz
Max. Polishing Mop Diameter 600mm
Min. Polishing Mop Diameter 400mm
X Axis Travel 1100 mm
Y Axis Travel 900 mm
Z Axis Travel 700 mm
U Axis Travel ±60°
V Axis Travel ±360°
Table Size (L×W) 2740×375 mm
Height from Ground 880 mm
Jig Rotating Speed 20 RPM
Station Size/Working Diameter 350 mm max
Station Rotational Speed Motor 1500 rpm
Premium Component Equipment
Component Brand
Motion Control System PROMAX Italy
Servo Motor PROMAX Italy
Variable Frequency Compensation System + Control Card AELTA
Cloth Wheel Motor Spindle German-standard automation system
Main Low Voltage Electrical SCHNEIDER
Linear Guide Rail and Screw HIWIN
Reduction Box Rossi Italy
Bearing NSK
Steering Gear of Fixture TAIWAN
Components Clamping Pneumatic
Table Type Movable - table moving by screw rod/ball screw, driven by servo motor
