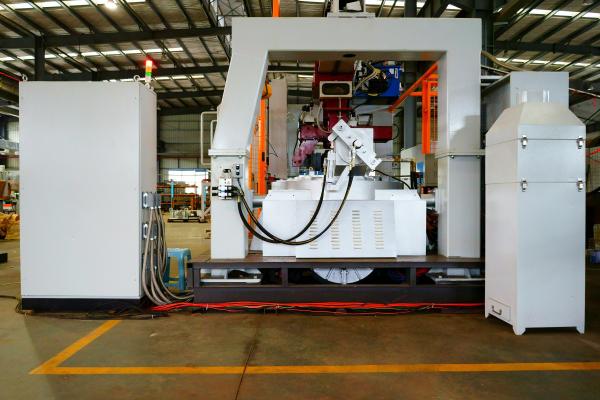

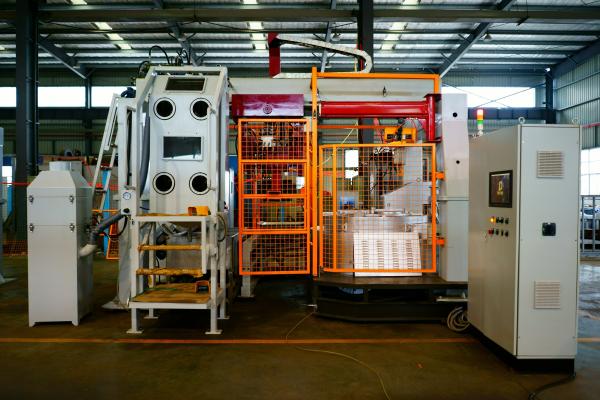

Features Of Low Pressure Gravity Die Casting Machine

●Automatically control the temperature of the aluminum/brass/zinc liquid through a high-precision intelligent temperature controller.

●Automatic control with Siemens PLC and touch screen system, high reliability.

●Using the low-pressure casting system developed by our casting machine company, it has been used for many generations, and it is continuously upgraded according to customer feedback, and the function is perfect.

●With manual and automatic dual working mode.

●In the manual mode, the casting process can be operated.

Advantage:

Furnace:

1.The electric furnace remains stationary;Die automatic falling and smooth running,Casting quality is guaranteed.

2.Large melt content up to 1800kg;There's very little change in temperature after feed the stove
3.The furnace is round and does not deform easily,It is effectual to keep warm, energy conservation.90KW was bable to satisfy 1-Manipulator
Operating system:

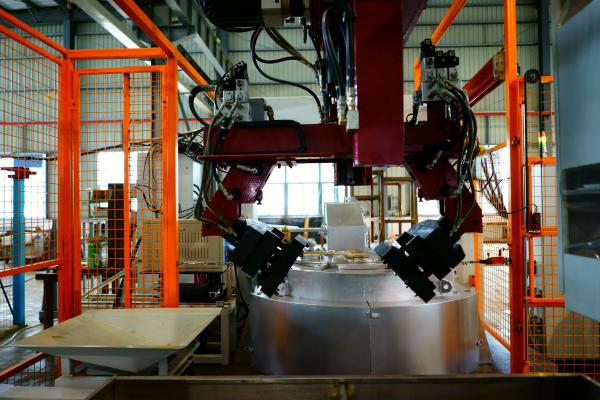

One person operates 2-manipulators like One person operates 2 equipments and Can produce two different products at the same time

Riser tube:

3 riser tubes,be Able to meet different product process requirements.

Riser Tube heating method:

1. The riser tube on furance cover are with ceramic sealings;

2. Riser Tube heating method: Medium frequency electricity heating, power 60KW; average power consumption: 7KW;

3. Heating time till 900℃ ≈ 90 seconds 4. Contains water cooling system.

Hydraulic system:

1.Components supplies with internationa high quality brands: SUN,REXROTH,YUKEN etc.

2.The components are special used, with performances of high stability, strong protection from contamination, suitable for water-based hydraulic oil operation etc.

3.The hydraulic oil ( Ethylene glycol ) works at low temperature, stable quality, not get deteriorated.

4.Servo motor driving, no vibration. saves 40% of the electricity.

Click the link to view video:

https://www.youtube.com/watch?v=zmWTnfFq-mM
