Automatic 6 Axis Buffing Robotic Brass Valve Body Finishing Copper Surface Industrial Polishing Machine For Sanitary Ware
Automatic 6 Axis Buffing Robotic Brass Valve Body Finishing Copper Surface Industrial Polishing Machine For Sanitary Ware
Automatic 6 Axis Buffing Robotic Brass Valve Body Finishing Copper Surface Industrial Polishing Machine For Sanitary Ware
Automatic 6 Axis Buffing Robotic Brass Valve Body Finishing Copper Surface Industrial Polishing Machine For Sanitary Ware
Automatic 6 Axis Buffing Robotic Brass Valve Body Finishing Copper Surface Industrial Polishing Machine For Sanitary Ware
Automatic 6 Axis Buffing Robotic Brass Valve Body Finishing Copper Surface Industrial Polishing Machine For Sanitary Ware
Specifications
Brand Name :
DZ
Model Number :
NC64
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
30sets/per month
Delivery Time :
20 working days
Packaging Details :
wood
Price :
Negotiable
Weight :
5000Kg
Voltage :
380V/50Hz
Condition :
100%New
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field maintenance and repair service,Field installation
Use :
polishing and deburred
Dimension(l*w*h) :
4400x3400x2100mm
Application :
Sanitary Ware - Water Faucets - Water Valves
Control system :
PLC
Warranty :
1 Year
Name :
Fully Automatic Stone Polishing Machine
Function :
polishing granite
Spindle power :
5.5kw Machinical Electric Spindle
Usage :
Metal Stainless Steel Tank grinding and buffing machine,stone surface polishing shinning
Description
Automatic 6 Axis Buffing Robotic Brass Valve Body Finishing Copper Surface Industrial Polishing Machine For Sanitary Ware

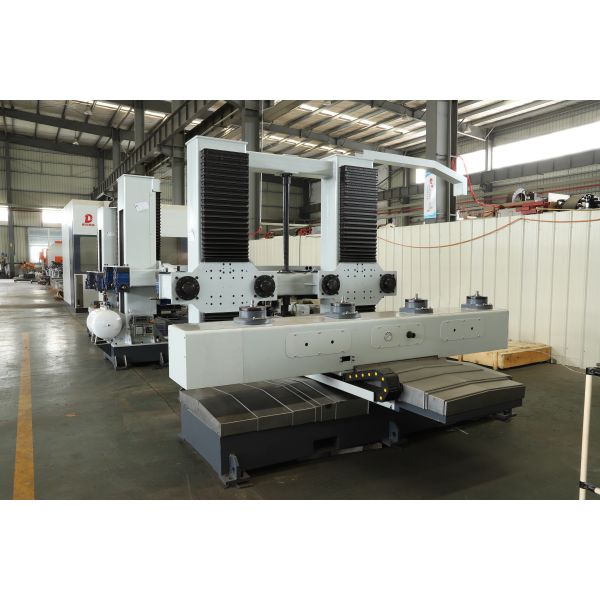

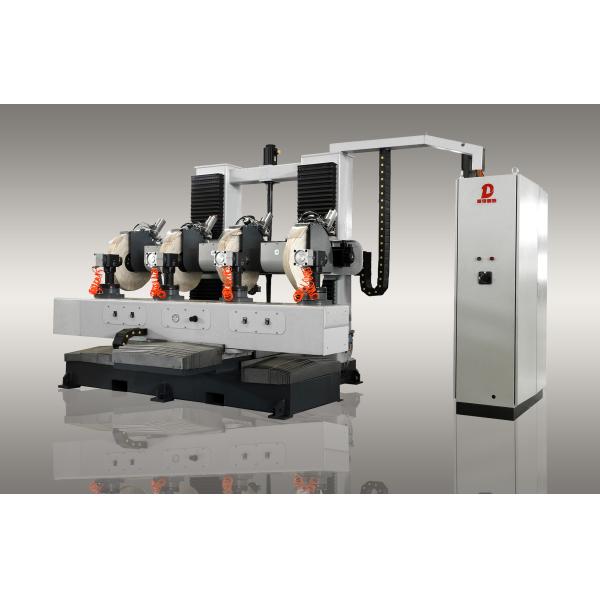

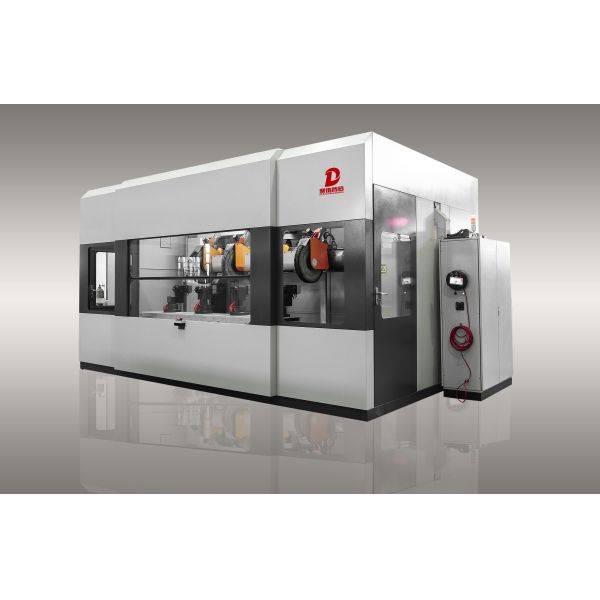

This advanced automatic polishing system features 4 manipulators with 6-axis rotary technology, designed specifically for precision finishing of brass valve bodies and copper surfaces in sanitary ware manufacturing.
Key Features & Capabilities
  • Multiple stations simultaneous operation for high flexibility and production efficiency
  • Italian PROMAX motion control technology for stable performance and high accuracy
  • Teaching programming with portable handheld device for manual simulation and automated operation
  • Automatic polishing pressure and wear compensation control
  • Linear speed compensation for consistent polishing quality
  • Programmable wax application with choice of solid or liquid compound
  • Fully digital control with capacity for 50 program storage
  • Multi-language touch panel display with fault code diagnostics
Technical Specifications
Parameter Specification
Dimensions (L×W×H) 3000 × 3100 × 2900 mm
Machine Power 17 KW
Rated Voltage 380 V
Max. Polishing Wheel Diameter 600 mm
Min. Polishing Wheel Diameter 400 mm
X-Axis Travel 1100 mm
Y-Axis Travel 900 mm
Z-Axis Travel 700 mm
U-Axis Travel ±60°
V-Axis Travel ±360°
W-Axis Travel ±360°
Max. Speed X Axis 20 m/min
Max. Speed Y Axis 20 m/min
Max. Speed Z Axis 20 m/min
Max. Speed U Axis 30°/sec
Max. Speed V Axis 30°/sec
Max. Speed W Axis 30°/sec
Automatic 6 Axis Buffing Robotic Brass Valve Body Finishing Copper Surface Industrial Polishing Machine For Sanitary Ware
