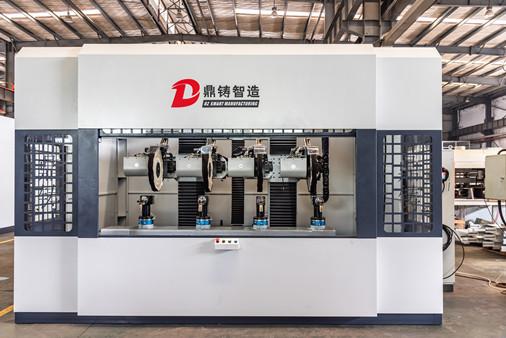

CNC Control Robotic Buffing Machine / Polishing / Finishing Machine For Brass Casted Faucets
CNC Control Robotic Buffing Machine / Polishing / Finishing Machine For Brass Casted Faucets
CNC Control Robotic Buffing Machine / Polishing / Finishing Machine For Brass Casted Faucets
CNC Control Robotic Buffing Machine / Polishing / Finishing Machine For Brass Casted Faucets
CNC Control Robotic Buffing Machine / Polishing / Finishing Machine For Brass Casted Faucets
CNC Control Robotic Buffing Machine / Polishing / Finishing Machine For Brass Casted Faucets
Specifications
Brand Name :
DZ
Model Number :
NC-62
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30sets /per day
Delivery Time :
30days
Packaging Details :
wood
Weight :
6000KG
Voltage :
380V/50Hz
Condition :
100%New
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support,Field maintenance and repair service,Field installation
Application :
Buffing ,Polishing
Control system :
PLC
Warranty :
1 Year
Name :
Fully automatic polishing machine
Function :
polishing granite
Usage :
Metal Stainless Steel Tank grinding and buffing machine
Description

Deburring, Polishing, Brightening For Brass Casted Faucets, Zamak,Zamak Faucets, Shower Heads And Any Sanitary

I.TECHNICAL PARAMETERS

No Items Specifications
1 Dimensions (L*W*H) 3000*3100*2900mm
2 Machine Power 17KW
3 Rated Voltage 380V
4 Max. Diameter of polishing wheel 600mm
5 Min. Diameter of polishing wheel 400mm
6 X-Axis travel (mm) 1100
7 Y-Axis travel (mm) 900
8 Z-Axis travel (mm) 700
9 U-Axis travel (mm) ±60°
10 V-Axis travel (mm) ±360°
11 W-Axis travel (mm) ±360°
12 Max.speed X axis 20m/min
13 Max.speed Y axis 20m/min
14 Max.speed Z axis 20m/min
15 Max.speed U axis 30°/sec.
16 Max.speed V axis 30°/sec.
17 Max.speed W axis 30°/sec.

II.FEATURES

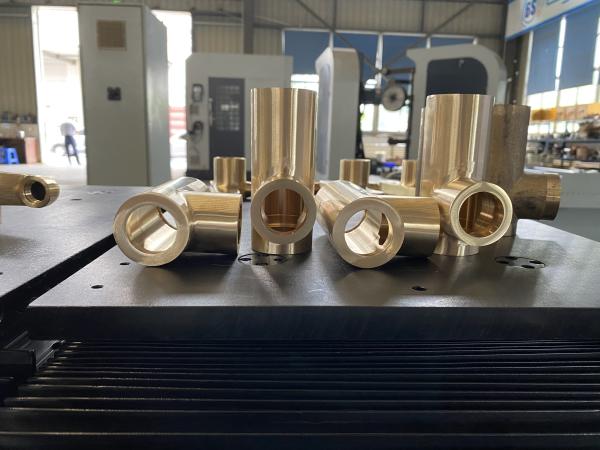

Sypical products to process: Brass casted faucets, zamak
levers,zamak faucets, shower heads and any sanitary ware
Rotary transfer with CNC control system
Multi-purpose Machine: Deburring, Polishing, Brightening Satin
Easy and intuitive teach-in programming system
Pressure control: disc wear control with automatic
compensation
High productivity: 4 simultaneous part processing
High adaptability: Multiple geometries processin
Ultra flexible: multi part flow. Up to 4 simultaneous parts processing
Model change in seconds
Quick change of consumables and grippers
Low operating cost: energy efficient, minimized consumption of discs and compound
