Specifications
MOQ :
100
Price :
10-20
Payment Terms :
L/C,D/A,D/P
Supply Ability :
10000
Delivery Time :
5-9
Test Equipment :
Japan Keyence IM7000
Material Capabilities :
Stainless Steel
Diameter :
0.325inch, 0.13inch
Oem Service :
Acceptable
Size :
Customized
Quality :
100% Inspection
Coaxiality :
±0.01mm
Processing :
CNC machining,CNC milling,CNC turning
Service :
OEM/ODM/Customized/Design
Design Software :
Pro/E, Solidworks, UG
Type :
Drilling,Other Machining Services
Delivery Port :
Shanghai
Parallelism Tolerance :
±0.02mm
Warranty :
1 Year
Casting Method :
Die Casting
Description
Product Description

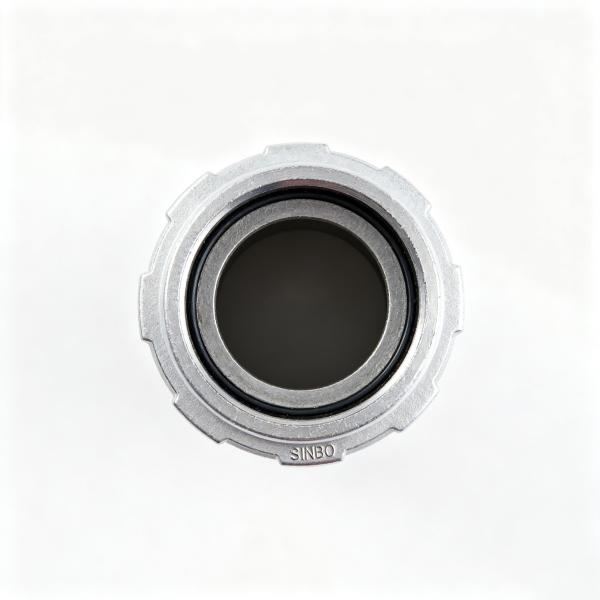

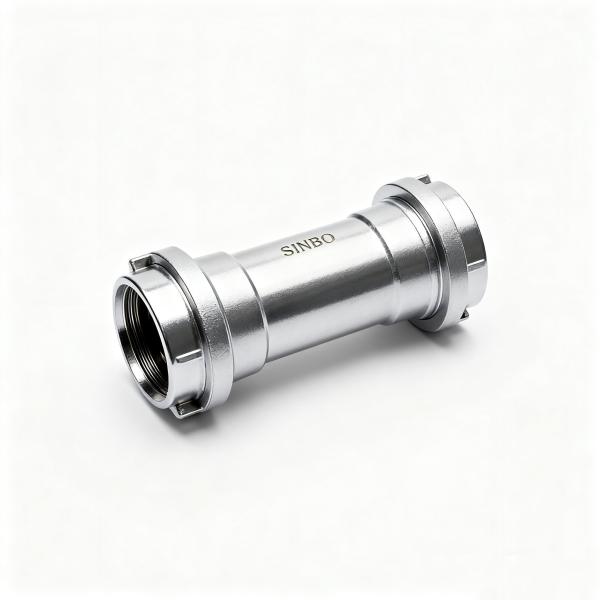

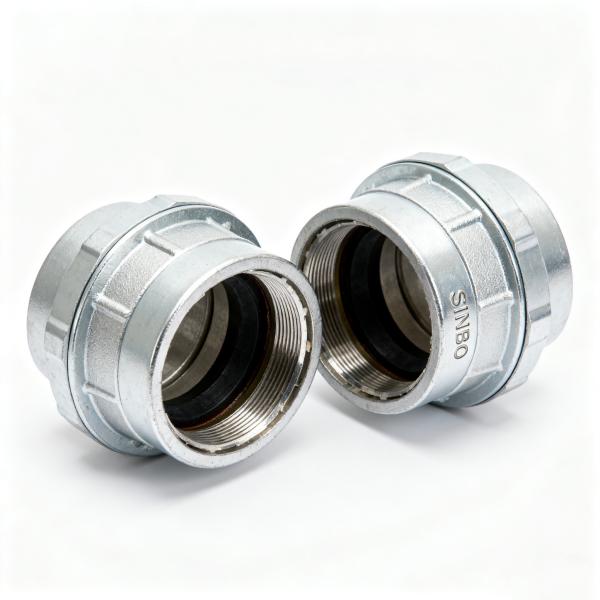

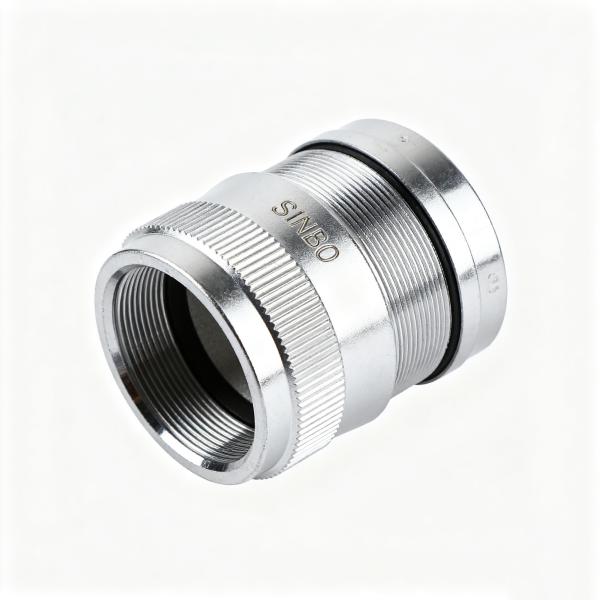

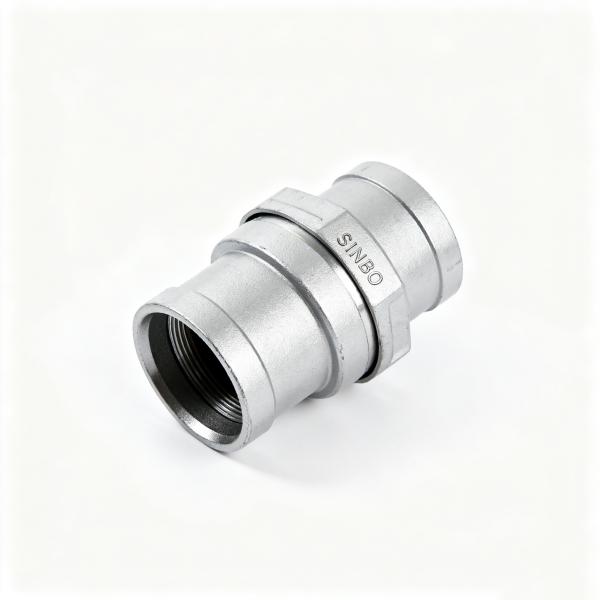

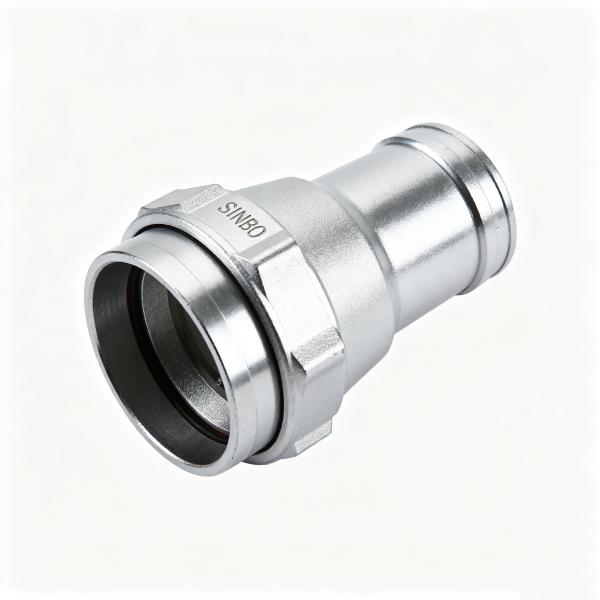

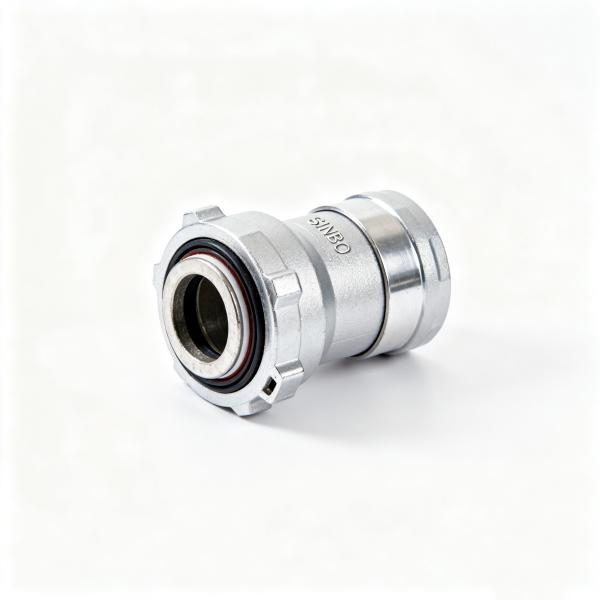

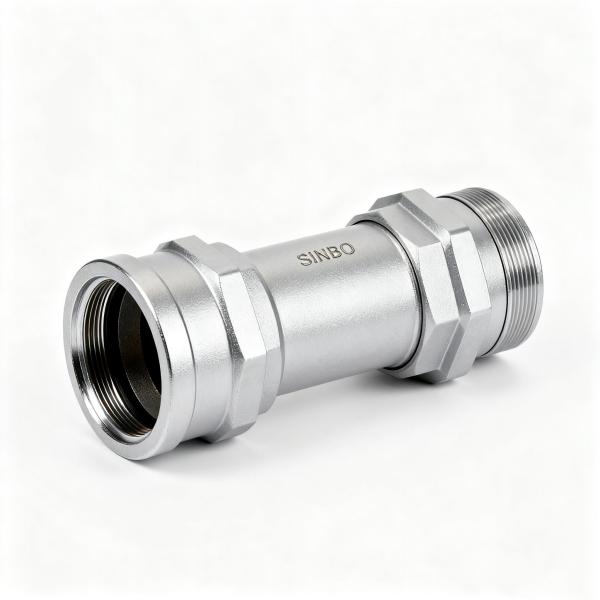

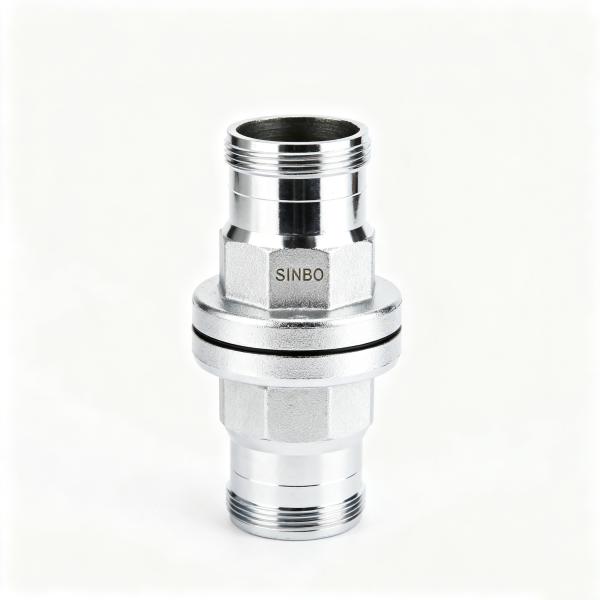

The fire hose quick connector is a critical mission-specific module for special robots, designed for high-risk environments such as explosion-proof, rescue, and aerospace operations. Manufactured from full brass through CNC machining centers (e.g., VMC1060 series with 0.02~0.03mm precision), it ensures quick connection and reliable sealing. This connector enables rapid coupling between hoses, fire trucks, hydrants, or water guns, reducing connection time to 7.8 seconds (80% faster than traditional methods), significantly enhancing robot response efficiency in firefighting tasks.

Features
  1. Quick Connect/Disconnect: Leveraging internal claw grooves, it connects with a 90° clockwise rotation and disconnects counterclockwise, enabling tool-free operation.
  2. High Sealing Performance: Multi-layer sealing structure (rubber seals, seal seats, and grooves) prevents leakage under high pressure.
  3. Full Brass Construction: Corrosion-resistant and durable, suitable for high-temperature and high-pressure environments, compliant with GB12514.1-2005 standards.
  4. Modular Compatibility: Integrates seamlessly with various hose specifications (DN50/65/80/100) and robot platforms via quick-swap design.
  5. Explosion-Proof Design: Certified for flammable and explosive environments through structural and electrical safety standards.
Technical Parameters Table
Parameter Category Value Remarks
Model KD50/65/80/100 Multi-caliber hose compatibility
Material Full Brass High strength, corrosion-resistant
Working Pressure ≤2.5 MPa Meets high-pressure firefighting demands
Connection Time ≤7.8 seconds Traditional methods take 36s
Sealing Performance Zero Leakage Multi-layer seals (rubber + metal seat)
Operating Temperature -40°C~120°C Explosion-proof and flame-retardant
Machining Precision 0.02~0.03mm CNC precision (VMC1060-based)
Certification GB12514.1-2005, CCCF China compulsory fire product certification
Applications
  • Firefighting Robots: Integrated into tracked fire reconnaissance and extinguishing robots for remote water supply, replacing humans in toxic or high-temperature environments.
  • Explosion-Proof Robots: Deployed in petrochemical or coal mine settings for rapid cooling or fire suppression.
  • Aerospace & Military Equipment: Facilitates quick fluid transfer in launch sites or military rescue robots.
  • Urban Emergency Rescue: Compatible with smart security robots for tunnel and confined space firefighting.
Customization Services

Custom designs tailored to robot platform requirements:

  • Size Adaptation: Supports non-standard hose diameters (e.g., DN40/DN120) or spatial layouts.
  • Material Upgrade: Options include stainless steel or aluminum for lightweighting or enhanced corrosion resistance.
  • Functional Expansion: Sensor interfaces (e.g., pressure monitoring, auto-release) for smart robot integration.
  • Rapid Prototyping: Small-batch production via CNC machining centers (e.g., VMC1160) with lead times of 2-4 weeks.
Support and Services
  • Technical Consultation: Guidance on robot integration, including hose storage mechanisms and sealing optimization.
  • After-Sales Warranty: 13-month warranty, lifelong maintenance, with spare parts and on-site debugging.
  • Global Supply: OEM/ODM cooperation supported, with ISO 9001-certified production lines.
