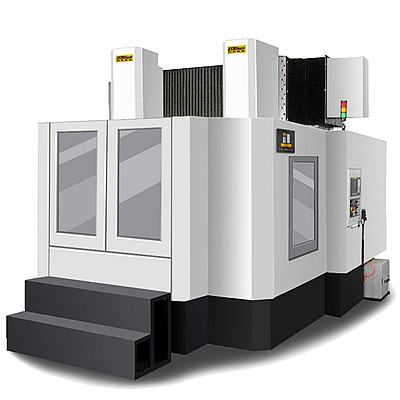

Horizontal Machining Center For Sale Special Machine For Processing Automobile Axles
Horizontal Machining Center For Sale Special Machine For Processing Automobile Axles
Specifications
Brand Name :
Vicord
Model Number :
YCWJ400
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
500 units/year
Delivery Time :
60 days
Packaging Details :
Wooden box or plastic film packaging
Rotary table size :
320x320mm
Number of pivot shafts for the turret head :
6
Feed motor :
Servo motor
Rated output torque :
20N.m
Description

Special machine for processing automobile axles

Special machine for automobile axle processing can process drilling, milling, boring, tapping and other operations of axles. The dual spindles can process simultaneously to improve production efficiency and processing accuracy.
Main features
The axle housing is a key component of the automobile axle assembly. Due to the many processing steps, the position accuracy and dimensional accuracy requirements are high, which becomes the difficulty of machining technology. The special machine for automobile axle processing has few turnover steps, multiple clamping and positioning benchmarks are unified, and the production efficiency is high and the product quality is guaranteed. It is widely used at home and abroad.
Main components
The processing center of the special machine for automobile axle processing is mainly composed of horizontal slide, vertical slide, turret head, rotary table, fixture and other components.
Application
The automobile axle processing machine can process larger parts, and can also perform indexing and rotary processing. It is suitable for milling, drilling, boring, reaming, tapping, two-dimensional and three-dimensional curved surfaces and other multi-process processing of multiple working surfaces of parts. It has the good performance of completing the box hole system and plane processing in one clamping, and is particularly suitable for turning and boring box holes. It is widely used in automobiles, internal combustion engines and other industries.

Specifications

Project Machine tool specifications YCWJ400
Technical specifications Workbench dimensions (length x width) 450x450mm
Rotary table size 320x320mm
Number of pivot shafts for the turret head 6
Connection method between turret head spindle and cutting tool ER40snap ring
X-axis travel 500mm
Z-axis travel 450mm
Travel Y-axis 350mm
Maximum drilling diameter φ25
Maximum tapping diameter φ20
Feed motor Servo motor
Lubrication form of machine tool Volumetric automatic lubrication
Main motor Total power of machine tool 11KW
Rated speed 1500r/min
Rated power 4KW
Feed motor X-axis motor 130SY-M-10
Rated speed 1500r/min
Rated power 1.6KW
Rated output torque 10N.m
Y-axis motor 130SY-M-7.7
Rated speed 2000r/min
Rated power 1.6KW
Rated output torque 7.7N.m
Motor model 130SY-M-20
Rated speed 1500r/min
Rated power 3KW
Rated output torque 20N.m
Machine tool appearance (Length x Width x Height) mm 2000x1600x1800mm
Machine weight KG 2500

Processed products
