Casting Steel Globe Valve Body Machining Cnc Boring Mill Tool 72-300 R/Min
Casting Steel Globe Valve Body Machining Cnc Boring Mill Tool 72-300 R/Min
Casting Steel Globe Valve Body Machining Cnc Boring Mill Tool 72-300 R/Min
Casting Steel Globe Valve Body Machining Cnc Boring Mill Tool 72-300 R/Min
Specifications
Brand Name :
Vicord
Model Number :
YC III C300
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
30 set per month
Delivery Time :
60 days
Packaging Details :
Wrap plastic film
Maximum turning diameter :
φ460-1025
Spindle speed range :
72-300 r/min
Servo motor :
7.7-15 N.m
Surface roughness :
6.3
X-axis travel :
170-600 mm
Z-axis travel :
280-500 mm
Product Type :
Boring milling Machine
Core Components :
PLC, Bearing, Gearbox, Motor, Gear, Pump
Power Supply :
380V, 50Hz, 3-phase/customized
Control System :
CNC
Description

Casting Steel Globe Valve Body Machining Boring Milling Machine Tool

This CNC boring and milling machine lathe is engineered to deliver precision and efficiency in machining complex parts such as fire hydrants and automotive rear axles. With its advanced CNC control system, it offers unmatched accuracy, versatility, and productivity for a wide range of industrial applications.

Highlights:
Precision Engineering: Ensures high accuracy and fine surface finishes for critical components.
Integrated Operations: Combines boring, milling, and turning capabilities, eliminating the need for multiple machines.
Enhanced Productivity: Reduces setup time and operational costs while improving output quality.
Durable Construction: Designed for heavy-duty performance, ensuring long-term reliability.

Application:
Fire Hydrant Manufacturing: Machining valve bodies, connectors, and other precision parts.
Automotive Sector: Producing rear axles, transmission components, and other high-tolerance parts.
General Machining: Handling complex, multi-axis machining tasks across various industries.

Perfect for industries requiring high precision and efficiency, this CNC boring and milling machine lathe is a versatile and dependable solution for manufacturing fire hydrants, automotive rear axles, and other intricate components with exceptional quality.

Payment terms

40% advance Payment, 60% after inspection before shipping by TT

Details

Item Unit YC III C300HT YC III C400HT YC III C600HT YC III C800HT
Maximum turning diameter mm φ460 φ580 φ840 φ1025
Maximum processing length mm 600 800 1000 1100
Minimum processing length mm 200 300 300 400
Single-way spindle assembly side length (maximum) mm 400 600 700 900
Single-way spindle assembly side length (minimum) mm 150 200 200 250
X-axis travel mm 170 270 450 570
Z-axis travel mm 280 395 450 450
Coaxiality mm ≤0.1 ≤0.1 ≤0.15 ≤0.2
Parallelism mm ≤0.1 ≤0.1 ≤0.15 ≤0.2
Verticality mm ≤0.1 ≤0.1 ≤0.15 ≤0.2
Surface roughness - 6.3 6.3 6.3 6.3
Spindle transmission form - 4-axis variable speed 9-axis variable speed 2-axis speed change 3-axis variable speed
Spindle speed range r/min 72–256 69–157 32–47 43–87
Spindle motor model - YE2–132M–6–5.5KW YE2–132M–6–5.5KW YE2–160L–8–7.5KW YE2–180L–8–11KW
CNC control system (optional) - Nanjing Huaxing—Stepper system Nanjing Huaxing—Servo system Guangzhou CNC—stepping system Guangzhou CNC—Servo system
Feed form (optional) - Stepper motor Stepper motor Stepper motor Stepper motor
Servo motor Nm 7.7N.m 7.7N.m 10N.m 15N.m
Fully protected overall dimensions (length × width × height) mm 3800×2700×1700 4500×3300×2200 5000×3600×2200 5400×3900×2500
Simple protected overall dimensions (length × width × height) mm 3500×2600×1700 4350×3200×2200 4800×3500×2200 5200×3800×2500
Machine weight kg 4500 6500 8000 11000

Processed Products

Casting Steel Globe Valve Body Machining Cnc Boring Mill Tool 72-300 R/Min

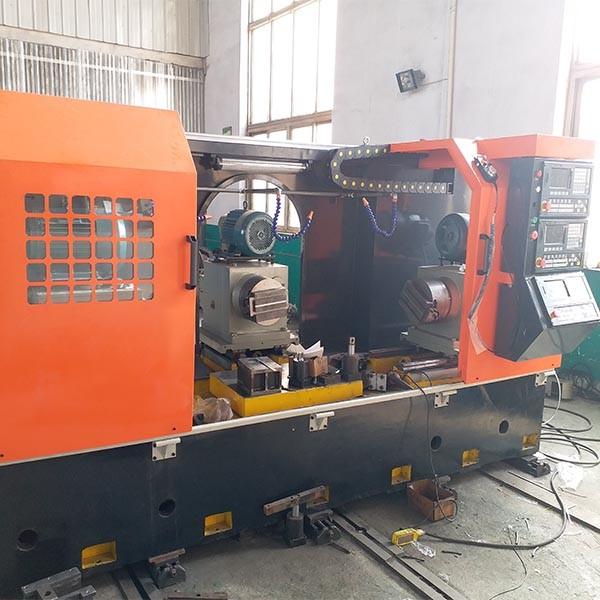

Machine picture

Casting Steel Globe Valve Body Machining Cnc Boring Mill Tool 72-300 R/Min
