Pump Valve Reducer Pipe Bevel Boring Milling Turning Lathe Machine

Pump Valve Reducer Pipe bevel Boring Milling Turning Lathe Machine is a specialized CNC machine designed for machining large-diameter valves, pipe fittings, and other heavy-duty components. It combines boring, milling, and turning capabilities into a single machine, making it highly efficient for producing complex parts with high precision. This type of machine is commonly used in industries such as oil and gas, petrochemical, power generation, and heavy machinery manufacturing.

Key Features
Multi-Functionality: Combines boring, milling, and turning operations in one machine, reducing the need for multiple setups and improving efficiency.
Large Capacity: Designed to handle large workpieces, such as DN 600 (600 mm nominal diameter) valves and pipe fittings.
High Precision: Equipped with advanced CNC systems and high-rigidity structures to ensure tight tolerances and superior surface finishes.
Heavy-Duty Construction: Built with robust materials to withstand heavy machining loads and ensure long-term stability.

Main Components
Bed: A heavy-duty base that provides stability and supports the entire machine structure.
Spindle: A high-power spindle capable of handling large tools and heavy cutting loads.
CNC Control System: A sophisticated CNC system (e.g., Siemens, Fanuc, or Heidenhain) for precise control of machining operations.
Coolant System: Integrated coolant systems to manage heat and improve tool life.
Advantages
Reduced Setup Time: Combines multiple operations in one machine, eliminating the need for transferring workpieces between machines.
High Accuracy: Ensures precise machining of large and complex parts.
Versatility: Capable of handling a wide range of materials, including steel, stainless steel, cast iron, and alloys.
Cost-Effective: Reduces labor and operational costs by streamlining the machining process.
Scalability: Suitable for both small-batch and high-volume production.
Maintenance and Care
Regular Lubrication: Keep all moving parts well-lubricated to ensure smooth operation.
Cleaning: Remove chips, dust, and coolant residues to maintain machine cleanliness.
Inspection: Periodically check and calibrate the machine to maintain accuracy.
Tool Management: Replace worn-out tools promptly to avoid compromising machining quality.
Coolant Management: Regularly check and replace coolant to prevent corrosion and ensure efficient heat dissipation.
The CNC boring and milling lathe is an ideal solution for industries that require high-precision and high-efficiency machining of large and complex components. Proper selection, operation, and maintenance can significantly improve productivity and product quality.

Details

Processed Products

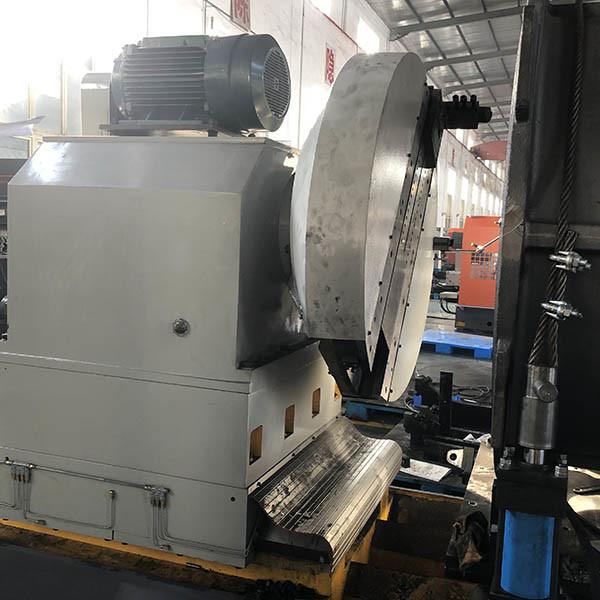

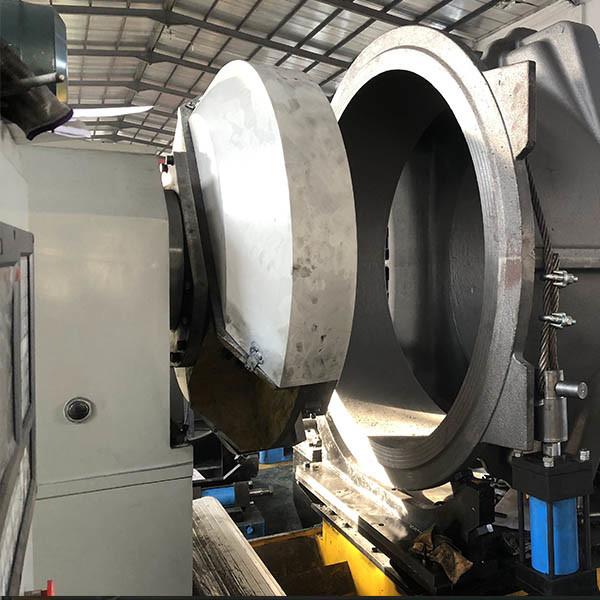

Machine picture
