Valve 2 Sided Multi Hole Drilling Machine Hydraulic Transmission
Valve 2 Sided Multi Hole Drilling Machine Hydraulic Transmission
Specifications
Brand Name :
Vicord
Model Number :
YC ll Z200HT、YC ll Z300HT、YC ll Z400HT、YC ll Z600HT
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T
Supply Ability :
500 units/year
Delivery Time :
60 days
Packaging Details :
Wooden box or plastic film packaging
Maximum drilling center distance (mm) :
φ295、φ410、φ525、φ770
Travel distance (mm) :
340、450、450、450
Surface roughness :
12.5
Feed form :
Hydraulic transmission
Description

Valve double-sided multi-hole drilling machine

The valve double-sided multi-hole drilling machine is a flange hole multi-hole drilling product specially designed for the valve industry. It can clamp flange holes on both sides at one time. It weighs about 1.5t-3.0t and the speed can be customized according to customer needs.

Main features

The double-sided multi-hole drilling machine for valves can complete multi-station simultaneous processing of different types of distributed holes (regular distribution or irregular distribution) on various flange connection surfaces, reducing labor, high uniformity of processing dimensions, easy operation, greatly improving processing efficiency, and reducing the number of clamping and positioning times.

Main components

1. Basic structure: including box body, bed, drill magazine, clamping seat, etc.
2. Machine tool material: The castings such as the box body and bed are all made of cast iron HT250,Guide rail processing: The machine tool guide rails are all manually scraped and polished
3. Machine tool accessories: The bearings are all Harbin bearings
4. The bed transmission mechanism adopts NMRV worm gear reducer, which has stable transmission and high service life

Application

The double-sided multi-hole drilling machine for valves is mainly used for flange drilling of various valves, pump bodies and other similar workpieces.

Specifications

Project Machine tool specifications YC ll Z200HT YC ll Z300HT YC ll Z400HT YC ll Z600HT
Technical specifications Maximum drilling center distance (mm) φ295 φ410 φ525 φ770
Maximum processing length (mm) 600 800 800 1000
Minimum processing length (mm) 200 200 300 300
Travel distance (mm) 340 450 450 450
Drill bit connection method (Morse taper shank) Moshi 2#

Moshi 2#

Moshi 3#

Moshi 2#

Moshi 3#

Moshi 2#

Moshi 3#
Machining accuracy Position accuracy (mm) ≤0.5 ≤0.6 ≤0.8 ≤1
Surface roughness 12.5 12.5 12.5 12.5
Main shaft drive Transmission form (gear shifting) 2-speed transmission 2-speed transmission 2-speed transmission
Spindle speed range (r/min) 225/286 197/223 159/231 11KWgear motor
Spindle motor model YE2-132M-6-5.5KW YE2-132M-6-5.5KW YE2-132M-6-7.5KW YE2-180L-8-11KW
Numerical Control System PLC
Feed form Hydraulic transmission

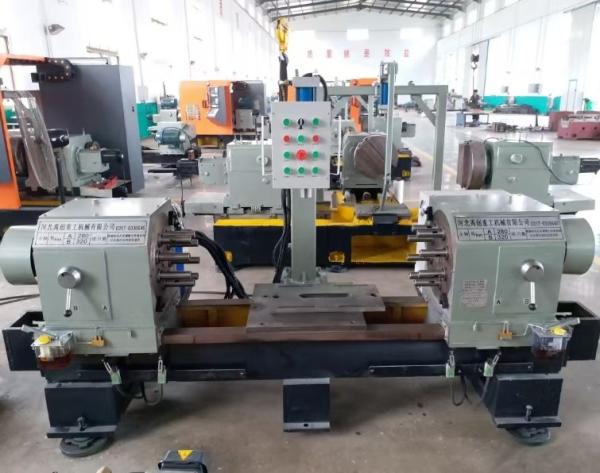

Machine tool appearance

Machine tool dimensions

(length X width X height mm)

 2800X1000x1500 3200X1200X1700 3300X1200X1700 3400X1500X2000
Machine weight (kg) 1500 1800 2200 3000

Processed products

Valve 2 Sided Multi Hole Drilling Machine Hydraulic Transmission
