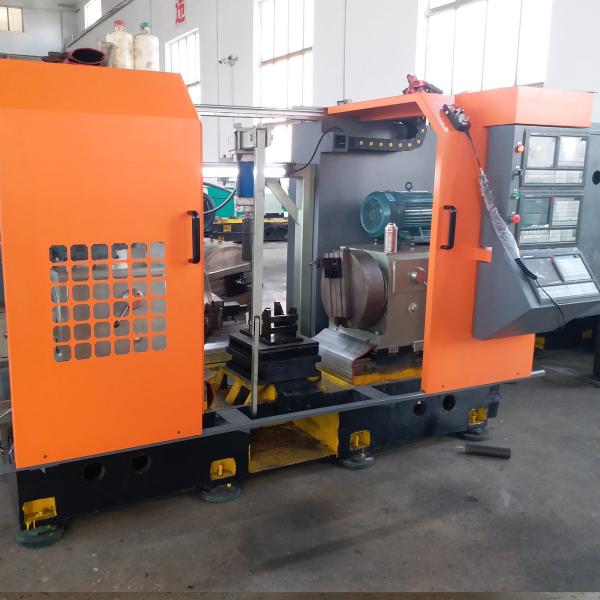

CNC Milling Turning Grinding Machine For Gate Valve Butterfly Valve
CNC Milling Turning Grinding Machine For Gate Valve Butterfly Valve
CNC Milling Turning Grinding Machine For Gate Valve Butterfly Valve
CNC Milling Turning Grinding Machine For Gate Valve Butterfly Valve
CNC Milling Turning Grinding Machine For Gate Valve Butterfly Valve
CNC Milling Turning Grinding Machine For Gate Valve Butterfly Valve
Specifications
Brand Name :
Vicord
Model Number :
YC III C300/400/600/800HT
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
30 set per month
Delivery Time :
60 days
Packaging Details :
Wrap plastic film
Maximum turning diameter :
φ460-1025
Spindle speed range :
72-256 r/min
Servo motor :
7.7-15 N.m
Surface roughness :
6.3
X-axis travel :
170-570 mm
Z-axis travel :
280-450 mm
Description
Three-Sided CNC Boring Lathe - Multi-Surface Machining Solution
3-Sided CNC Boring Lathe | Simultaneous Multi-Surface Machining for Precision Manufacturing
High-precision 3-sided CNC boring lathe enables simultaneous top/front/side machining. Features multi-axis control, automatic tool changing, and ±0.005mm accuracy for automotive, mold, and energy industries.
Product Overview
The three-sided CNC boring lathe is an advanced machining center capable of processing three workpiece surfaces (typically top, front, and side) simultaneously. Utilizing multi-axis CNC control and intelligent tool management systems, it achieves:
70% faster cycle times vs traditional single-surface machines
±0.005mm machining accuracy
Single-setup complete processing for complex parts
Key Features & Benefits
Tri-surface simultaneous machiningm,Eliminates repositioning errors 3x independent spindles,Enables uninterrupted production,
Smart measurement system,Ensures consistent quality,In-process probing
Technical Components
High-Stability Bed
Cast construction with vibration damping
Thermal deformation compensation
Multi-Spindle System
3x 7.7kW spindles (8,000 RPM)
CNC Control System
Collision avoidance software
Industry Applications
Automotive Manufacturing
Engine blocks & transmission housings
Simultaneous bore/facing/grooving
Precision Mold Making
Injection mold cores & cavities
Die-casting mold slide ways

Details

Item Unit YC III C300HT YC III C400HT YC III C600HT YC III C800HT
Maximum turning diameter mm φ460 φ580 φ840 φ1025
Maximum processing length mm 600 800 1000 1100
Minimum processing length mm 200 300 300 400
Single-way spindle assembly side length (maximum) mm 400 600 700 900
Single-way spindle assembly side length (minimum) mm 150 200 200 250
X-axis travel mm 170 270 450 570
Z-axis travel mm 280 395 450 450
Coaxiality mm ≤0.1 ≤0.1 ≤0.15 ≤0.2
Parallelism mm ≤0.1 ≤0.1 ≤0.15 ≤0.2
Verticality mm ≤0.1 ≤0.1 ≤0.15 ≤0.2
Surface roughness - 6.3 6.3 6.3 6.3
Spindle transmission form - 4-axis variable speed 9-axis variable speed 2-axis speed change 3-axis variable speed
Spindle speed range r/min 72–256 69–157 32–47 43–87
Spindle motor model - YE2–132M–6–5.5KW YE2–132M–6–5.5KW YE2–160L–8–7.5KW YE2–180L–8–11KW
CNC control system (optional) - Nanjing Huaxing—Stepper system Nanjing Huaxing—Servo system Guangzhou CNC—stepping system Guangzhou CNC—Servo system
Feed form (optional) - Stepper motor Stepper motor Stepper motor Stepper motor
Servo motor Nm 7.7N.m 7.7N.m 10N.m 15N.m
Fully protected overall dimensions (length × width × height) mm 3800×2700×1700 4500×3300×2200 5000×3600×2200 5400×3900×2500
Simple protected overall dimensions (length × width × height) mm 3500×2600×1700 4350×3200×2200 4800×3500×2200 5200×3800×2500
Machine weight kg 4500 6500 8000 11000

Processed Products

CNC Milling Turning Grinding Machine For Gate Valve Butterfly Valve

CNC Milling Turning Grinding Machine For Gate Valve Butterfly Valve
