VMC 1890 CNC Vertical Machine Center 6000/8000rpm Multipurpose
VMC 1890 CNC Vertical Machine Center 6000/8000rpm Multipurpose
Specifications
Brand Name :
Li Zhun
Model Number :
VMC-1890
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
30-45 work days
Packaging Details :
Wooden Box
Certification :
SGS
Product Name :
CNC Vertical Machining Center VMC-1890
Condition :
New
Warranty :
1 Year
Type :
Vertical
Spindle Speed :
6000/8000rpm
Worktable size :
900mm * 2000mm
Description

PRODUCT DESCRIPTION

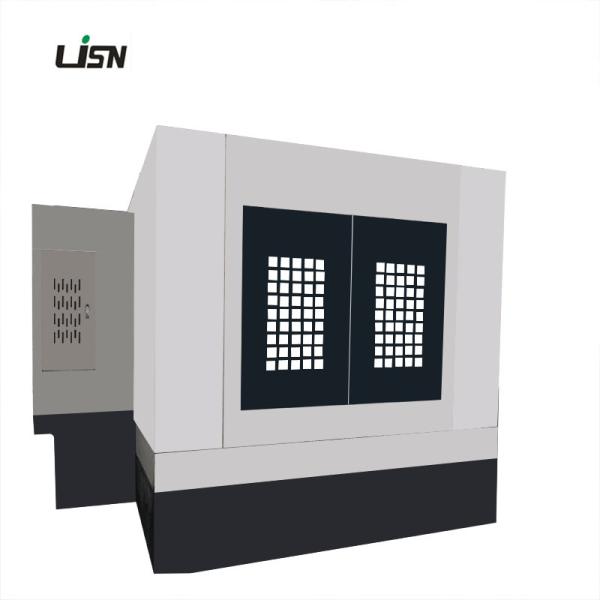

VMC-1890 High Rigidity CNC Vertical Machining Center High Precision

The VMC-1890 is a large vertical machining center produced by our company. The size of this machine is 4535mm*3050mm*3100mm, and the weight is 15800kg. The worktable of this machine is 900*2000, a huge worktable is very good for processing some large parts. The spindle revolution of the machine can be selected as 6000 or 8000 revolutions and the spindle motor power is 18.5kw. The parts of the machine are imported, excellent parts and high strength of the body structure for the machine to provide high stability.

Main Technical Parameters

ITEM MODELS VMC1890
WORKTABLE (WIDTH*LENGTH) mm 900*2000
DISTANCE BETWEEN T SLOTS mm 5-18*100
MAX LOAD BEARING OF WORKTABLE kg 1800
X/Y/Z AXIS TRAVEL mm 1800/900/680
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 160-840
SPINDLE HOLE TAPER TB50
SPINDLE SPEED RANGE r/min 6000 / 8000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT BELT/DIRECT
SPINDLE MOTOR POWER kW 18.5
X/Y/Z RAPID FEED SPEED m/min 18*18*18
MAX CUTTING FEED SPEED mm/min 1-10000
TOOLS MAGAZINE CAPACITY pcs 24
FULL TOOLS MAX TOOL DIAMETER mm 240
MAX.TOOLS ALLOWABLE WEIGHT kg 15
MAX.TOOLS ALLOWABLE LENGTH mm 305
X/Y/Z POSITION ACCURACY mm
X/Y/Z RE-POSITION ACCURACY mm
MACHINE DIMENSION mm 4535*3050*3100
MACHINE WEIGHT kg 15800

Standard Configuration for VMC Series

1. Full Cover shield /

2. Self-lubrication system /

3. Working lights /

4. Warning lights /

5. Working condition warning lights /

6. Self-powered electrical shutoff system /

7. Clean air gun/ Water Tank / Transformer /

8. Spindle air curtain and dust control system /

9. 10000 RPM spindle /

10.Worktable cleaning water gun

Optional Configuration for VMC Series

1. 24 disc manipulator tool magazine /

2. Crawler chips remover /

3. NC rotary table (4 Axis) /

4. CTS /

5. Tool detection system /

6,. AJO /

7. 12000 & 15000 RPM Direct connection spindle /

8. Oil mist purifier
