8000r/Min 5 Axis CNC Vertical Machining Center VMC1370 For Electronic
8000r/Min 5 Axis CNC Vertical Machining Center VMC1370 For Electronic
Specifications
Brand Name :
LiZhun
Model Number :
VMC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
1000/years
Delivery Time :
30-45work days
Packaging Details :
Wooden box
Certification :
SGS
Type :
Vertical
Condition :
New
Spindle speed :
8000rpm
Machine type :
CNC Vertical Machining Center
Spindle taper :
BT50
Product type :
CNC 5Axis Machine
Processing :
Maching Center
Warranty :
1 Year
Description

High speed and efficiency CNC Vertical Machining Center VMC1370

1.Product overview

VMC13070 with optimizing machine body structure design has advantages in processing efficiency, processing precision and smooth finish of mould curved surface processing, can be widely applied to 3C product, automatic special parts, electronic, mechanical, automobile, precision medicine and other field of product.

2.Main technical parameters

ITEM MODELS→ VMC1275 VMC1370

WORKTABLE (WIDTH*LENGTH)		 mm 600*1360 700*1400

DISTANCE BETWEEN T SLOTS		 mm 5-18*152.5 5-18*152.5

MAX LOAD BEARING OF WORKTABLE		 kg 900 900

X/Y/Z AXIS TRAVEL		 mm 1200/750/700 1300/700/750

SPINDLE HOLE TAPER		 BT50 TB50

SPINDLE SPEED RANGE		 r/min 8000 8000

TRANSMISSION OF SPINDLE BOX
BELT/DIRECT
BELT/DIRECT
BELT/DIRECT

SPINDLE MOTOR POWER		 kW 15 15

X/Y/Z RAPID FEED SPEED		 m/min 24*24*18 24*24*18

MAX CUTTING FEED SPEED		 mm/min 1-10000 1-10000

TOOLS MAGAZINE CAPACITY		 pcs 24 24

FULL TOOLS MAX TOOL DIAMETER		 mm 240 240

MAX.TOOLS ALLOWABLE WEIGHT		 kg 15 15

MAX.TOOLS ALLOWABLE LENGTH		 mm 305 305

X/Y/Z POSITION ACCURACY		 mm 0.008 0.008

X/Y/Z RE-POSITION ACCURACY		 mm 0.005 0.005

MACHINE WEIGHT		 kg 9000 10000


3.Product details

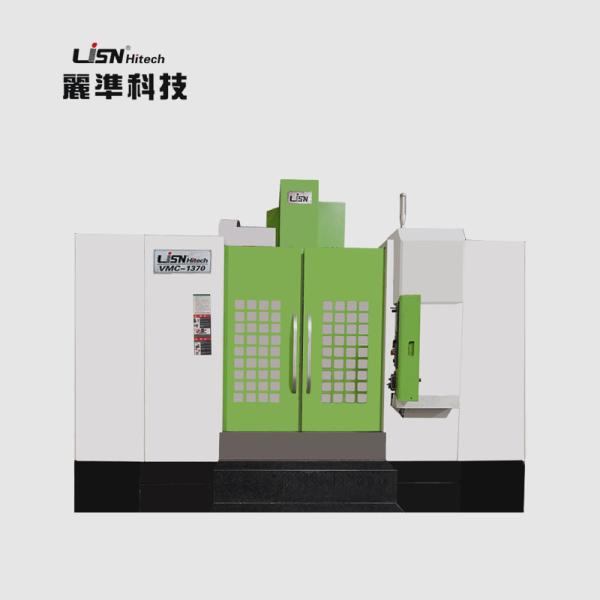

8000r/Min 5 Axis CNC Vertical Machining Center VMC1370 For Electronic

Standard accessories:

1. Mitsubishi/ Fanuc controller system
2. Fully enclosed cover
3. Pneumatic system
4. Anto lubrication system
5. Work piece coolant system
6. Heat exchange
7. Air gun
8. Water gun
9. Spindle oil coolant
10. 24T Arm type tool magazine
11. Rear flishing
12. Hand wheel
13. RS232 Interface
14. Alarming light
15. Working light
16. Guide way cover
17. Technical documents
18. Operation manual
