Automatic 315L Horizontal Boring And Milling Machine Center Practical DBM1000
Automatic 315L Horizontal Boring And Milling Machine Center Practical DBM1000
Specifications
Brand Name :
Li Zhun
Model Number :
DBM-1000
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
Machine Type :
Horizontal Boring and Milling Machine
Maximum Tools Length :
500mm
Warranty :
1 Year
Condition :
New
Worktable Size :
1000mm*1000mm
Maximum Load Capability :
4000kg
Description

Horizontal Boring And Milling Machining Center High Precision and Automatically DBM1000

Product Description

The DBM-1000 is a highly automated horizontal boring and milling machining center with high precision and high rigidity. The machine is highly automated, it can realize digital synchronous display to provide operators with the most intuitive and accurate information, which can greatly improve the work efficiency. The spindle has 3 supporting points and good rigidity. Nitrogen treatment is employed on the main surface, which enables the spindle to have high hardness and long service life. The spindle and feed speed change adopt manual rotary valve in the headstock and hydraulic pre-selection, which is convenient for operation.The bed and lower saddle guideways adopt full enclosure telescopic covers, which extends the service life of the guideways.

Main Features

  • Worktable size: 1000mm * 1000mm
  • Maximum load capability: 4000kg
  • High precision spindle
  • Speed of spindle: 35 - 3500RPM
  • Huge water tank: 315L
  • Overall rigidity is excellent

Main Parameters

ITEM MODELS DBM1000
WORKTABLE (WIDTH*LENGTH) mm 1000*1000
T SLOTS mm 22H7*150*7
MAX LOAD BEARING OF WORKTABLE kg 4000
X/Y/Z/W AXIS TRAVEL mm 1000/1800/1500/400
SPINDLE HOLE TAPER ISO50
SPINDLE SPEED RANGE r/min 35-3500
CENTER OF SPINDLE TO WORKTABLE SURFACE mm 0~1800
NOSE OF SPINDLE TO WORK CENTER mm 100~2000
SPINDLE MOTOR OUTPUT TORQUE Nm 787/965
X/Y/Z/W RAPID FEED SPEED m/min 10/10/10/8
MAX CUTTING FEED SPEED m/min 10/10 /10/8
TOOLS MAGAZINE CAPACITY pcs 40
NEIGHBOR EMPTY TOOL DIAMETER mm ∅125/520
MAX.TOOLS ALLOWABLE WEIGHT kg 25
MAX.TOOLS ALLOWABLE LENGTH mm 500
MACHINE ELECTRIC CAPACITY KVA 45
POSITION ACCURACY sec 15″
RE-POSITION ACCURACY sec 4″
LOCATING PRECISION OF MACHINE TOOL mm ±0.010
REPETITIVE LOACATING PRECISION OF MACHINE TOOL mm ±0.005
MACHINE DIMENSION mm 5430/6450/4590
MACHINE WEIGHT kg 30000
AIR PRESSURE kgf/cm² 6

Product Details

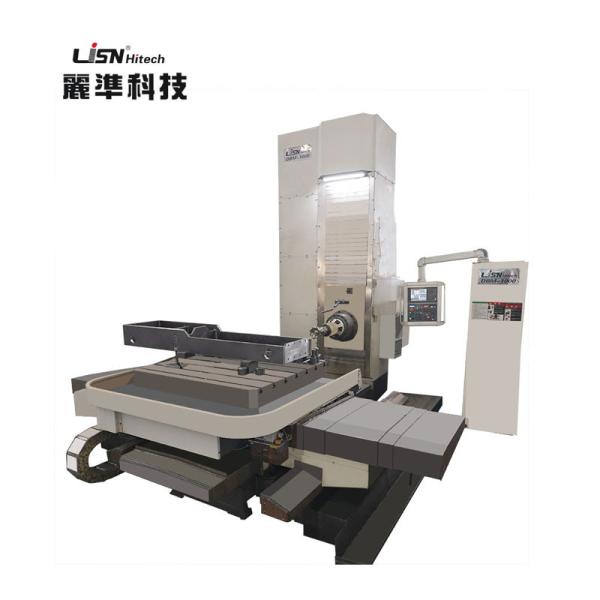

Automatic 315L Horizontal Boring And Milling Machine Center Practical DBM1000

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
