Specifications
Brand Name :
LiSN
Model Number :
ED-1213
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
5-7work days
Packaging Details :
Wooden box
Model NO. :
ED-1213
Condition :
New
Applicable Diameter :
3-12mm
Automatic Grade :
Manual
Power :
220V/400W
Speed :
5000 Rpm/Min
Cylindrical Grinder Type :
End Cylindrical Grinder
Precision :
High Precision
Description

3-12mm End Mill Tool Cutter Grinder End Mill Sharpener ED-1213

Functions and Features:

1.Multi-purpose, can grind 2, 3, 4 flutes tungsten carbide and high speed steel End mill and standard twist drill.

2.Precise and fast grinding, easier operation.

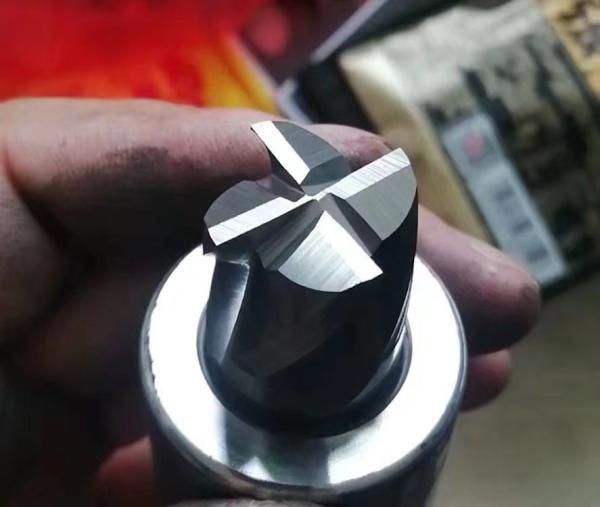

3.Grinding End mill parts are blade Angle, front bevel Angle and back bevel Angle.

4.The width of the first back Angle of the End mill can be adjusted to apply different hardness materials cutting.

5.High precision of End mill blade is within 0.01mm, precision of drill is within 0.03mm.

6.Can grind the tip Angle, front cutting edge, transverse edge and chip slot of standard twist drill, accurate positioning and easy drilling.

8.Parts integral hardening and with PVD nano wear resistant coating, lifetime need not be replaced

9.SDC grinding wheel is used for tungsten carbide tools, CBN grinding wheel is used for high speed steel tools.

Product Parameters

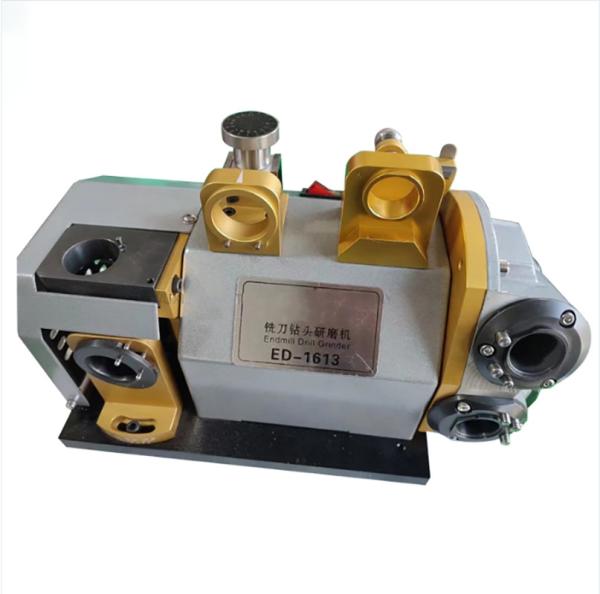

model ED-1213 ED-1613
End mill grinding diameter Φ3~12mm Φ3~16mm
End mill grinding Angle 30°inclination angle of the blade 3°rake angle 20°back slop angle30° 30°inclination angle of the blade 3°rake angle 20°back slop angle30°
Drill grinding diameter Φ3~13mm Φ3~13mm
Bit tip Angle range 900~1400 900~1400
Power 220V/400w 220V/400w
speed 4500 RPM/Min 4500 RPM/Min
Grinding wheel Standard SDC wheels for End mill and CBN wheel for drill (optional for other materials) Standard SDC wheels for End mill and CBN wheel for drill (optional for other materials)
Packing size 36*29*32cm 36*29*32cm
Weight 13.5KG 14KG

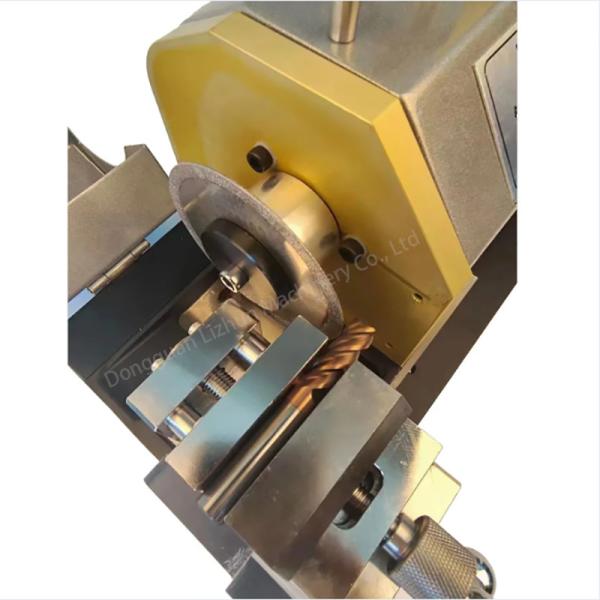

Detailed Photos

3-12mm End Mill Tool Cutter Grinder End Mill Sharpener ED-1213

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
