ED-1613 End Mill Tool Cutter Grinder CNC End Mill Sharpener
ED-1613 End Mill Tool Cutter Grinder CNC End Mill Sharpener
ED-1613 End Mill Tool Cutter Grinder CNC End Mill Sharpener
ED-1613 End Mill Tool Cutter Grinder CNC End Mill Sharpener
ED-1613 End Mill Tool Cutter Grinder CNC End Mill Sharpener
ED-1613 End Mill Tool Cutter Grinder CNC End Mill Sharpener
Specifications
Brand Name :
LiSN
Model Number :
ED-1613
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
5-7work days
Packaging Details :
Wooden box
Model NO. :
ED-1613
Controlling Mode :
Artificial
Condition :
New
Applicable Diameter :
3-16mm
Description

ED-1613End Mill Tool Cutter Grinder End Mill Sharpener

Functions and Features
1.One machine dual use, grind the end End mill, cutting tools high-speed.

2.Applicable for 2/3/4 flutes tungsten carbide and high speed steel end milling.

3.Grinding End mill parts are blade Angle, front bevel Angle and back bevel Angle.

4.The width of the first back Angle of the End mill can be adjusted to apply to different hardness materials cutting.

5.Easy to operate, anyone watching the video can achieve a minute to grind a End mill.

6.Liquid cooling grinding, grinding precision and finish is high, the tool material is not hurt, End mill durability greatly improved than "dry grinding" .

7.Adopts vice clamping, stable and reliable, easy to cut off all kinds of tools (not limited to round rod type).

8.Liquid cooling cutting, cutting instant temperature greatly reduced, cutting efficiency and grinding wheel life greatly improved.

Product Parameters
Model EG-12 ordinary
EG-12S Environmental protection		 EG-16 ordinary
EG-16S Environmental protection		 EG-25 ordinary
EG-25S Environmental protection
Applicable diameter Φ3~12mm Φ3~16mm Φ4~25mm
End mill grinding Angle inclination angle 3°,rake angle 20°,back slop angle30° inclination angle 3°,rake angle 20°,back slop angle30° inclination angle 3°,rake angle 20°,back slop angle30°
Power 220V/400w 220V/400w 220V/400w
Speed 5000 RPM/Min 5000 RPM/Min 4500 RPM/Min
Grinding wheel One SDC wheel (CBN optional ) CBN SDC wheel (CBN optional ) SDC wheel (CBN optional )
Packing size 42*36*38cm 42*36*38cm 42*36*38cm
Weight 10.5KG 11KG 13.5K

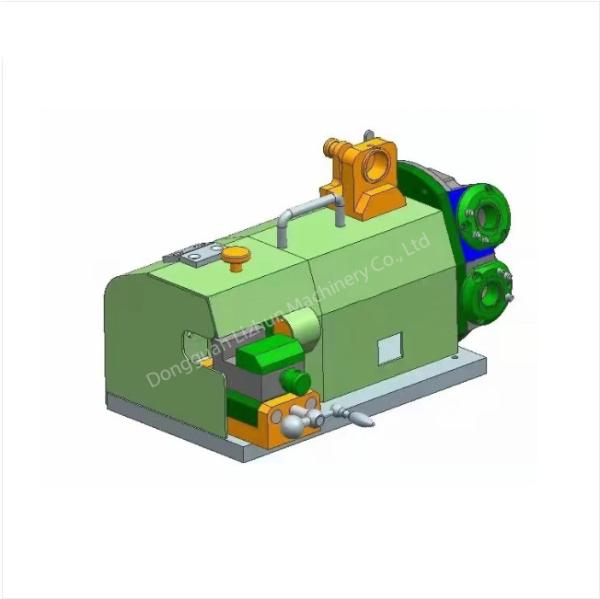

Detailed Photos

ED-1613 End Mill Tool Cutter Grinder CNC End Mill Sharpener

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
