3-13mm Drill Grinder Wholesale End Mill Sharpening Machine Tool Sharpener
3-13mm Drill Grinder Wholesale End Mill Sharpening Machine Tool Sharpener
3-13mm Drill Grinder Wholesale End Mill Sharpening Machine Tool Sharpener
3-13mm Drill Grinder Wholesale End Mill Sharpening Machine Tool Sharpener
3-13mm Drill Grinder Wholesale End Mill Sharpening Machine Tool Sharpener
3-13mm Drill Grinder Wholesale End Mill Sharpening Machine Tool Sharpener
Specifications
Brand Name :
LiSN
Model Number :
ED-1213
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
5-7work days
Packaging Details :
Wooden box
Model NO. :
ED-1213
Controlling Mode :
Artificial
Condition :
New
Applicable Diameter :
3-12mm
Automatic Grade :
Manual
Power :
220V/400W
Description

3-13mm Drill Grinder Wholesale End Mill Sharpening Machine Tool Sharpener

Functions and Features:

1.Multi-purpose, can grind 2, 3, 4 flutes tungsten carbide and high speed steel End mill and standard twist drill.

2.Precise and fast grinding, easier operation.

3.Grinding End mill parts are blade Angle, front bevel Angle and back bevel Angle.

4.The width of the first back Angle of the End mill can be adjusted to apply different hardness materials cutting.

5.High precision of End mill blade is within 0.01mm, precision of drill is within 0.03mm.

6.Grinding capacity can be adjusted to improve grinding efficiency and wheel life.

7.Good grinding effect, can meet the needs of rapid cutting or drilling.

8.Can grind the tip Angle, front cutting edge, transverse edge and chip slot of standard twist drill, accurate positioning and easy drilling.

Product Parameters
model ED-1213 ED-1613
End mill grinding diameter Φ3~12mm Φ3~16mm
End mill grinding Angle 30°inclination angle of the blade 3°rake angle 20°back slop angle30° 30°inclination angle of the blade 3°rake angle 20°back slop angle30°
Drill grinding diameter Φ3~13mm Φ3~13mm
Bit tip Angle range 900~1400 900~1400
Power 220V/400w 220V/400w
speed 4500 RPM/Min 4500 RPM/Min
Grinding wheel Standard SDC wheels for End mill and CBN wheel for drill (optional for other materials) Standard SDC wheels for End mill and CBN wheel for drill (optional for other materials)
Packing size 36*29*32cm 36*29*32cm
Weight 13.5KG 14KG

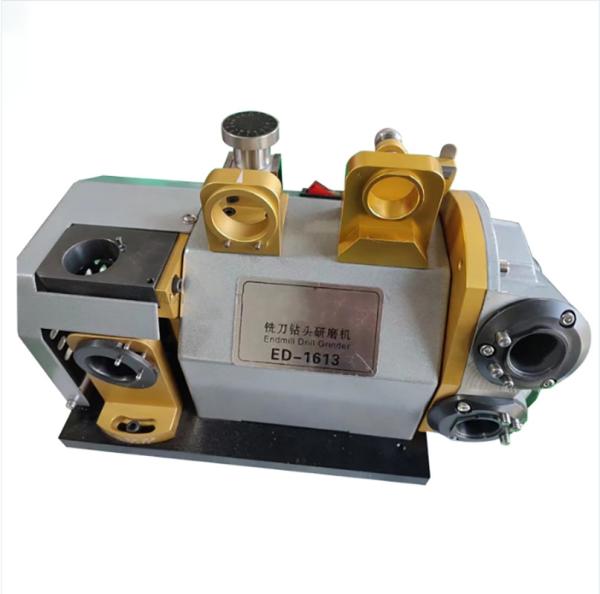

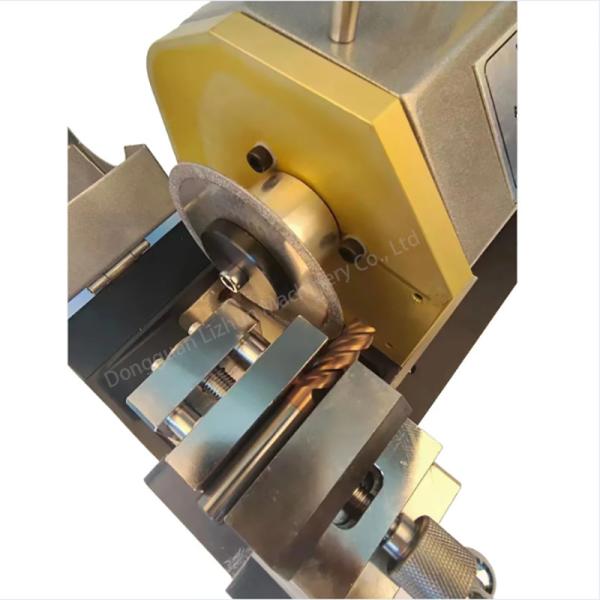

Detailed Photos

3-13mm Drill Grinder Wholesale End Mill Sharpening Machine Tool Sharpener

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
