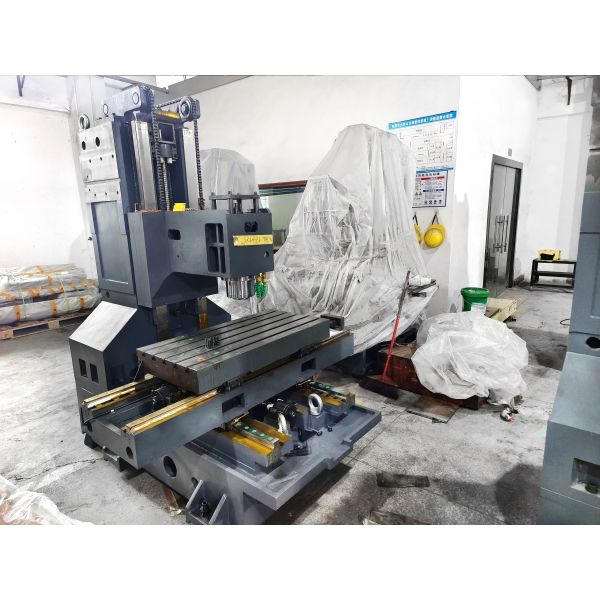

LS-HMC63 CNC Horizontal Machining Center 8000r/Min With Double Exchange Rotary Table​
LS-HMC63 CNC Horizontal Machining Center 8000r/Min With Double Exchange Rotary Table​
LS-HMC63 CNC Horizontal Machining Center 8000r/Min With Double Exchange Rotary Table​
LS-HMC63 CNC Horizontal Machining Center 8000r/Min With Double Exchange Rotary Table​
Specifications
Brand Name :
Lishang Precision Machinery
Model Number :
LS-HMC63
Certification :
CE ISO
Place of Origin :
Shenzhen China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/month
Delivery Time :
15-30days
Packaging Details :
durable case
Name :
CNC Horizontal Machining Center
Three-axis travel X/Y/Z :
1050/800/1000mm
Maximum workpiece size :
φ930×1000mm
Worktable size :
630×630mm
Worktable load-bearing capacity :
1200×2=2400kg
Motor power :
26/37kw
Maximum speed :
8000r/min
Tool holder specifications :
BT50
Tool magazine capacity :
40t
Tool length :
500mm
X, Y, Z axis fast moving speed :
48/48/48m/min
Description

LS-HMC63 Horizontal Machining Center with Positive T-Shaped Structure and Double Exchange Rotary Table​

LS-HMC63 double exchange table horizontal machining center is suitable for many industries such as engineering and automobile, especially for processing special-shaped parts and box parts. One clamping can complete multiple processes such as milling, drilling and boring, improving efficiency, saving costs and improving precision. The machine tool is a positive T-shaped structure with a double exchange rotary table and a large disc servo tool magazine.

LS-HMC63 CNC Horizontal Machining Center 8000r/Min With Double Exchange Rotary Table​

LS-HMC63 CNC Horizontal Machining Center 8000r/Min With Double Exchange Rotary Table​

Product specification

Name Unit Parameter
LS-HMC63

Working area

 Three-axis travel X/Y/Z mm 1050/800/1000
Distance from spindle end to worktable center mm 150-1150
Distance from spindle axis to worktable surface mm 120-920
Maximum workpiece size mm φ930×1000

Workbench

 Worktable size mm 630×630(2个)
Worktable load-bearing capacity Kg 1200×2=2400
Minimum setting unit ° 0.001

Spindle

 Motor power (rated/maximum) Kw 26/37
Torque (rated/maximum) Nm 305/512
Maximum speed r/min 8000
Tool holder specifications - BT50
Magazine tool Tool magazine capacity T 40
Tool length mm 500
Speed Cutting feed speed range mm/min 1-15000
X, Y, Z axis fast moving speed m/min 48/48/48

Product Feature

  • T-shaped bed, made of high-strength cast iron, optimized ribs, high torque resistance.
  • Double-walled column, internal radial ribs, light weight, high rigidity, good dynamics.
  • Radial rib design of the spindle box, high rigidity after finite element analysis.
  • Double worktable rotation exchange, reduced standby; cam mechanism for stable speed, turntable positioning lock to ensure smooth cutting.

Application

The LS-HMC63 double-exchange worktable horizontal machining center is mainly suitable for parts processing in industries such as construction machinery, automobiles, energy, information, and molds. It is particularly suitable for processing various irregular-shaped parts and box-type parts.
