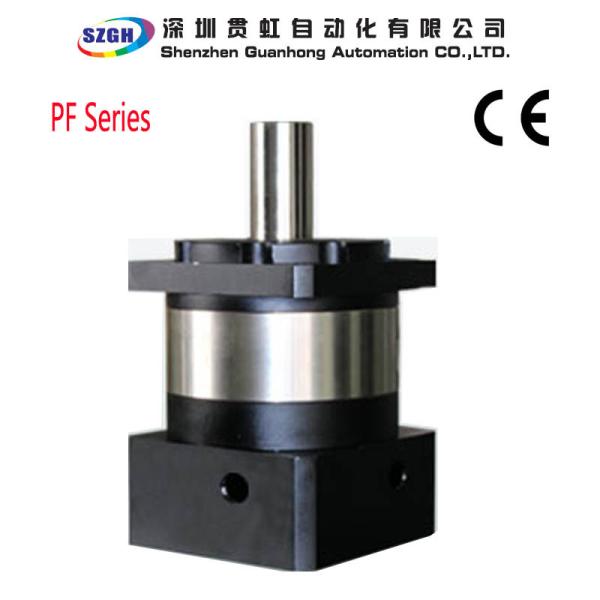

Hydraulic Gear Reduction Box Planetary Variable Speed Reducer For Servo Motor
Hydraulic Gear Reduction Box Planetary Variable Speed Reducer For Servo Motor
Specifications
Brand Name :
SZGH
Model Number :
PF Series
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
TT in advance / Western Union / Paypal /LC/Alipay/Creditcard
Supply Ability :
300 sets per month
Delivery Time :
within 3-5 days upon receipt of full payment
Packaging Details :
Packaged with International Standard
H.S code :
9032899003
Feature 1 :
customzied per motor size
Feature 2 :
able to working with servo motor and stepper
Feature 3 :
higher precision
Feature 4 :
reduction ratio rangment
Feacture 5 :
widely for motor flange
Description

Hydraulic Gear Reduction Box Planetary Variable Speed Reducer For Servo Motor

1. Compact and lighter
• Weight from 1.5 kg to 80 kg (approximate);

• Length from 90.5mm to 250mm;

2. Integral gear ratio

• Ratio from 3 to 1000;
3. Small backlash and all S type gear reducer are provided with tiny backlash within 10 min-arc.

4. Suitable for combination with any kind of servo motor.

5. Total enclosed design

Specification for Gear Reducer
Model PL60 PL80 PL90 PL120 PL150 PL160 PL180
Continuous output torque (Kgf*m/Nm) 3.4/34 8.5/84 8.5/84 23.4/230 53/520 53/520 114/1120
Max.torque of load (Kgf*m/Nm) 2.5 times torque
Radius load on output shaft (kgf) 51 96 298 615 863 863 1331
Gear educer inertia(Kg*cm2) 0.306 0.73 0.73 1.09 3.09 3.09 9.35
Range of output shaft of servomotor diameter within 14 within 19 within 19 within 24 within 42 within 42 within 55
L1 weight (kg) 1.6 3.3 2.8 5 16.4 15.2 37
L2 weight (kg) 2.1 4.3 3.4 7.2 17.6 16.2 46.4
L3 weight (kg) 2.6 5.3 4 8.2 18.9 18.5 　
Lead weight 0.12 0.65 0.65 1 1.5 1.5 2.9

Ratio Table of Gear Reducer
Model L1 L2 L3
PL60 3,4,5 9,12,15,20,25 27,36,45,48,60,75,100,125
PL80/90/120 3,4,5,7 9,12,15,20,21,25,28,35,49 45,48,60,75,80,100,125,140,175,245,343
PL150/160 3,5,7,10 9,12,15,20,,25,28,30,40,50,70 60,75,80,100,150,200,300,400,500,700,1000
PL180 3,5,7,10 9,15,21,25,30,35,49,50,70,100 　 　
