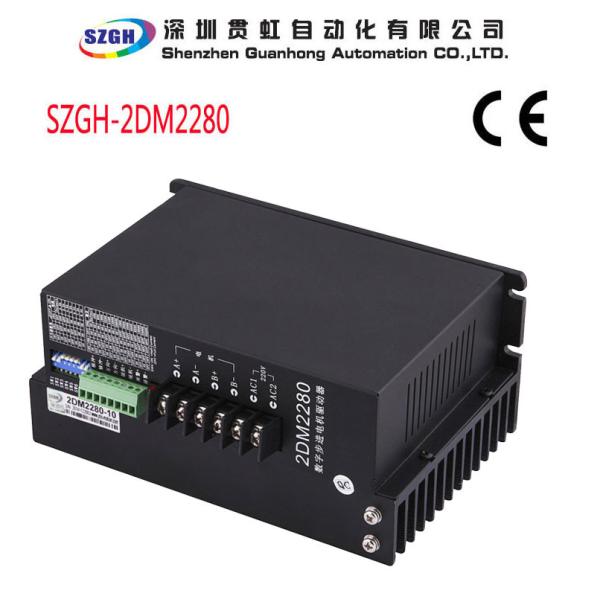

200KHZ Vector Closed Loop Control 4 Axis Two Phase CNC Stepper Driver
200KHZ Vector Closed Loop Control 4 Axis Two Phase CNC Stepper Driver
200KHZ Vector Closed Loop Control 4 Axis Two Phase CNC Stepper Driver
200KHZ Vector Closed Loop Control 4 Axis Two Phase CNC Stepper Driver
Specifications
Brand Name :
SZGH
Model Number :
SZGH-2DM2280
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
1 set
Price :
negotiation
Payment Terms :
TT in advance / Western Union / Paypal /LC/Alipay/Creditcard
Supply Ability :
300 sets per month
Delivery Time :
within 3-5 days upon receipt of full payment
Packaging Details :
with carton, as the standard packing of Shenzhen GuanHong company
Voltage(V) :
AC110-220V
Phase :
2 phase
Weight(KG) :
1.60kg
Curren(A) :
2.2-8.2A
Control Type :
step & dir
Matchde motor :
23 / 24
Description

200KHZ Vector Closed Loop Control 4 Axis Two Phase CNC Stepper Driver

Adopt 32 bit motor control special DSP core
To use advanced vector closed loop control technology
Able to work with 86 series and 110 series closed loop stepper motor / easy servo motor
Optical-coupled differential signal input
Pluse frequency 200KHZ
Micro - stepping setting (200-51200)
Protection function for over - current, over - presure and error
Six bit digitron display , convenient to setting parameter and keep check on motor working condition

  • 2 - Phase numerical stepper driver, AC80V-240V
  • New 32 - bit DSP technology
  • Optically isolated differential signal inputs (26LS32)
  • Extra-low noise and vibration
  • High Subdivision, inner - built 500 multiplier
  • Current can be arbitrarily set within rated current
  • Stationary current is automatically halved
  • Pulse frequency response up to 250KHz
  • Overvoltage, Undervoltage, Short circuit protection
  • Alarm output function (ALM)
  • Alarm clear input funcation (ENA)
  • With Coolant Fan

  • Series Modle Conntrol Type Power 　 Cnofigurtion Matching Motors(NEMA)
    Voltage(v) Current(A) 　 NEMA
    AC DC Peak 　
    2phase stepper driver SZGH-2M415 Step&Dri — 24-36 0.21-1.5 　 DIP Switch 17
    SZGH-2M420 Step&Dri/Pulse&Pulse — 24-36 0.3-2.5 　 DIP Switch 23
    SZGH-2DM542 Step&Dri 　 24-48 1.0-4.2 　 DIP Switch 23,24
    SZGH-2DM556 Step&Dri 　 24-48 1.4-5.6 　 DIP Switch 23,24
    SZGH-2DM860H Step&Dri 60-80 80-110 1.5-6.0 　 DIP Switch 23,24
    SZGH-2DM2280 Step&Dri 　 110-220 1.6-5.9 　 DIP Switch 42,43
    SZGH-3DM2080 Step&Dri 　 110-220 1.6-5.9 　 DIP Switch 42,43

200KHZ Vector Closed Loop Control 4 Axis Two Phase CNC Stepper Driver

200KHZ Vector Closed Loop Control 4 Axis Two Phase CNC Stepper Driver

200KHZ Vector Closed Loop Control 4 Axis Two Phase CNC Stepper Driver

200KHZ Vector Closed Loop Control 4 Axis Two Phase CNC Stepper Driver
