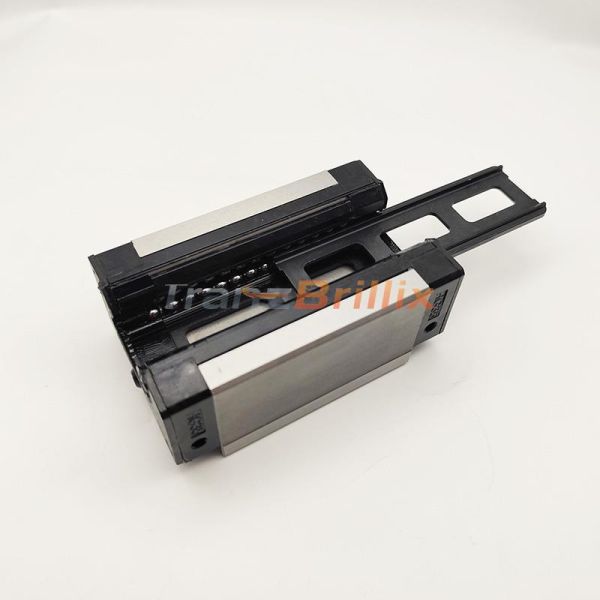

CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series
Specifications
Brand Name :
TranzBrillix
Model Number :
HGH35CA
Certification :
DE1924083895474
Place of Origin :
CHINA
MOQ :
10
Price :
6.8-8 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
Heavy load type HG
Model Size(mm) :
35 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 4000mm
Preload Class :
Z0- Very Light Preload , ZF- Light Clearancer
Material :
SNCM420
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)， if need other dimensions on rails, also available
Installation :
Easy
Application :
Ideal for CNC, lathes, and automation.
Smoothness :
Smooth
Description

Compatible Replacement for HIWIN HGH35CA

This 35mm linear guide block is engineered as a 100% interchangeable alternative to the HIWIN HGH35CA. It matches the original datasheet specifications for dimensions, load ratings, and mass, making it an ideal cost-effective solution for large CNC routers, injection molding machines, and heavy industrial automation.

Engineering Data / Performance Specs

Dimensions and load ratings comply with ISO standard series for Size 35.

CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series

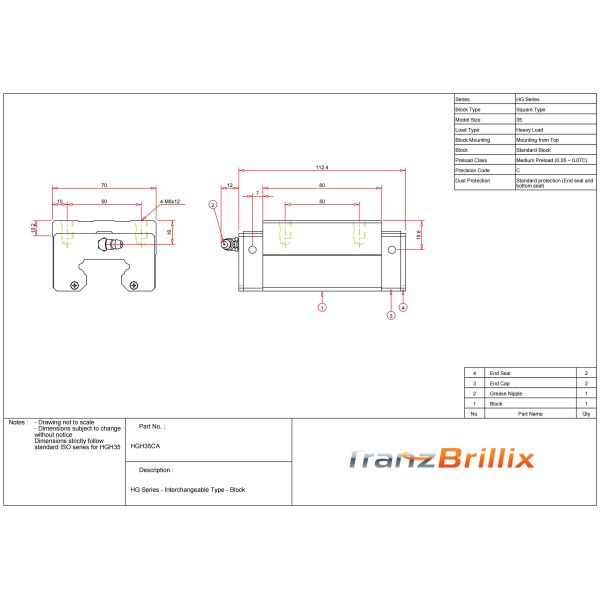

Dimensional & Mechanical Data
Model Number HGH35CA (Square Type / Heavy Load)
Nominal Rail Width (W) 35 mm
Basic Dynamic Load Rating (C) 49.52 kN
Basic Static Load Rating (C0) 69.16 kN
Weight (Block) 1.56 kg
Weight (Rail) 6.30 kg/m
Static Moment (MR) 1.95 kN-m
Static Moment (MP / MY) 1.15 kN-m
Mounting Bolt Size M8 x 25

Structure & Features

  • 4-Row Circular Arc Design: Features a 45° contact angle design that ensures equal load capacity in all four directions (radial, reverse radial, and lateral). This provides superior stability for heavy-duty applications.
  • Material Standard: Block body and balls are manufactured using GCr15 Bearing Steel, hardened to HRC 60-62 for wear resistance.

  • CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series

    CNC Linear Guide Rail Set 35mm (High Rigidity) | Fits HGH35CA Series

Lubrication Guide

⚠️ Critical: Blocks are shipped with anti-rust oil, NOT lubricant. You must grease them before use.

  • Grease Type: Lithium Soap-based Grease (NLGI No.2).
  • Initial Fill Amount: Approx. 10 cm³ per block (Fill slowly until grease overflows slightly).
  • Refill Interval: Every 100km of travel distance, or every 3-6 months depending on operating speed.
  • Method: Inject via the supplied M6 grease nipple.

Installation & Mounting

  • Surface Prep: Ensure the mounting surface is machined flat. Rough surfaces will reduce accuracy and lifespan.
  • Datum Plane: Press the block reference edge firmly against the mounting shoulder before tightening.
  • Torque Sequence: Tighten the 4 bolts (M8) diagonally (X-pattern) in 2-3 stages.

Accuracy & Preload Class

Accuracy Options:
  • C (Normal): +/- 0.1mm (Standard Stock)
  • H (High): +/- 0.03mm (Recommended for Precision)
Preload Options:
  • Z0 (Light): Best for general automation.
  • ZA (Medium): Recommended for heavy CNC mills.

Packaging

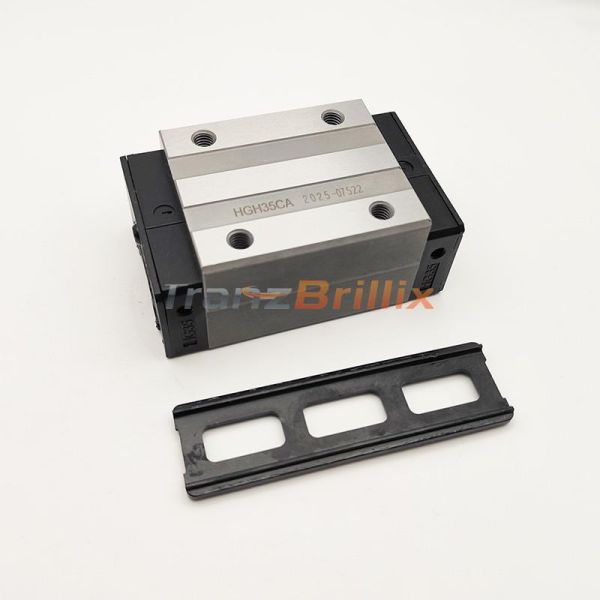

Included in Box: 1x HGH35CA Linear Block, 1x Grease Nipple (M6).
Protection: Vacuum sealed in anti-rust bag, individually boxed.

*Disclaimer: HIWIN® is a registered trademark of HIWIN Technologies Corp. This product is an aftermarket replacement part manufactured by YourBrand and is not affiliated with HIWIN. All technical data is provided for compatibility reference.
