HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
Specifications
Brand Name :
HIWIN
Model Number :
EGH15SA
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
EG
Model Size(mm) :
15 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 4000mm
Preload Class :
Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload
Material :
SNCM220 Carbon Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
automation machines
Smoothness :
Smooth
Description
①HIWIN EGH15SA Linear Guideway Low Profile Ball Type Linear Guide Block

Engineered with HIWIN's renowned Taiwanese precision, the EGH15SA Low Profile Linear Guideway redefines compact motion control with its innovative ball-type design. This ultra-slim guide block delivers HIWIN's signature reliability in a minimal vertical profile, perfect for applications where height restrictions demand uncompromising performance.

The EGH15SA features HIWIN's advanced micro-precision ball circulation system, maintaining buttery-smooth linear motion despite its low-profile construction. Its space-saving design incorporates HIWIN's proprietary load distribution technology, providing exceptional stability and vibration damping characteristics typically found in larger guides. The precision-ground components ensure consistent accuracy throughout extended service life.

Ideal for semiconductor equipment, medical devices, and compact automation systems, this guideway showcases HIWIN's expertise in miniaturized motion solutions. The integrated sealing system offers superior protection in sensitive environments, while the maintenance-friendly design simplifies operation in hard-to-access installations.

With HIWIN's global technical support, the EGH15SA delivers the perfect combination of compact dimensions and professional-grade performance – proving that big precision comes in small packages from the world's leading motion control brand.

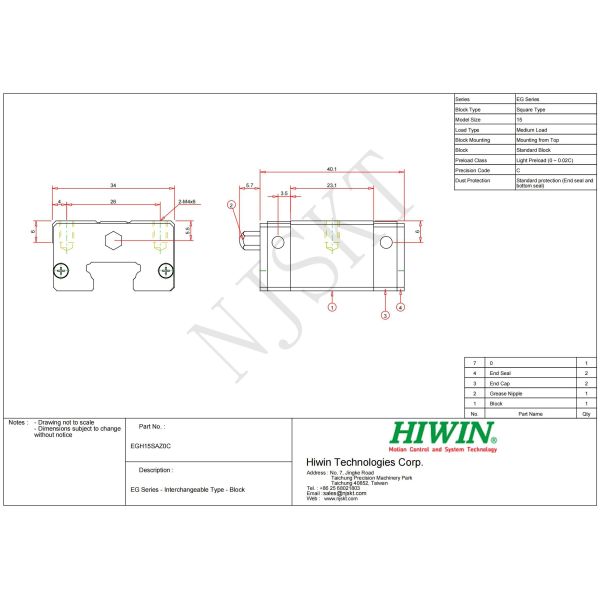

②Drawing of EGH15SA
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
③Model Number of EG Series
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
④Construction of EG Series
HIWIN EGH15SA Linear Guide Block Linear Eg15 Block Low Profile Ball Type
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal, cap and scraper.
⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
