①HIWIN EGW15SA Linear Guideway Hiwin Block Low Profile Rail System

Crafted with HIWIN's renowned Taiwanese engineering excellence, the EGW15SA Low Profile Rail System redefines space-efficient motion control without compromising performance. This ultra-slim guideway block combines HIWIN's decades of innovation with a minimalist design, delivering professional-grade linear motion in applications where height constraints are critical.

The EGW15SA features HIWIN's proprietary micro-precision bearing technology, ensuring buttery-smooth movement in a remarkably low-profile package. Its optimized load distribution architecture provides exceptional rigidity despite the compact dimensions, maintaining accuracy during dynamic operations. The hardened, mirror-finished raceways guarantee consistent performance through extended service life. Designed for semiconductor handling robots, medical imaging systems, and precision optical equipment, this rail system showcases HIWIN's expertise in miniaturized motion solutions. The integrated multi-barrier sealing system offers superior protection in cleanroom environments, while the thermal-stable construction ensures reliable positioning accuracy.

With HIWIN's global technical support, the EGW15SA delivers the perfect synergy of compact design and industrial performance – proving that advanced motion control can fit even the most space-constrained applications.

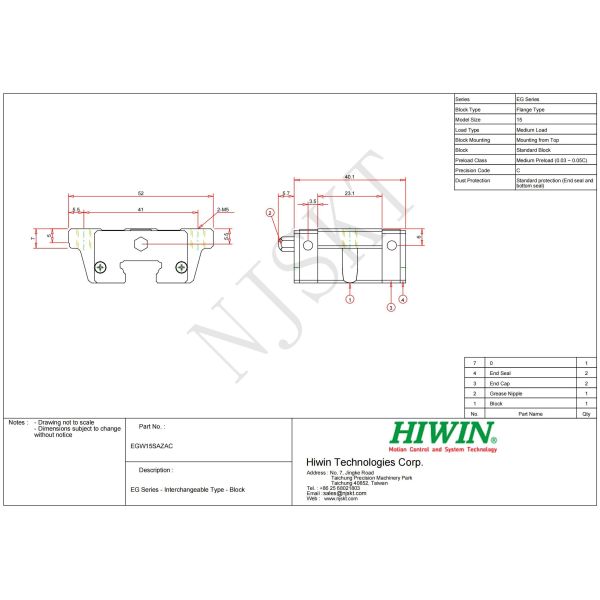

②Drawing of EGW15SA
HIWIN Eg15 Linear Bearing Smooth With Low Profile Rail System
③Model Number of EG Series
HIWIN Eg15 Linear Bearing Smooth With Low Profile Rail System
④Construction of EG Series
HIWIN Eg15 Linear Bearing Smooth With Low Profile Rail System
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal, cap and scraper.
⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.

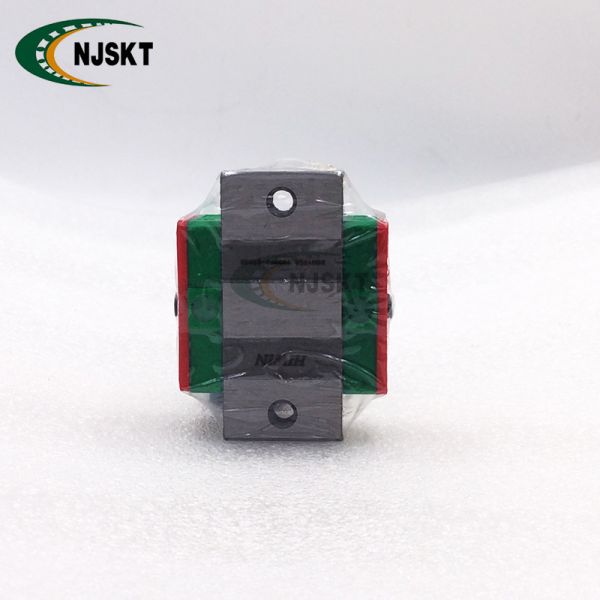

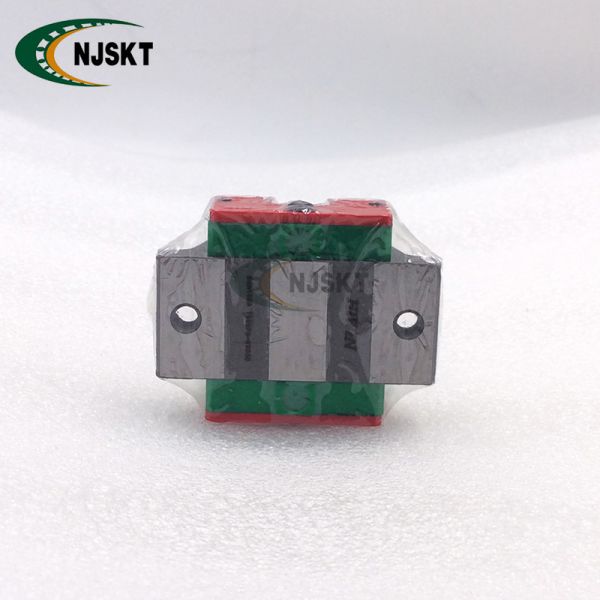

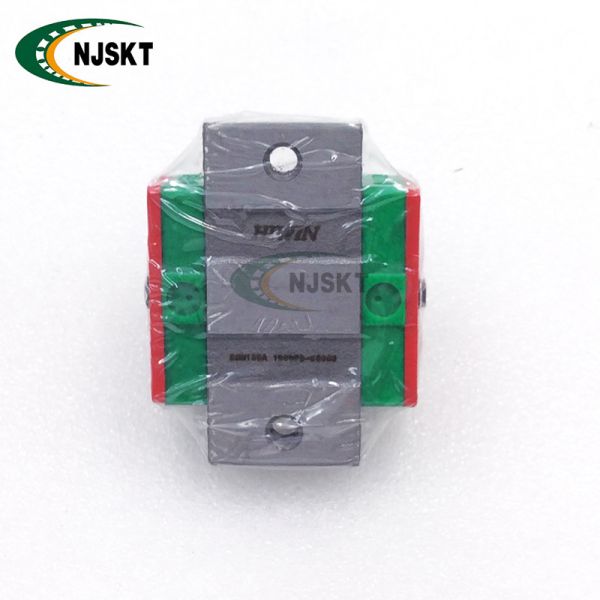

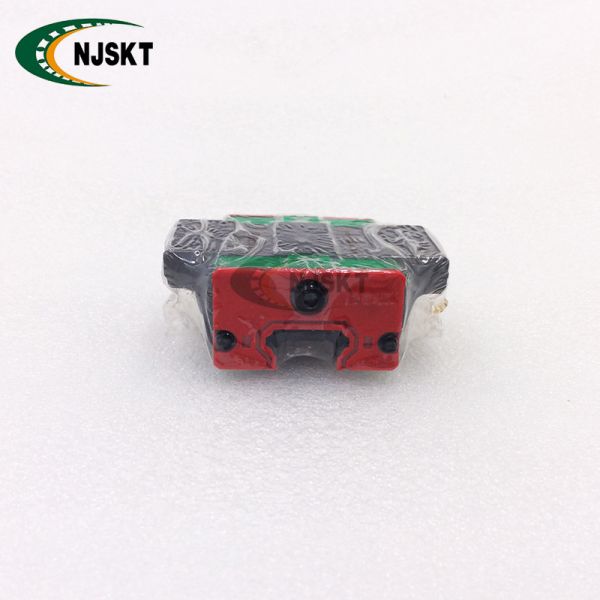

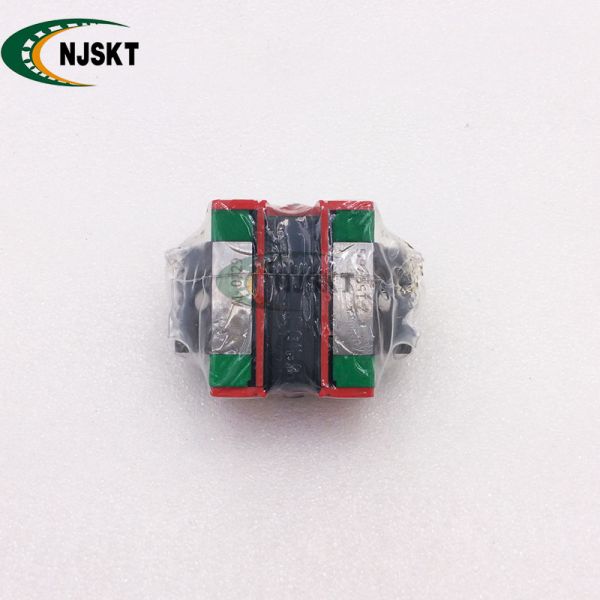

⑥Actual product photo

HIWIN Eg15 Linear Bearing Smooth With Low Profile Rail System

⑦Measurement drawing

HIWIN Eg15 Linear Bearing Smooth With Low Profile Rail System

HIWIN Eg15 Linear Bearing Smooth With Low Profile Rail System

⑧HIWIN series
HIWIN Eg15 Linear Bearing Smooth With Low Profile Rail System
⑨top product recommendation
HIWIN Eg15 Linear Bearing Smooth With Low Profile Rail System
