20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
Specifications
Brand Name :
HIWIN
Model Number :
EGW20SA
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
EG
Model Size(mm) :
20 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 4000mm
Preload Class :
Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload
Material :
SNCM220 Carbon Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
automation machines
Smoothness :
Smooth
Description
①HIWIN EGW20SA Linear Guideway Hiwin Blocks Linear Guideways

Engineered with HIWIN's world-class Taiwanese craftsmanship, the EGW20SA Linear Guideway Block delivers exceptional performance for demanding automation applications. This premium motion solution combines HIWIN's decades of engineering expertise with robust construction to excel in precision industrial environments.

The EGW20SA features HIWIN's advanced four-direction equal load technology, ensuring smooth, accurate movement under varying operational stresses. Its precision-ground components and optimized preload design maintain HIWIN's legendary standards for accuracy throughout millions of operating cycles. The hardened raceways provide consistent performance in continuous industrial operation.

Designed for CNC machinery, semiconductor equipment, and high-speed automation systems, this guideway showcases HIWIN's commitment to reliability. The multi-stage sealing architecture offers superior protection against contaminants, while the thermal-stable construction ensures consistent accuracy in fluctuating temperatures. With HIWIN's global technical support, the EGW20SA delivers the perfect synergy of precision and durability – the hallmark of HIWIN quality trusted by automation professionals worldwide.

②Drawing of EGW20SA
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
③Model Number of EG Series
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
④Construction of EG Series
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal, cap and scraper.
⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.

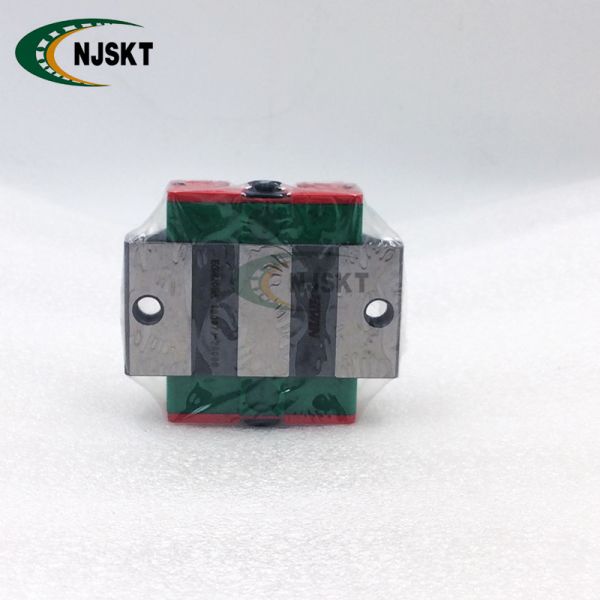

⑥Actual product photo

20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery

⑦Measurement drawing

20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery

20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery

⑧HIWIN series
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
⑨top product recommendation
20mm Size EGW20SA HIWIN Guideway Hiwin Guide Block For CNC Machinery
