EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
Specifications
Brand Name :
HIWIN
Model Number :
EGW15CA
Certification :
DE1924083895474
Place of Origin :
CHINA TAIWAN
MOQ :
10
Price :
1-100 USD
Payment Terms :
T/T,L/C,D/A,D/P,Western Union
Supply Ability :
100000 pcs / per month
Delivery Time :
1-7 work days
Packaging Details :
Small or with carton box, Bulk order with Wooden box
Series :
EG
Model Size(mm) :
15 mm
No. of Blocks per Rail :
1
Rail Mounting Type :
R- Mounting From Top
Rail Length(mm) :
Max 4000mm
Preload Class :
Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload
Material :
SNCM220 Carbon Steel
Dust Protection :
SS-standard
Y -Symmetrical (E1＝E2) First hole dimension :
Y= Symmetrical （E1=E2)
Installation :
Easy
Application :
automation machines
Smoothness :
Smooth
Description
①HIWIN EGW15CA Linear Guideway Hiwin Linear Bearing For Machines
The HIWIN EGW15CA Linear Guideway paired with the Hiwin Linear Bearing is a remarkable solution for a wide array of machines. In the automated production line of small consumer electronics, it plays a pivotal role. The guideway allows for the smooth and precise movement of robotic grippers, ensuring that delicate components like microchips and tiny sensors are picked up and placed accurately during assembly. This not only boosts productivity but also safeguards against costly errors due to misplacement.
In precision machining workshops, when dealing with intricate parts for aerospace or high-end watchmaking, the EGW15CA provides the necessary stability and accuracy. The linear bearing minimizes friction, enabling the cutting tool to glide along the guideway with micron-level precision, carving out complex geometries flawlessly.
For textile machinery, it facilitates the seamless operation of shuttle mechanisms, ensuring that threads are woven evenly and without snags. It's also a go-to option in laboratory automation setups, where sample trays need to be moved precisely for analysis. Overall, the HIWIN EGW15CA Linear Guideway and its associated linear bearing offer reliability, accuracy, and enhanced performance for countless machine applications.

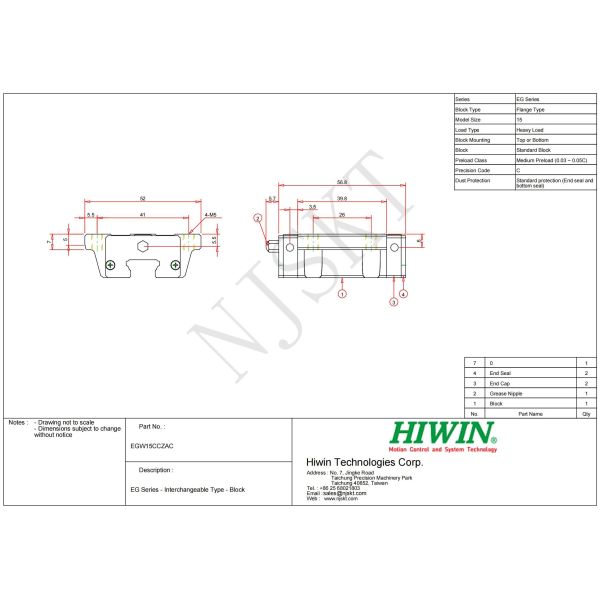

②Drawing of EGW15CA
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
③Model Number of EG Series
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
④Construction of EG Series
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal, cap and scraper.
⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.

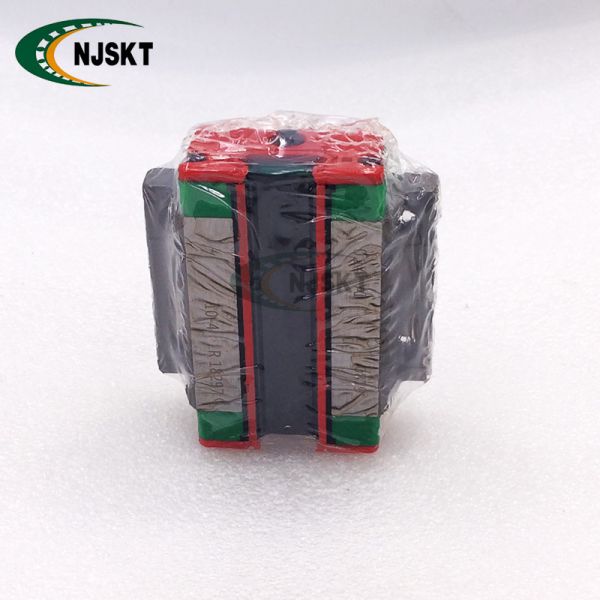

⑥Actual product photo

EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size

⑦Measurement drawing

EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size

EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size

⑧HIWIN series
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
⑨top product recommendation
EGW15CA HIWIN Linear Guide High Accuracy For Machines 15mm Size
